10/00
4-143
Phaser 790/DocuColor 2006
REP 14.5, REP 14.6
Repairs and Adjustments
Initial Issue
8. Remove the Right Inner Cover (Figure 3).

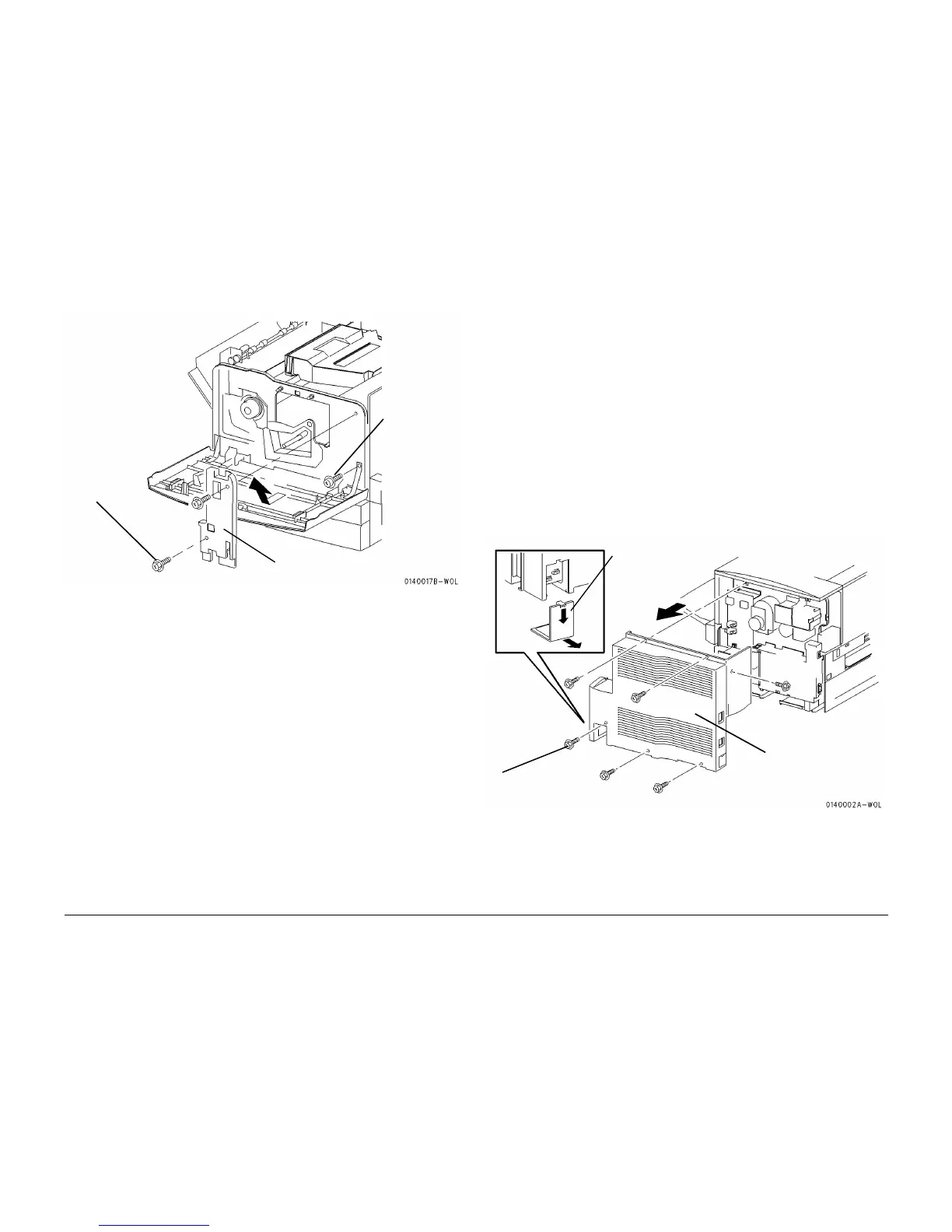

Figure 3 Removing the Right Inner Cover
Replacement
1. Reinstall the Inner Covers in the reverse order of removal.
REP 14.6 Rear Cover
Parts List on PL 1.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Open the Exit Transport Assembly.
3. Remove the Rear Cover (Figure 1).
Replacement
CAUTION
Be careful not to pinch the harness when reinstalling the Rear Cover.
1. Reinstall the Rear Cover in the reverse order of removal.
2. The two screws at the top are also used to secure the Top Cover Assembly. Be sure to
press the Top Cover Assembly down and securely tighten the left screw in order to ensure
that the Top Cover Switch is actuated correctly.
Figure 1 Removing the Rear Cover
1
Remove the
screw securing
the hinge
2
Remove the
two screws
3
Remove the Right
Inner Cover
1
Remove the Option
Hinge Cover
2
Remove the six screws
3
Remove the Rear Cover
To Next Page
