Xerox Phaser 790 User Manual

10/00
4-96
Phaser 790/DocuColor 2006
REP 9.6, REP 9.7
Initial Issue
Repairs and Adjustments
REP 9.6 Waste Toner Sensor
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Locating Rail (REP 9.5).
3. Remove the Waste Toner Sensor (Figure 1).
Replacement
1. Remove all slack from the harness before securing the harness.
2. Reinstall the Waste Toner Sensor in the reverse order of removal.

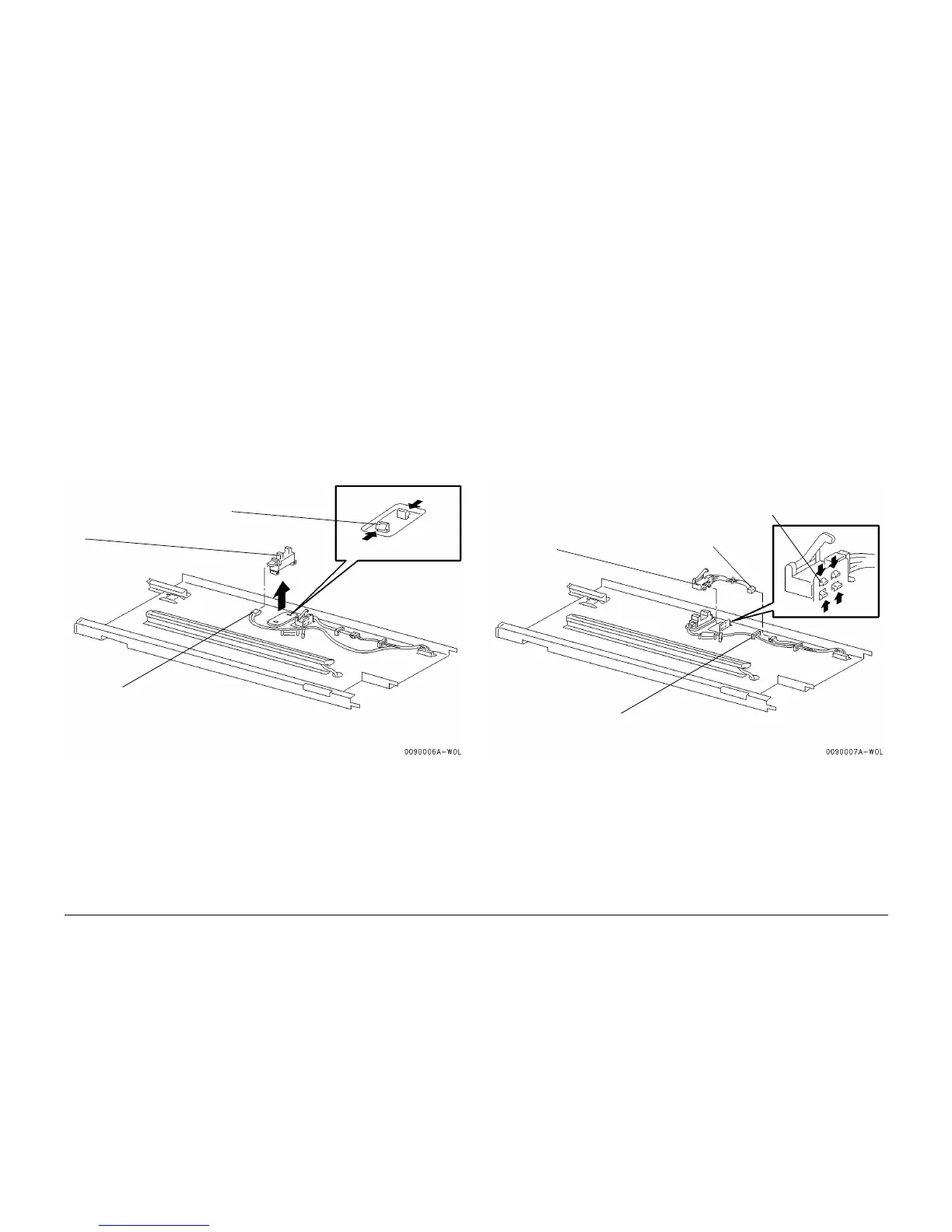

Figure 1 Removing the Waste Toner Sensor
REP 9.7 Toner Box Sensor
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Locating Rail (REP 9.5).
3. Remove the Toner Box Sensor (Figure 1).
Replacement
1. Remove all slack from the harness before securing the harness.
2. Reinstall the Toner Box Sensor in the reverse order of removal.
Figure 1 Removing the Toner Box Sensor
1
Disconnect the connector
2
Unhook the sensor from the
rail
3
Remove the
Waste Toner
Sensor
2
Disconnect the connector
3
Unhook the sensor from
the rail
4
Remove the Toner
Box Sensor
1
Disengage the harness
from the clamp
