Xerox Phaser 790 User Manual

10/00
4-34
Phaser 790/DocuColor 2006
REP 5.10
Initial Issue
Repairs and Adjustments
REP 5.10 ADF Exit Sensor and Exit Tray Interlock
Parts List on PL 17.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the ADF Front Cover and Rear Cover.

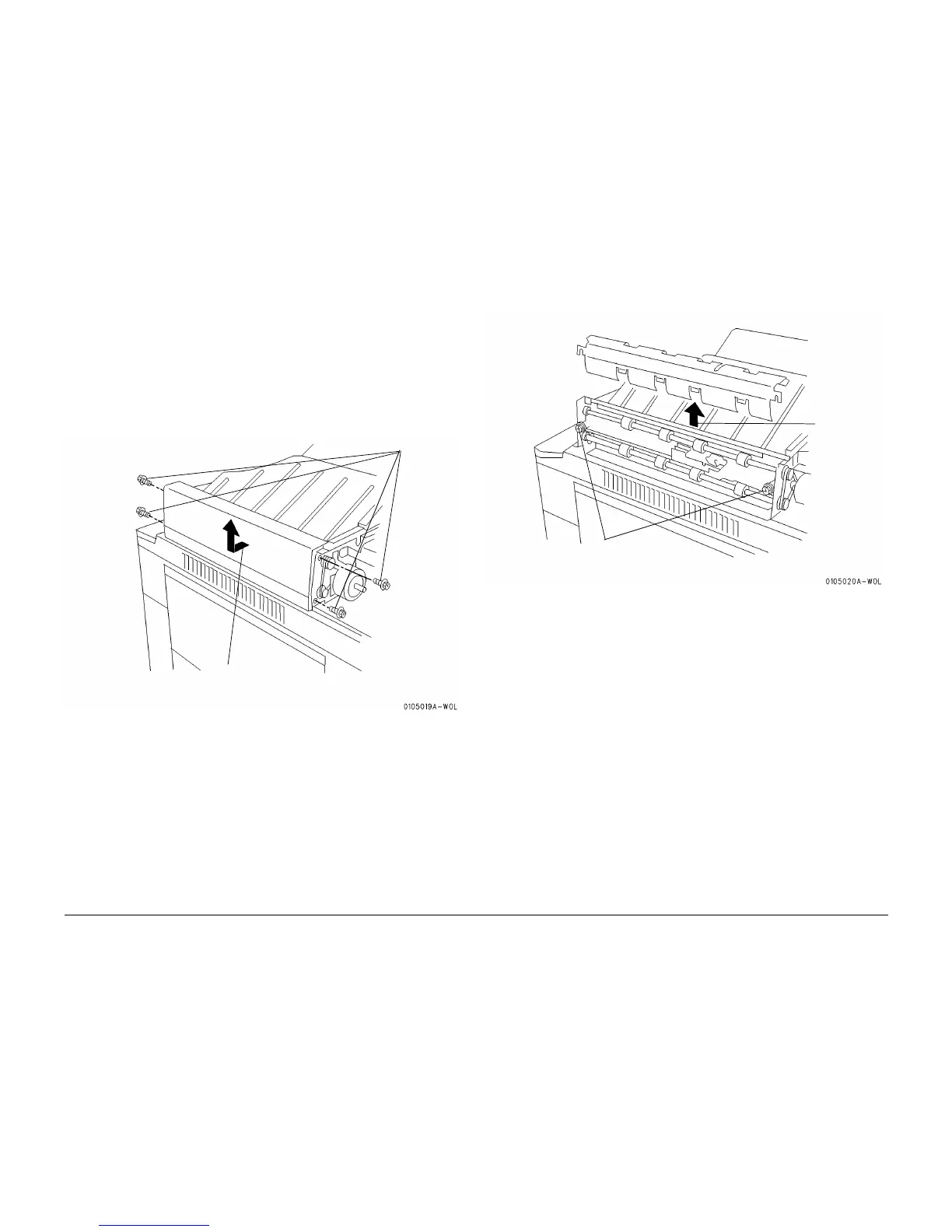

3. Remove the Outer Exit Chute Assembly. (Figure 1)
Figure 1 Removing the Outer Exit Chute Assembly
4. Remove the Exit Chute. (Figure 2)
Figure 2 Removing the Exit Chute
1
Remove four
screws
retaining the
Outer Exit
Chute
Assembly
2
Remove the Outer Exit Chute
Assembly by moving the assembly
in the direction indicated
1
Loosen the two retaining
screws
2
Remove the
Exit Chute by
moving it in the
direction indi-
cated
