Xerox Phaser 790 User Manual

10/00
5-25
Phaser 790/DocuColor 2006
PL 7.1
Parts List
Initial Issue

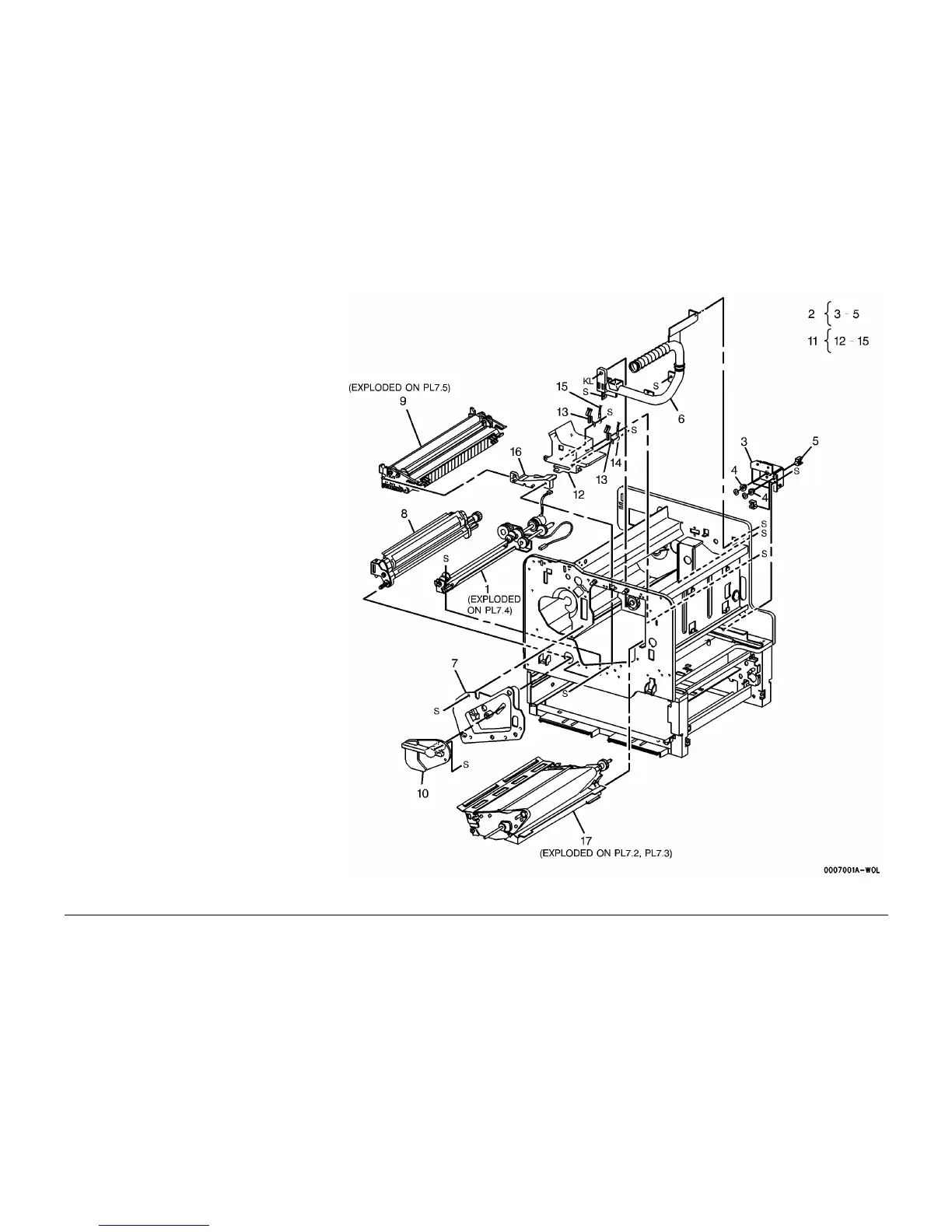

PL 7.1 IBT (1 of 5)
Item Part Description
1 008K91550 BTR 2 Cam Assembly (REP 9.19)
2 – BTR Rear Bracket Assembly (Not
Spared)
3 – Rear Bracket (Not Spared)
4 – Rear Bearing (Not Spared)
5 – Clamp (Not Spared)
6 006K85500 Auger (REP 9.20)
7 802K12301 Panel
8 042K92160 Belt Cleaner (REP 9.17)
9 802K14462 BTR 2 Assembly (REP 9.18)
10 011E09640 Tension Lever (REP 9.15)
11 015K43080 IBT Rear Bracket Assembly
12 – Rear Bracket (P/O PL 7.1 Item 11)
13 – Contact Spring (P/O PL 7.1 Item
11)
14 – BTR 1 Contact Wire (P/O PL 7.1
Item 11)
15 – BTR 2 Contact Wire (P/O PL 7.1
Item 11)
16 015K43090 IBT Front Bracket
17 802K12990 IBT Assembly (REP 9.16)
