10/00
4-114
Phaser 790/DocuColor 2006
REP 10.3
Initial Issue
Repairs and Adjustments
REP 10.3 Upper Guide Assembly
Parts List on PL 8.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Upper Guide Assembly (Figure 1).
Replacement
1. Reinstall the Upper Guide Assembly in the reverse order of removal.

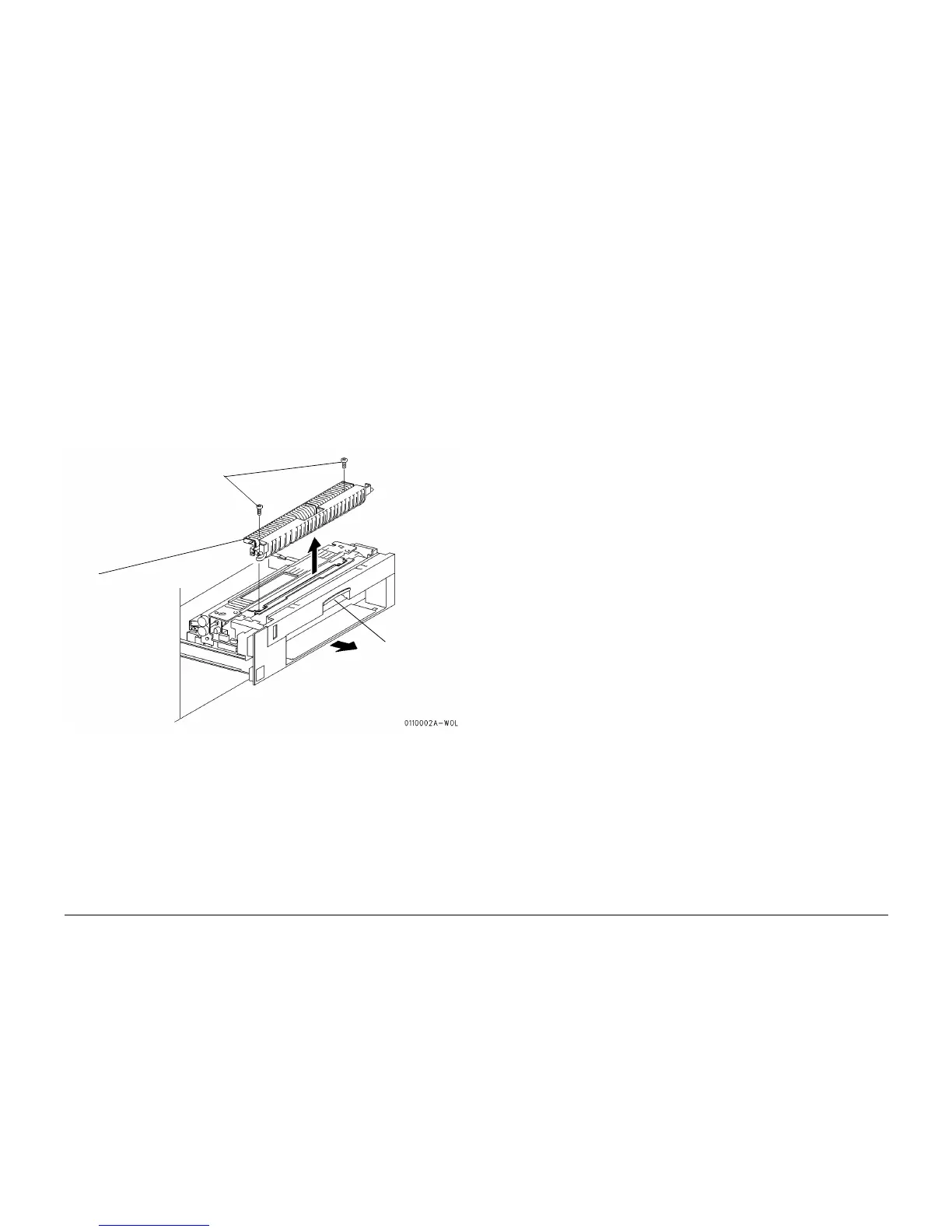

Figure 1 Removing the Upper Guide Assembly
2
Remove the Screws
3
Remove the
Upper Guide
Assembly
1
Open the Fuser
Assembly
To Next Page
