Xerox Phaser 790 User Manual

10/00
5-61
Phaser 790/DocuColor 2006
PL 15.7
Parts List
Initial Issue

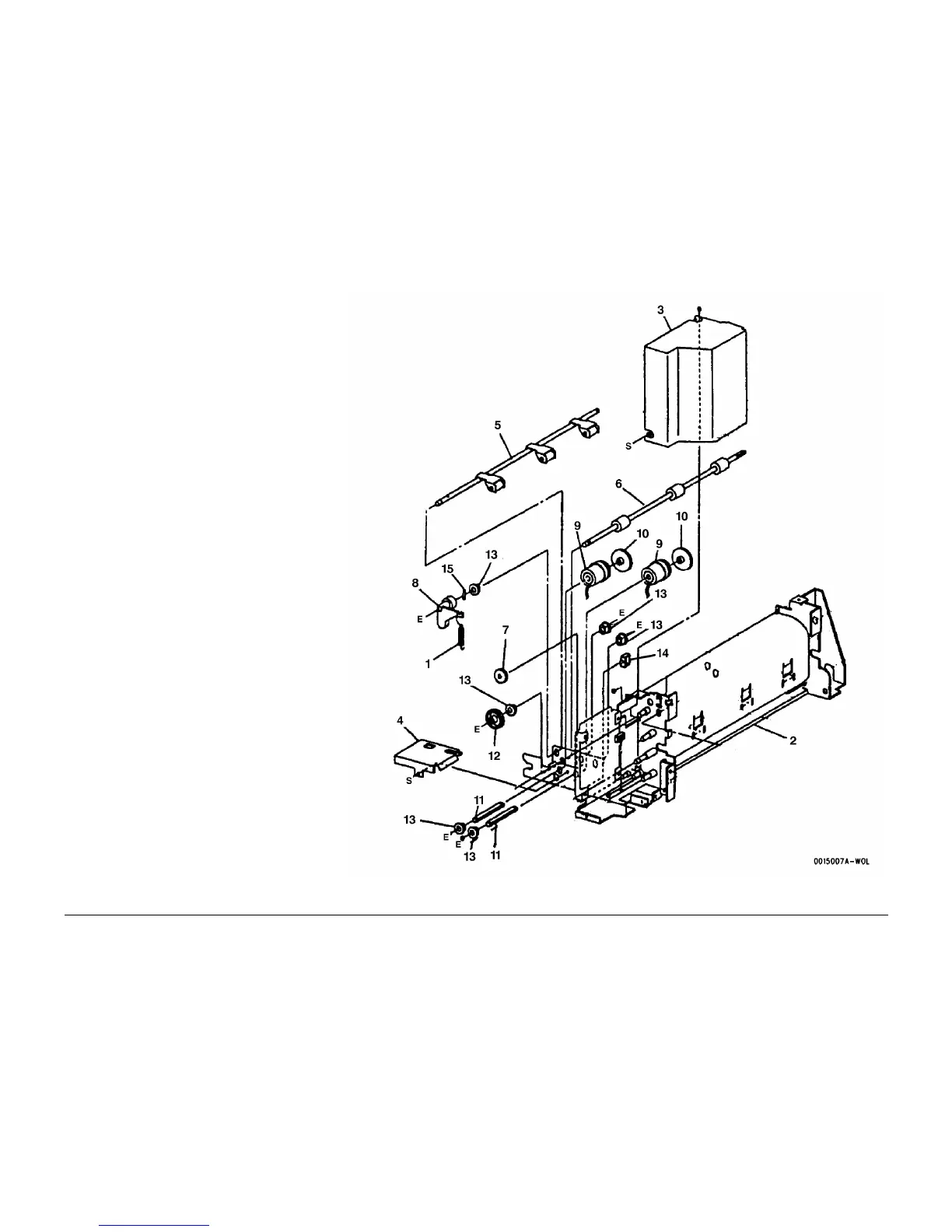

PL 15.7 Duplex Assembly (7 of 7)
Item Part Description
1 – Spring (P/O PL 15.5 Item 1)
2 – Turn Baffle (P/O PL 15.5 Item 1)
3 802E12211 Rear Inverter Cover
4 – Clutch Cover (P/O PL 15.5 Item 1)
5 – Pinch Roll (P/O PL 15.5 Item 1)
6 022K57500 Inverter Roll
7 – Gear (P/O PL 15.5 Item 1)
8 – Link (P/O PL 15.5 Item 1)
9 121K23790 Reverse Clutch, Foward Clutch
10 – Gear (P/O PL 15.5 Item 1)
11 – Shaft (P/O PL 15.5 Item 1)
12 – Gear (P/O PL 15.5 Item 1)
13 – Bearing (P/O PL 15.5 Item 1)
14 – Clamp (P/O PL 15.5 Item 1)
15 – Pinch Roll Shaft Pin (P/O PL 15.5
Item 1)
