Xerox Phaser 790 User Manual

10/00
4-82
Phaser 790/DocuColor 2006
REP 8.34
Initial Issue
Repairs and Adjustments
REP 8.34 Exit Roll
Parts List on PL 15.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Inverter Upper Assembly. (REP 8.33)
3. Remove the Exit Cover. (Figure 1)

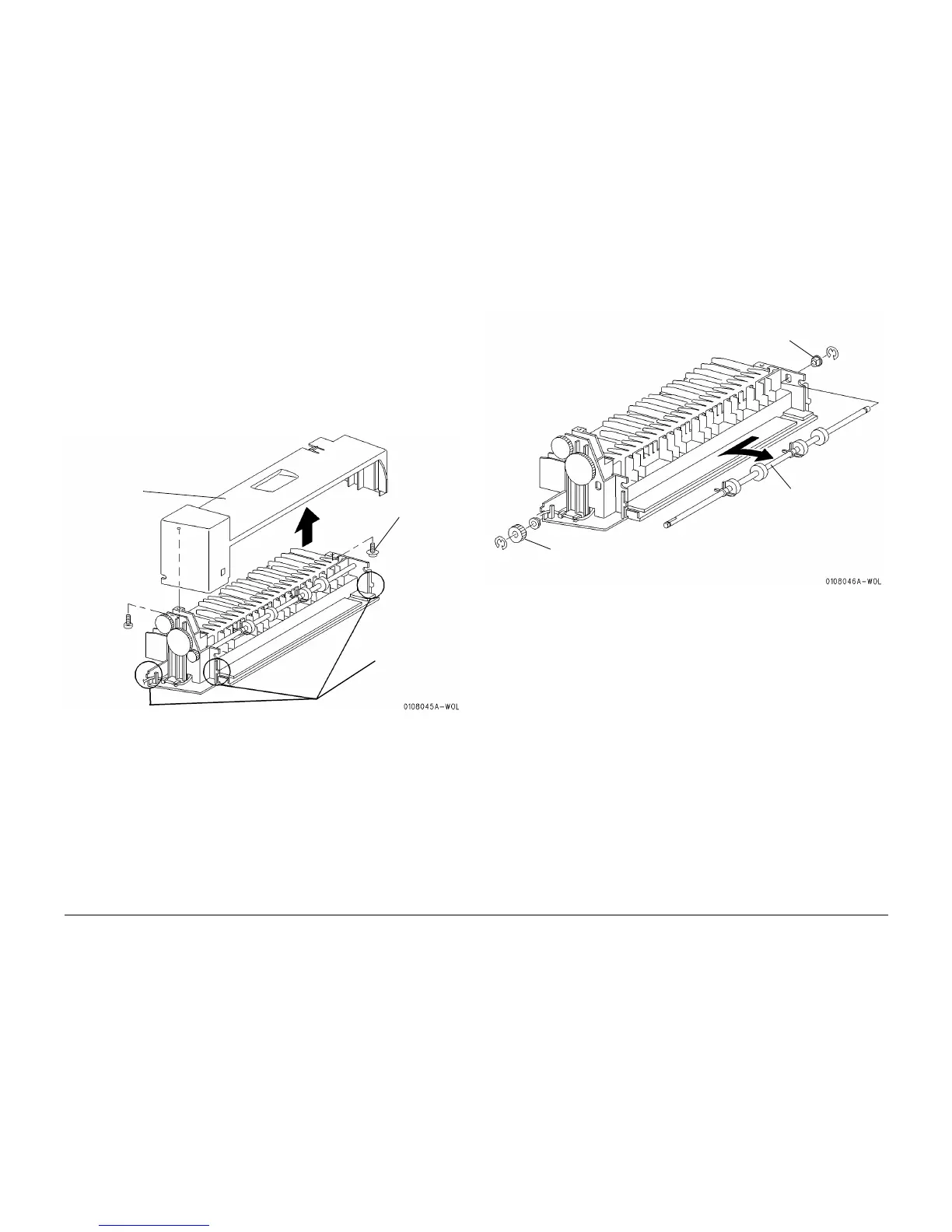

Figure 1 Removing the Exit Cover
4. Remove the Exit Roll. (Figure 2)
Figure 2 Removing the Exit Roll
Replacement
1. Perform the removal procedure in reverse.
1
Remove the
two screws
(one each
side)
2
Release the
cover from the
retaining tab
3
Remove the
cover
1
Remove the E-ring,
gear and bearing
2
Remove the E-ring
and bearing
3
Remove the Exit
Roll
