Xerox Phaser 790 User Manual

10/00
4-137
Phaser 790/DocuColor 2006
REP 11.14, REP 11.15
Repairs and Adjustments
Initial Issue
REP 11.14 Bin Tray(s)
Parts List on PL 19.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Front Cover.
3. Disconnect the Front Bin Cam Spring.
4. Disengage the bottom of the Front Bin Cam from its retaining clip.
5. Remove the Bin Tray (Figure 1).

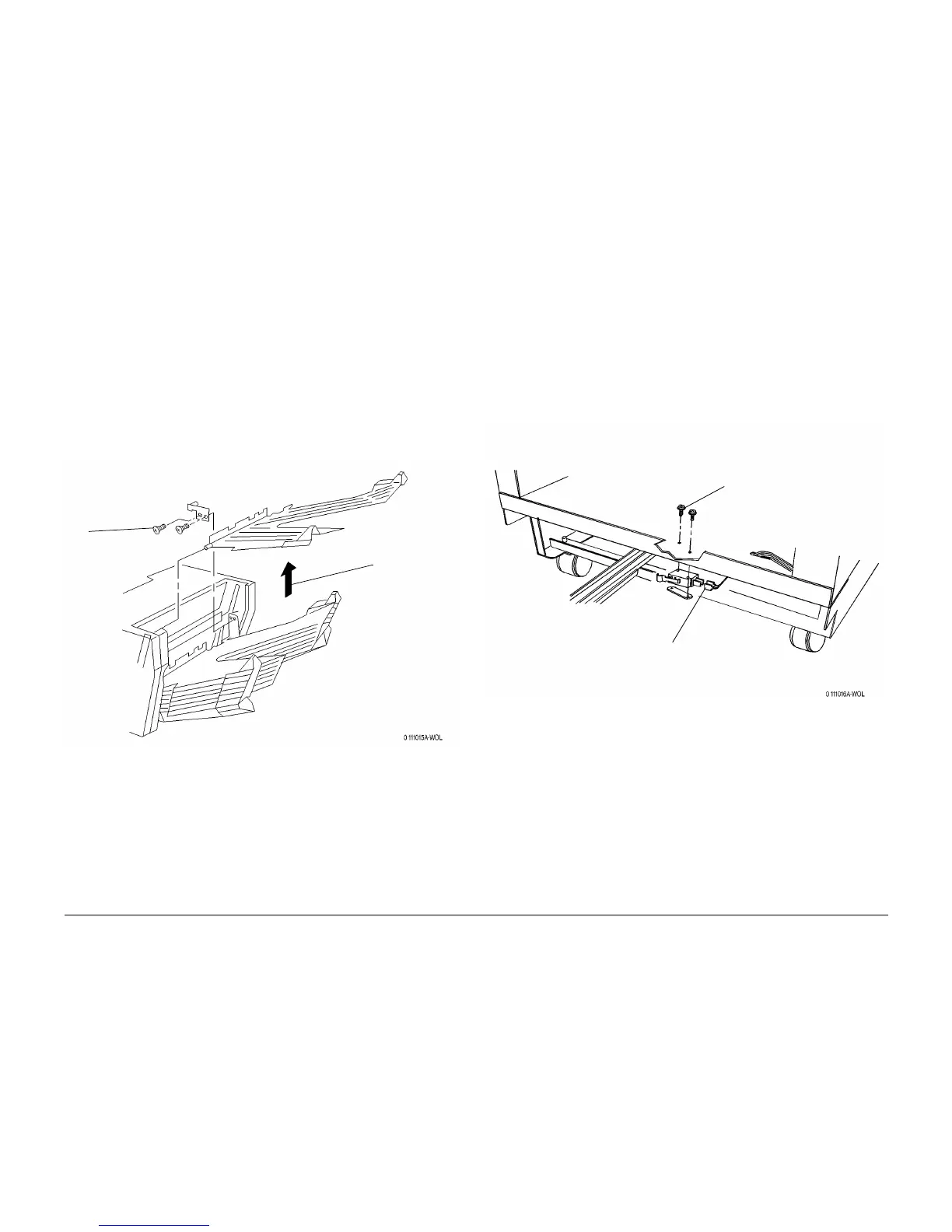

Figure 1 Removing the Bin Trays
Replacement
1. Perform the procedure for removal in reverse.
2. Perform a Sorter Bin Cam Position Adjustment (ADJ 11.1) on the Front Bin Cam.
REP 11.15 Docking Interlock
Parts List on PL 19.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Docking Interlock (Figure 1).
Figure 1 Removing the Docking Interlock
Replacement
1. Perform the procedure for removal in reverse.
1
Remove the
screws (2) and
the Frame Top
from the Front
Frame
2
Remove the Bin
Tray (s)
1
Remove the screws (2)
2
Disconnect the wires
and remove the
Docking Interlock
