Phaser 790/DocuColor 2006
REP 8.4
Initial Issue
Repairs and Adjustments
REP 8.4 Turn Clutch
Parts List on PL 3.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover. (REP 14.6)
3. Remove the Turn Roll. (REP 8.1)
WARNING
Use extreme care when working in the vicinity of the Option Bracket. The edges of the
Option Bracket may be very sharp and could cause serious injury.
4. Disconnect the Turn Clutch. (Figure 1)

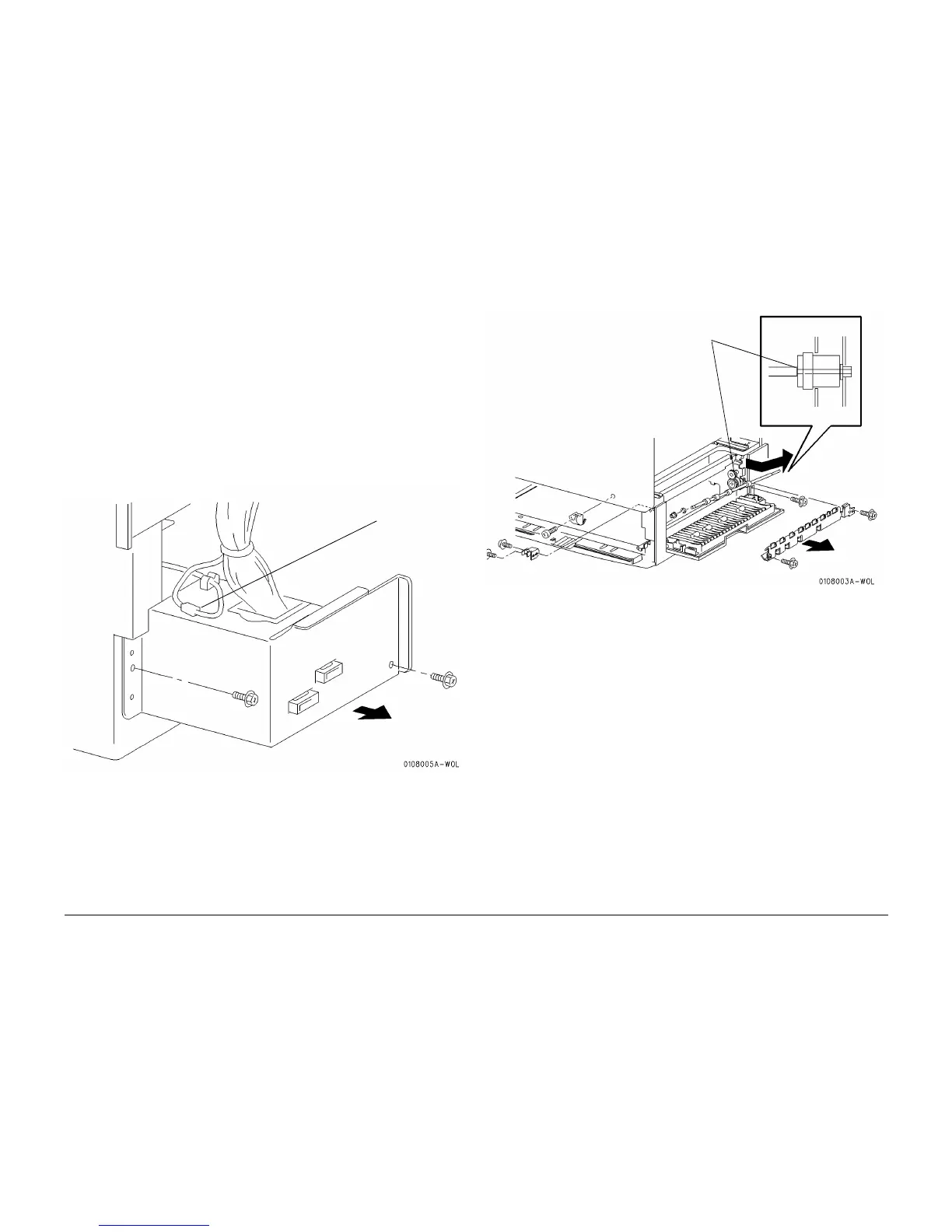

Figure 1 Disconnecting the Turn Clutch
5. Remove the Turn Clutch. (Figure 2)
Figure 2 Removing the Turn Clutch
Replacement
1. Perform the procedure for removal in reverse.
1
Disconnect the
connector
1
The Turn Clutch is retained by
the Turn Roll. After the Turn
Roll is removed, remove the
Turn Clutch
