Xerox Phaser 790 User Manual

10/00
5-33
Phaser 790/DocuColor 2006
PL 8.4
Parts List
Initial Issue

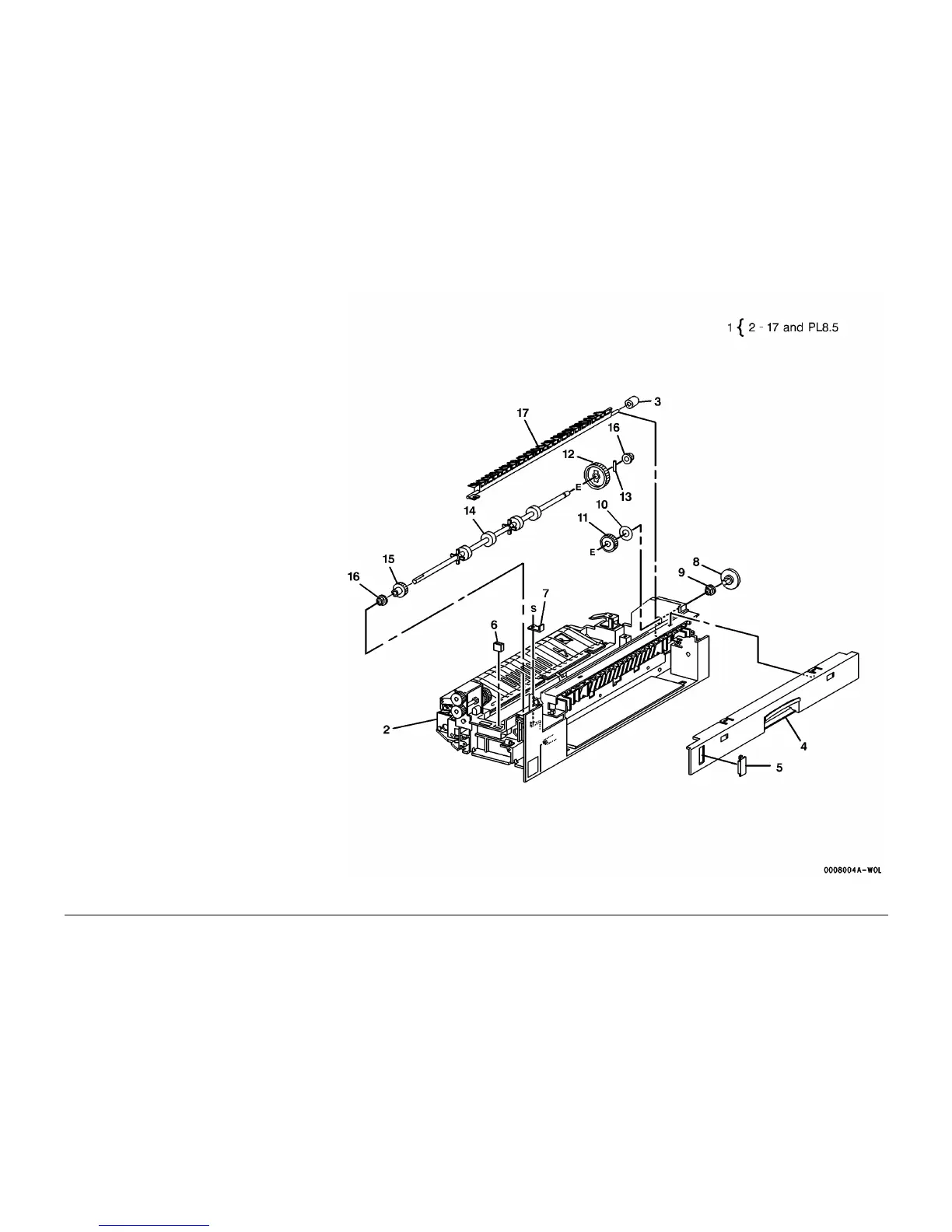

PL 8.4 Fusing (4 of 7)
Item Part Description
1 050K43340 Fuser Tray Assembly 220v (ADJ
10.1)
– 050K43330 Fuser Tray Assembly 110v (ADJ
10.1)
2 – Fuser Tray Subassmebly (P/O PL
8.4 Item 1)
3 004E09760 Damper
4 011E10200 Fuser Tray Handle
5 – Fuser Tray Cap (P/O PL 8.4 Item 1)
6 – Connector (P/O PL 8.4 Item 1)
7 – Rear Exchange Stopper (P/O PL
8.4 Item 1)
8 003E39791 Fuser Knob
9 – Fuser Knob Bearing (P/O PL 8.4
Item 1)
10 – Fuser Knob Bearing (P/O PL 8.4
Item 1)
11 007E51650 Fuser Knob Gear
12 007E51660 Exit Knob Gear
13 – Exit Roll Pin (P/O PL 8.4 Item 1)
14 059K14430 Exit Roll (REP 10.17)
15 007E60300 Exit Gear
16 – Exit Bearing (P/O PL 8.4 Item 1)
17 054E10561 Exchange Chute (REP 10.13)
