10/00
5-66
Phaser 790/DocuColor 2006
PL 16.5
Initial Issue
Parts List

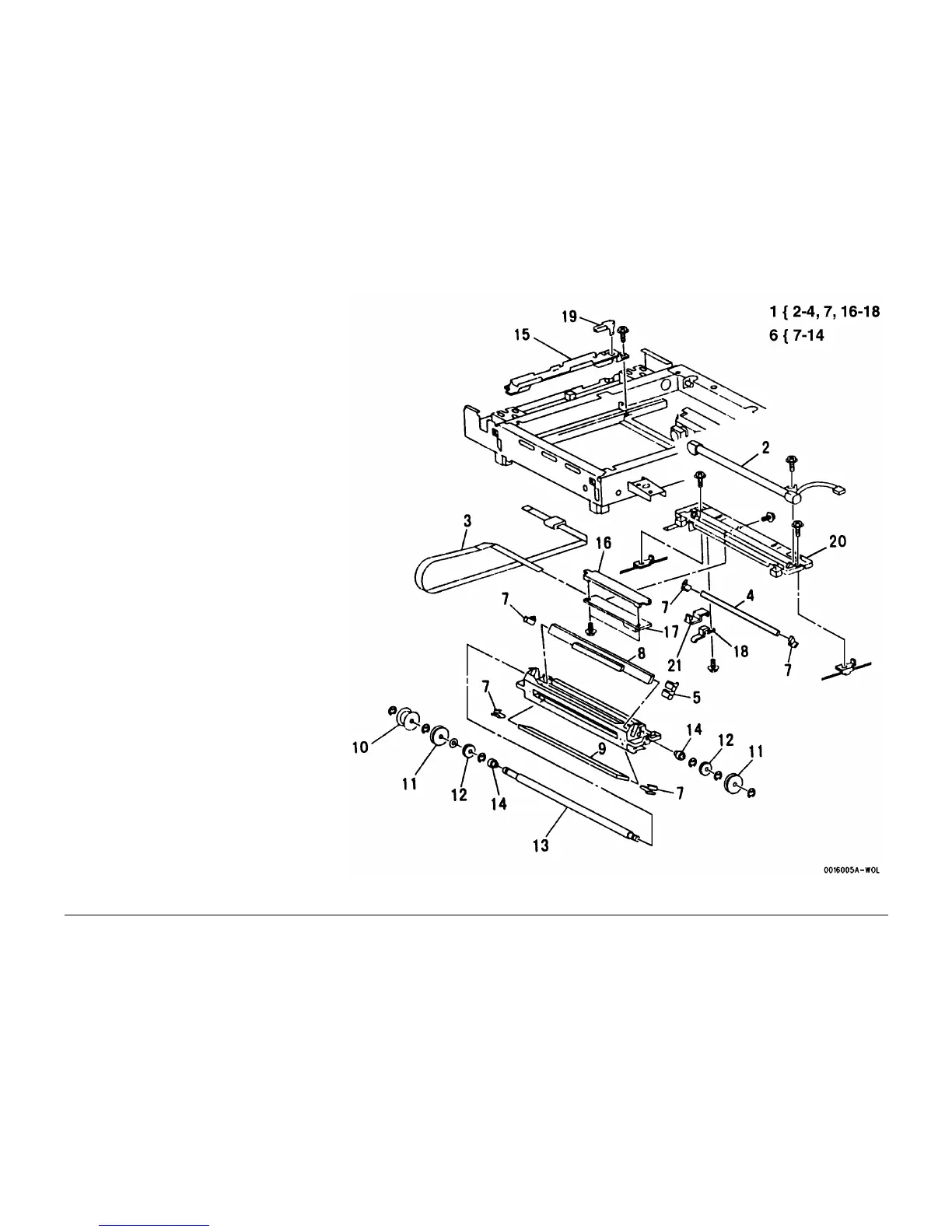

PL 16.5 Full Rate Carriage and Half
Rate Carriage
Item Part Description
1 041K94070 Full Rate Carriage Assembly (REP
6.21 ADJ 6.2)
2 122E91950 Lamp (REP 6.20)
3 117E19831 Ribbon Cable
4 – No. 1 Mirror (P/O PL 16.5 Item 1)
5 – Clip (Not Spared)
6 041K94100 Half Rate Carriage Assembly (ADJ
6.2)
7 – Clip (P/O PL 16.5 Item 1)
8 – No. 2 Mirror (P/O PL 16.5 Item 6)
9 – No. 3 Mirror (P/O PL 16.5 Item 6)
10 – Pulley (P/O PL 16.5 Item 6)
11 – Pulley (P/O PL 16.5 Item 6)
12 – Pulley (P/O PL 16.5 Item 6)
13 – Shaft (P/O PL 16.5 Item 6)
14 004E06560 Bearing
15 – Guide (Not Spared)
16 – Insulator (P/O PL 16.5 Item 1)
17 105E10010 FLPS PWB (REP 6.22)
18 – Guide (P/O PL 16.5 Item 1)
19 – Clamp (Not Spared)
20 – Carriage (Not Spared)
21 – Clamp (Not Spared)
To Next Page
