10/00
4-40
Phaser 790/DocuColor 2006
REP 6.7
Initial Issue
Repairs and Adjustments
REP 6.7 Registration Sensor
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Left Cover (REP 6.3).
3. Remove the Rear Cover (REP 6.4)
4. Remove the bracket, containing the power receptacles. (Figure 1)

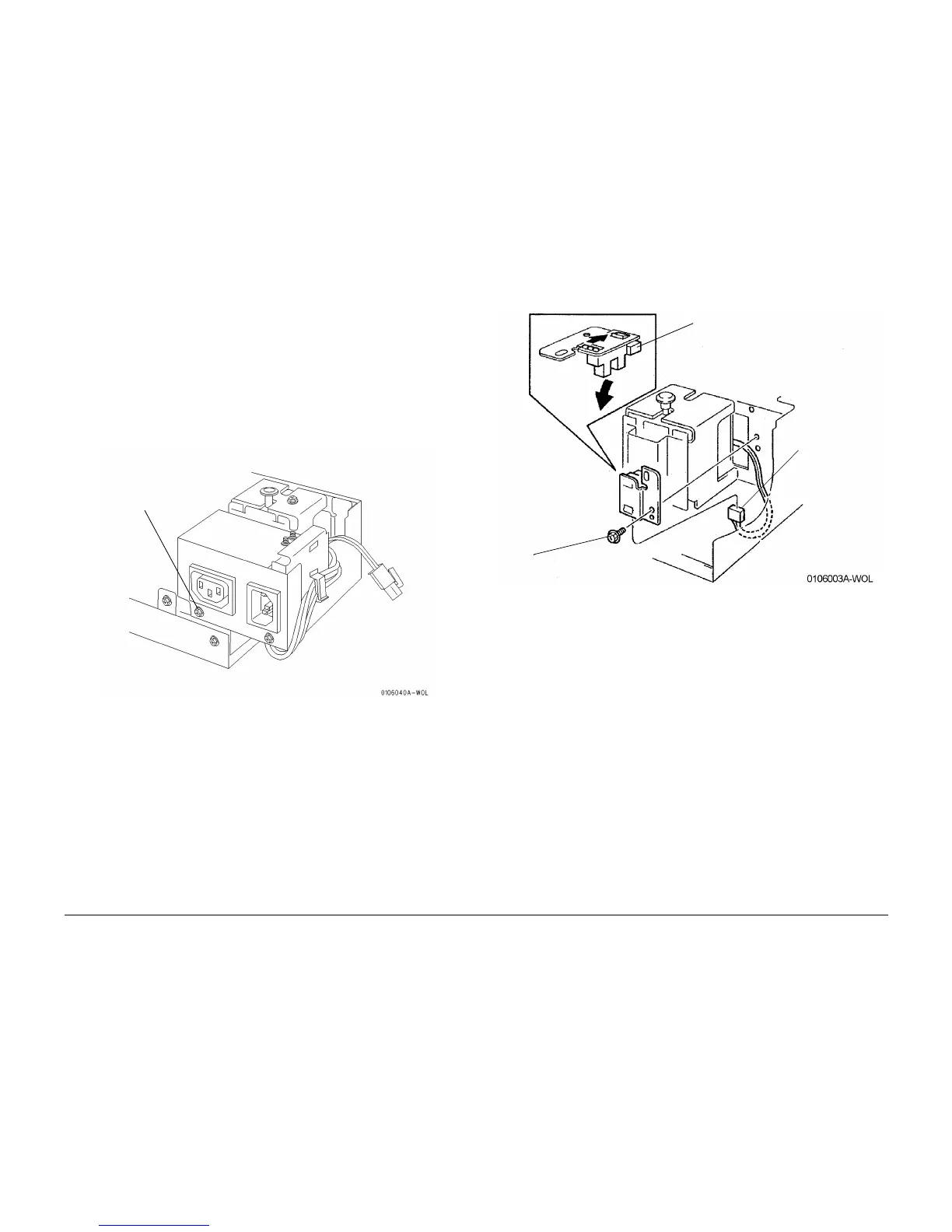

Figure 1 Removing the Bracket and Power Receptacles
5. Remove the Registration Sensor (Figure 2).
Figure 2 Removing the Registration Sensor
Replacement
1. Perform the procedure for removal in reverse.
1
Remove the screws
(2) and the bracket,
containing the power
receptacles
2
Disconnect the
connector
1
Remove the screw
3
Remove the Registration
Sensor
To Next Page
