Xerox Phaser 790 User Manual

10/00
4-69
Phaser 790/DocuColor 2006
REP 8.15, REP 8.16
Repairs and Adjustments
Initial Issue
REP 8.15 Preregistration Clutch
Parts List on PL 4.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bypass Tray/Registration Assembly. (REP 8.6)
3. Remove the Main Paper Handling Assembly. (REP 8.9)
4. Remove the Preregistration Clutch. (Figure 1)

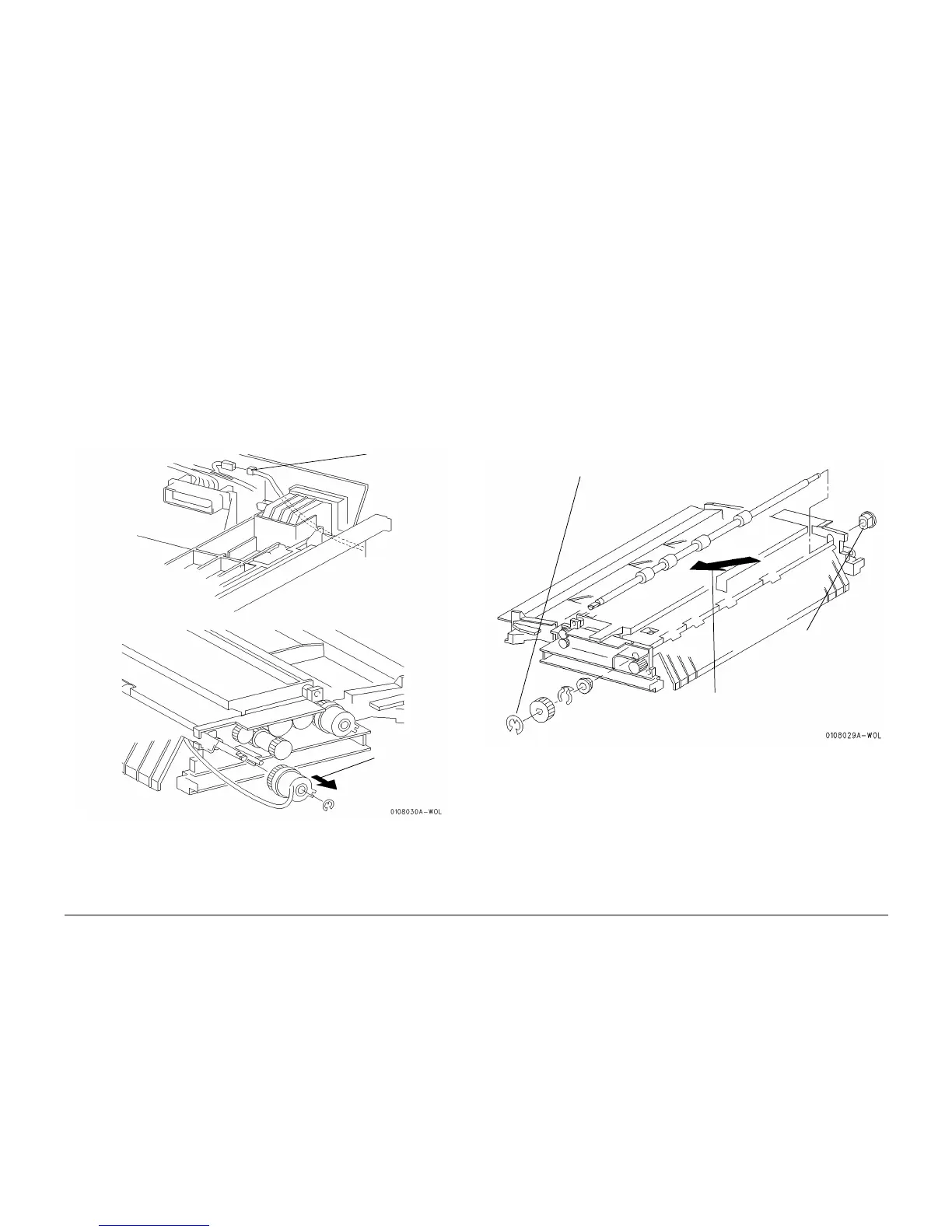

Figure 1 Removing the Preregistration Clutch
Replacement
1. Perform the procedure for removal in reverse.
REP 8.16 Preregistration Roll
Parts List on PL 4.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bypass Tray/Registration Assembly. (REP 8.6)
3. Remove the Main Paper Handling Frame Assembly. (REP 8.9)
4. Remove the Preregistration Clutch. (REP 8.15)
5. Remove the Preregistration Roll. (Figure 1)
Figure 1 Removing the Preregistration Roll
Replacement
1. Perform the procedure for removal in reverse.
1
Disconnect the
connector and
release the wires
from the clip
2
Remove the E-
ring and the
Preregistration
Clutch
1
Remove the
Bearing
2
Remove the E-ring, gear,
clip and bearing
3
Lift the front of the Preregistration
Roll, remove the Roll
