Xerox Phaser 790 User Manual

10/00
5-9
Phaser 790/DocuColor 2006
PL 1.3
Parts List
Initial Issue

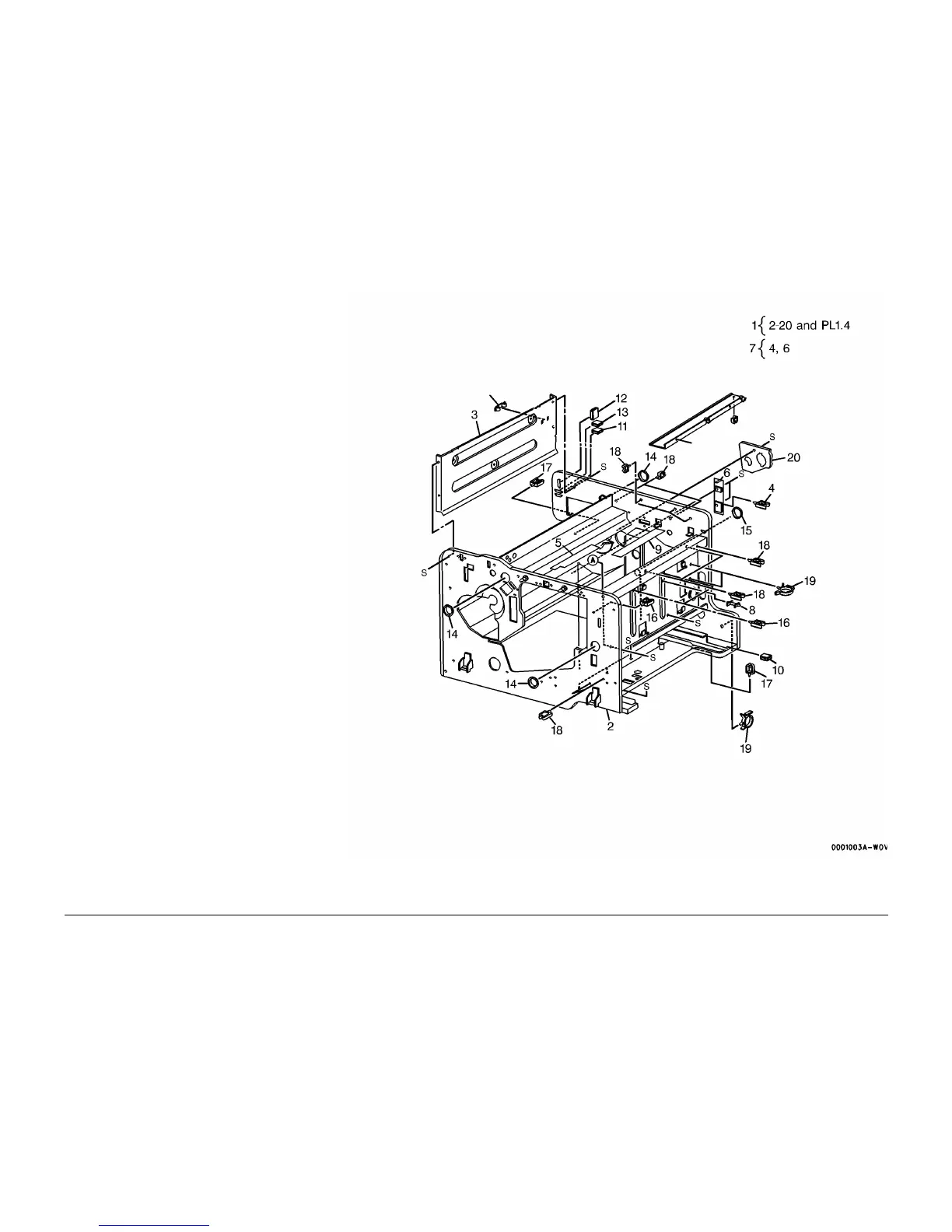

PL 1.3 Base Frame (1 of 2)
Item Part Description
1 – Base Frame Hi Assembly (Not
Spared)
2 – Base Frame Assembly (Not
Spared)
3 – Developer Tie Plate (Not Spared)
(REP 9.14)
4 – Clamp (Not Spared)
5 – Developer Outer Seal (Not Spared)
6 – DL Bracket (Not Spared)
7 – DL Bracket Assembly (Not Spared)
8 – PWB Support (Not Spared)
9 – Developer Seal (Not Spared)
10 – Connector-5P (Not Spared)
11 – Connector-3P (Not Spared)
12 – Connector-8P (Not Spared)
13 – Connector-4P (Not Spared)
14 – Bushing (Not Spared)
15 – Bushing (Not Spared)
16 – Frame Clamp-L (Not Spared)
17 – Frame Clamp-M (Not Spared)
18 – Frame Clamp-U (Not Spared)
19 – Clamp (Not Spared)
20 – Rear Plate (Not Spared)
