10/00
5-67
Phaser 790/DocuColor 2006
PL 16.6
Parts List
Initial Issue

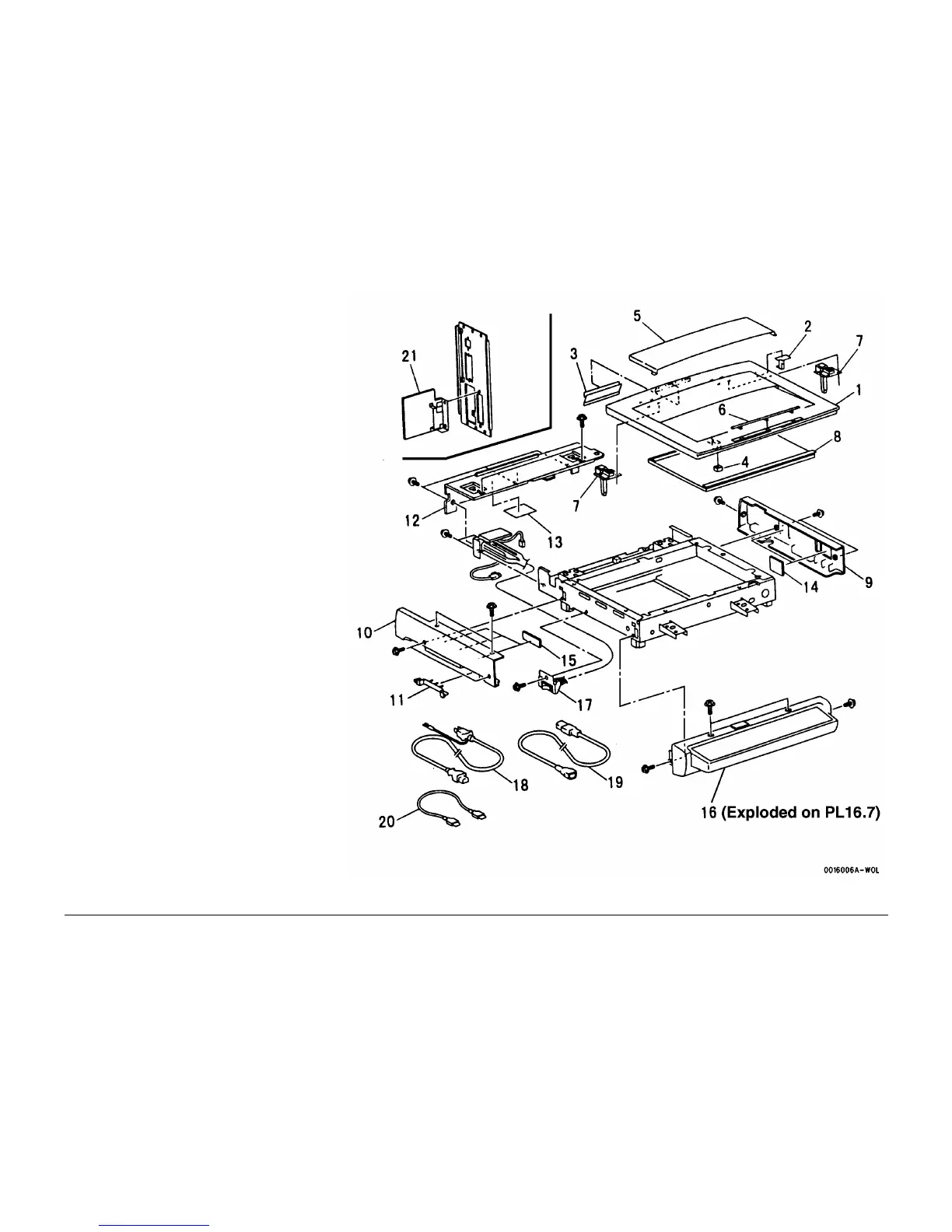

PL 16.6 Top Cover and Control Panel
Item Part Description
1 802K14870 Platen Cover
2 – Actuator (Not Spared)
3 – Stopper (Not Spared)
4 – Magnet (Not Spared)
5 048E18040 Pocket Cover
6 – Handle (Not Spared)
7 003E52460 Hinge
8 004K92440 Cushion
9 802K13810 Right Cover (REP 6.2)
10 802K13821 Left Cover (REP 6.3)
11 – Side Cover (Not Spared)
12 802K13831 Rear Cover (REP 6.4)
13 – Sheet (Not Spared)
14 – Filter (Not Spared)
15 – Filter (Not Spared)
16 802K16902 Control Panel Assembly 110v (REP
6.23)
– 802K16912 Control Panel Assembly 220v (REP
6.23)
17 162K56731 AC Switch/Harness
18 117K31200 Power Cord 220v
19 – Power Cord 110v (Not Spared)
20 162K60280 Cable 1.0m
21 – I/F PWB (Not Spared)
