10/00
4-42
Phaser 790/DocuColor 2006
REP 6.10
Initial Issue
Repairs and Adjustments
REP 6.10 APS Sensor
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power
switch on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Platen Glass (REP 6.1).
3. Remove the Cover (Figure 1).

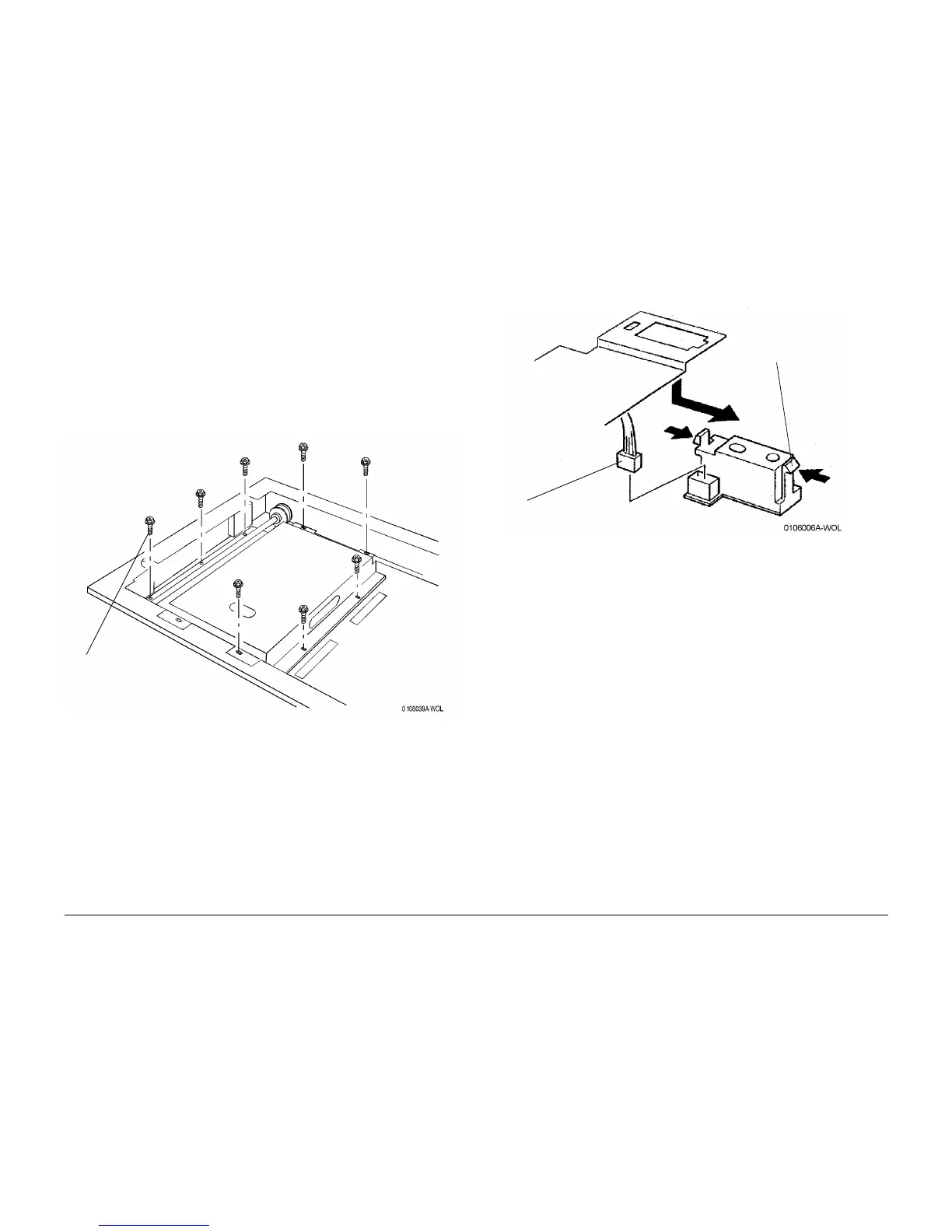

Figure 1 Removing the Cover
4. Remove the APS Sensor (Figure 2).
Figure 2 Removing the APS Sensor
Replacement
1. Perform the procedure for removal in reverse.
1
Remove the screws (8)
and the cover
1
Release the locking
tabs and remove the
APS Sensor
2
Disconnect the connector
To Next Page
