Xerox Phaser 790 User Manual

10/00
5-26
Phaser 790/DocuColor 2006
PL 7.2
Initial Issue
Parts List

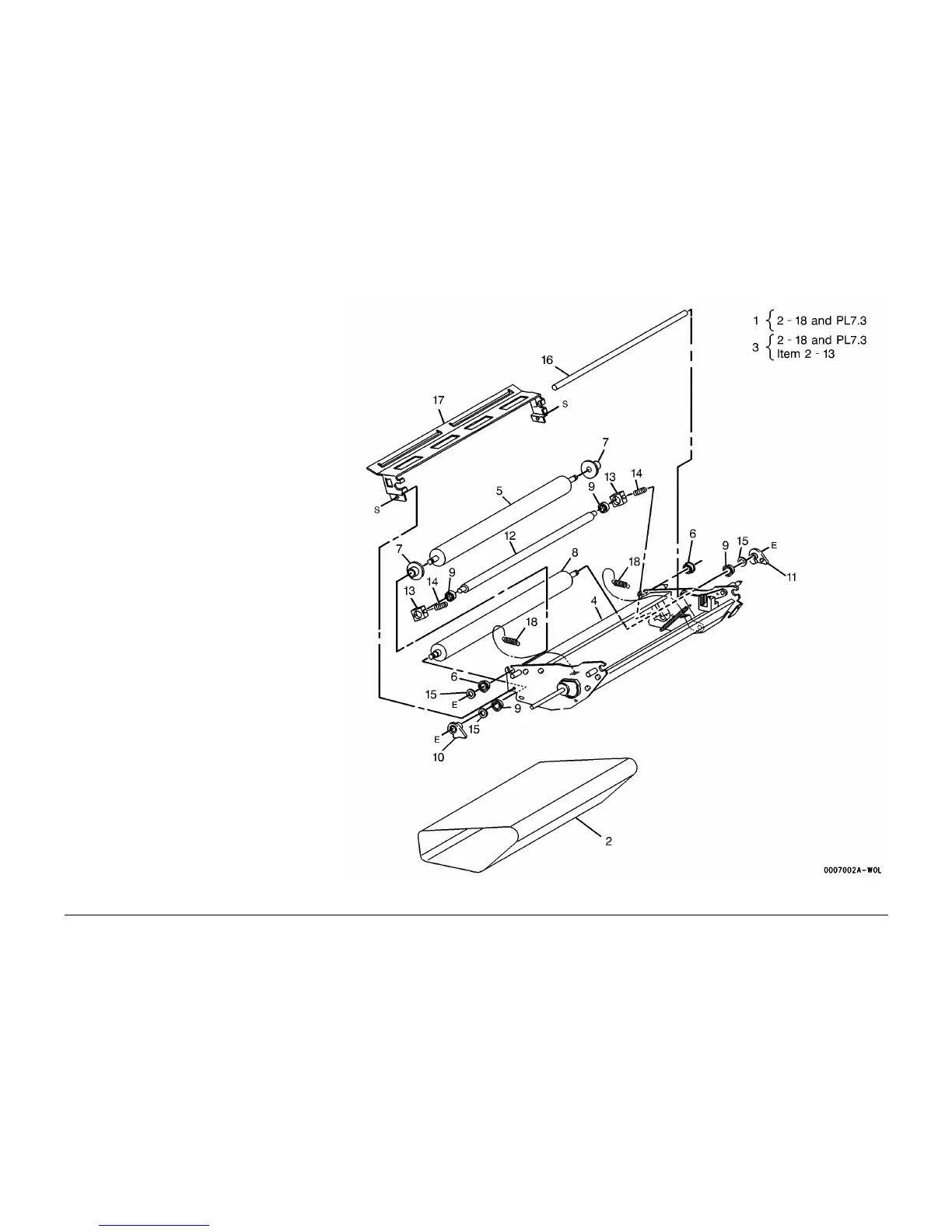

PL 7.2 IBT (2 of 5)
Item Part Description
1 802K25990 IBT Assembly (REP 9.16)
2 064K91350 IBT Belt (REP 9.21)
3 – Transfer Mechanism Assembly
(P/O PL 7.2 Item 1)
4 – IBT Frame (P/O PL 7.2 Item 1 )
5 – IBT Idler Roll (P/O PL 7.2 Item 1)
6 – Bearing (P/O PL 7.2 Item 1)
7 – Idler Roll Flange (P/O PL 7.2 Item
1)
8 – Backup Roll (P/O PL 7.2 Item 1)
9 – Contact Roll Bearing (P/O PL 7.2
Item 1)
10 – Front Bearing Holder (P/O PL 7.2
Item 1)
11 – Rear Bearing Holder (P/O PL 7.2
Item 1)
12 – Contact Roll (P/O PL 7.2 Item 1)
13 – Bearing Holder (P/O PL 7.2 Item 1)
14 – Contact Roll Spring (P/O PL 7.2
Item 1)
15 – Spacer (P/O PL 7.2 Item 1)
16 – Shaft (P/O PL 7.2 Item 1)
17 – Rail (P/O PL 7.2 Item 1)
18 – Retard Spring (P/O PL 7.2 Item 1)
