Xerox Phaser 790 User Manual

10/00
4-139
Phaser 790/DocuColor 2006
REP 14.1, REP 14.2
Repairs and Adjustments
Initial Issue
REP 14.1 Front Cover Assembly
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Open the Tray 1 Assembly.
3. Remove the Front Cover Assembly (Figure 1).
Replacement
1. Reinstall the Front Cover Assembly in the reverse order of removal.

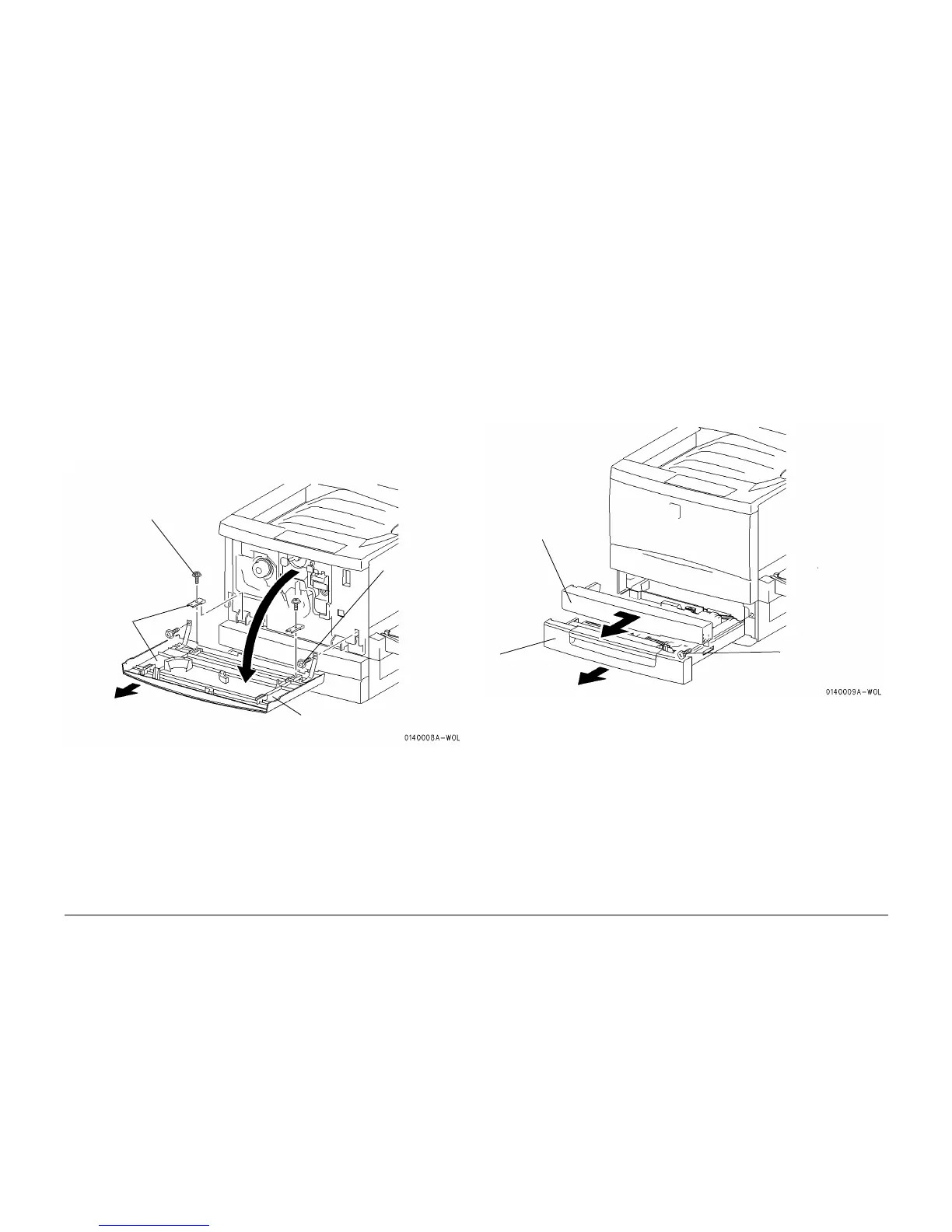

Figure 1 Removing the Front Cover Assembly
REP 14.2 Front Mid Cover
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Front Mid Cover (Figure 1).
Figure 1 Removing the Front Mid Cover
1
Open the Front
Cover Assembly
2
Remove the
two screws
3
Remove the
two screws
4
Remove the
Front Cover
Assembly and
Hinge Plates
1
Open the
Tray 1
Assembly
2
Remove the
knurled screw
3
Slide the cover
toward the right, and
then remove the Front
Mid Cover
