Xerox Phaser 790 User Manual

10/00
5-59
Phaser 790/DocuColor 2006
PL 15.5
Parts List
Initial Issue

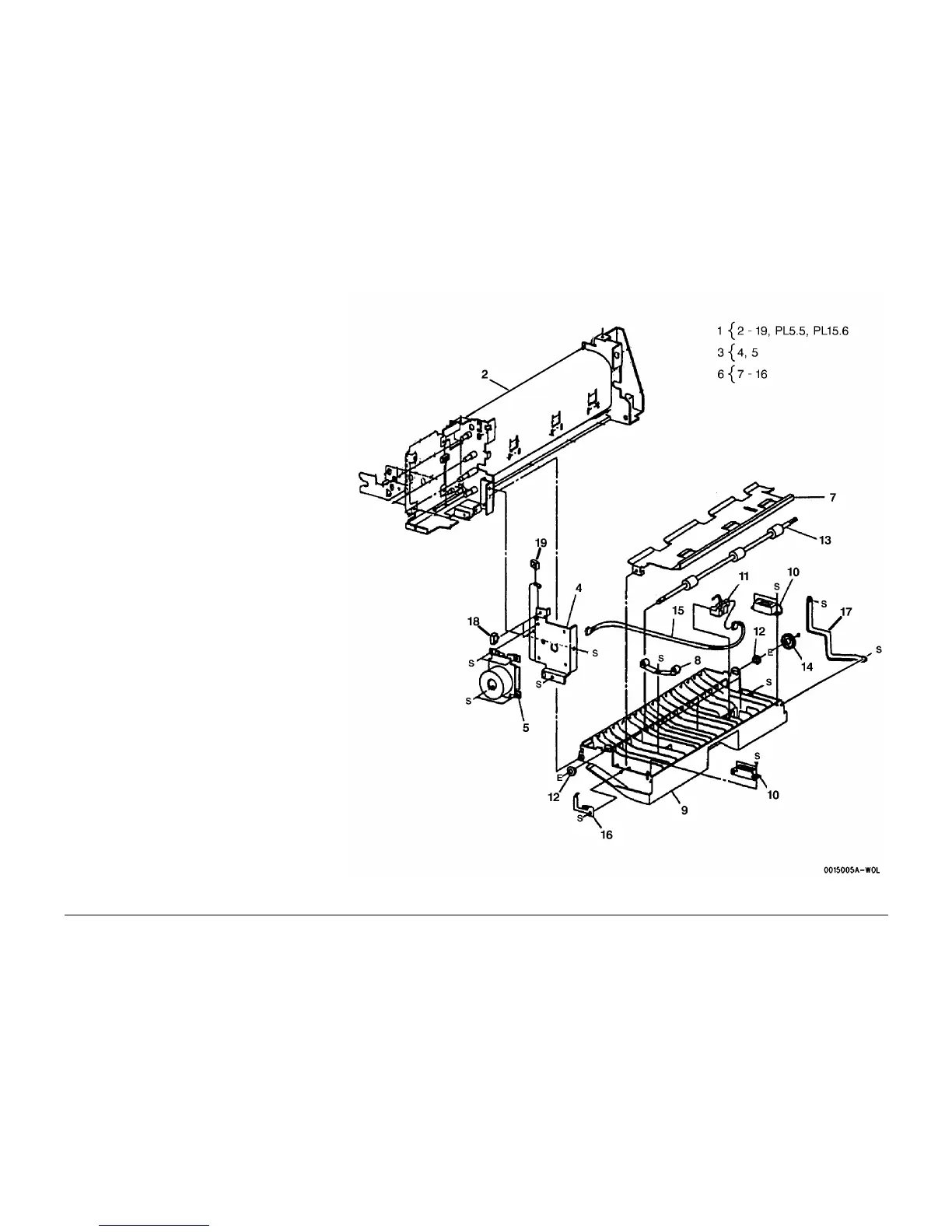

PL 15.5 Duplex Assembly (5 of 7)
Item Part Description
1 059K19120 Inverter Lower Assembly (REP
8.35)
2 – Turn Baffle (P/O PL 15.5 Item 1)
3 – Inverter Motor Assembly (P/O PL
15.5 Item 1)
4 – Bracket (P/O PL 15.5 Item 1)
5 127K29160 Inverter Motor (REP 8.36)
6 – Invert Chute Assembly (P/O PL
15.5 Item 1)
7 – Chute (P/O PL 15.5 Item 1)
8 – Pinch Roll (P/O PL 15.5 Item 1)
9 – Inverter Chute (P/O PL 15.5 Item 1)
10 – Catch Magnet (P/O PL 15.5 Item 1)
11 130E82730 Inverter Sensor (REP 8.37)
12 – Bearing (P/O PL 15.5 Item 1)
13 022K57510 Inverter Roll
14 – Gear (P/O PL 15.5 Item 1)
15 – Harness (P/O PL 15.5 Item 1)
16 – Spring (P/O PL 15.5 Item 1)
17 830E56720 Cover Support
18 – Clamp (P/O PL 15.5 Item 1)
19 – Cable Clamp (P/O PL 15.5 Item 1)
