10/00
5-22
Phaser 790/DocuColor 2006
PL 5.1
Initial Issue
Parts List

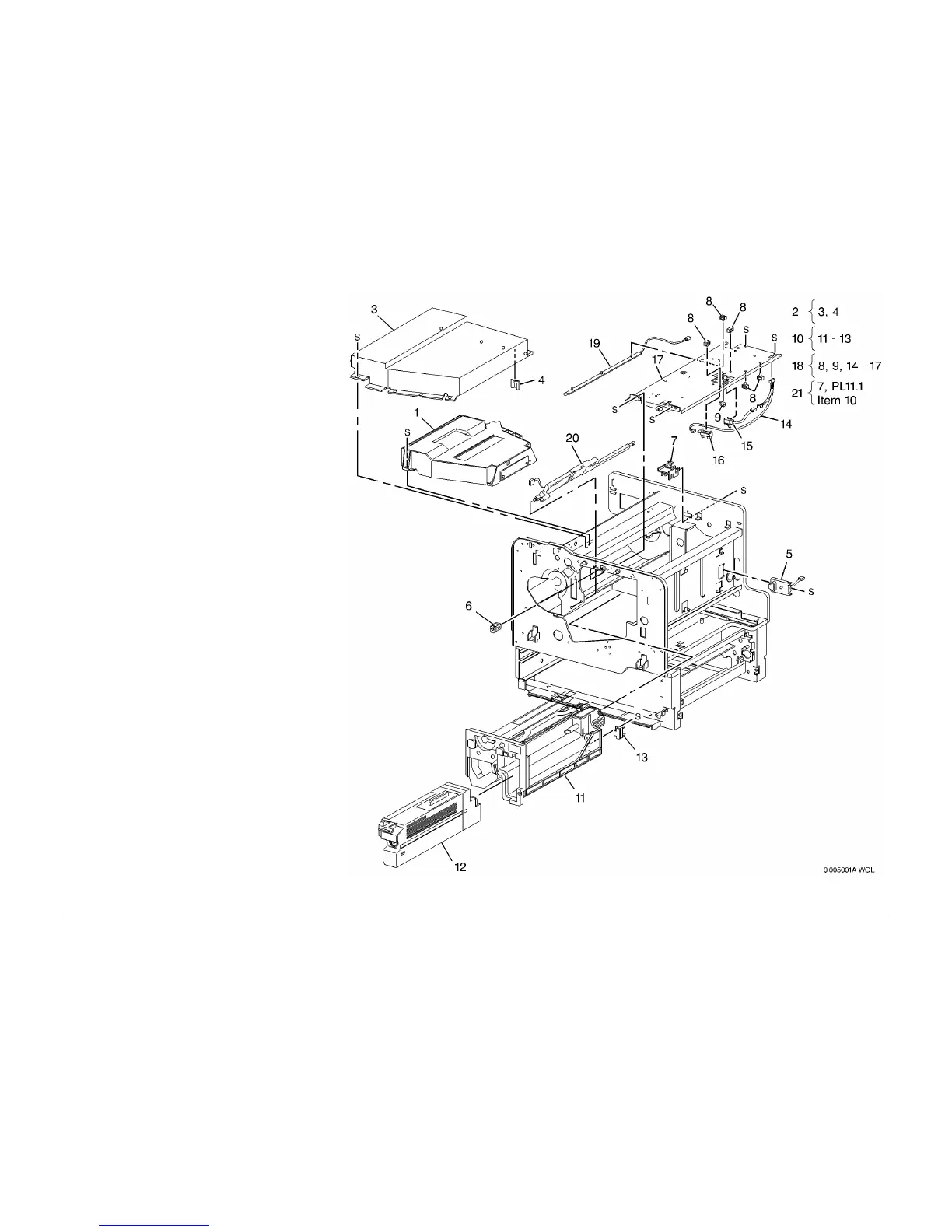

PL 5.1 Xerographics
Item Part Description
1 062K09722 ROS (REP 9.3)
2 – ROS Cover Assembly (Not Spared)
3 – ROS Cover (Not Spared)
4 – Saddle Bushing (Not Spared)
5 113K81450 Customer Replaceable Unit Module
(CRUM) Connector
6 026K80571 Receptacle
7 – Bias Charge Roll Connector (Not
Spared)
8 – Rail Clamp-2 (Not Spared)
9 – Rail Clamp-1 (Not Spared)
10 – Copy/Print Cartridge (REF: Section
6) (REP 9.1)
11 – Xerographics Cartridge (P/O PL 5.1
Item 10)
12 – Waste Container (REF: Section 6)
(REP 9.2)
13 160K81230 CRUM (P/O PL 5.1 Item 10)
(Phaser 790)
14 – Harness (Not Spared)
15 130E82980 Toner Box Sensor (REP 9.7)
16 130E91010 Waste Toner Sensor (REP 9.6)
17 – Locating Rail (Not Spared) (REP
9.5)
18 – Locating Rail Assembly (Not
Spared)
19 122K93100 Erase Lamp (REP 9.8)
20 130K60440 ADC Sensor (REP 9.4)
21 600K68620 BCR Connecter Kit
