Xerox Phaser 790 User Manual

10/00
4-56
Phaser 790/DocuColor 2006
REP 7.7
Initial Issue
Repairs and Adjustments
REP 7.7 Tray 1 Front Snubber
Parts List on PL 2.1
Removal
1. Remove the Tray 1 Assembly. (REP 7.6)
2. Set the Bottom Plate to the raised position by actuating the Plate Link. (Figure 1)

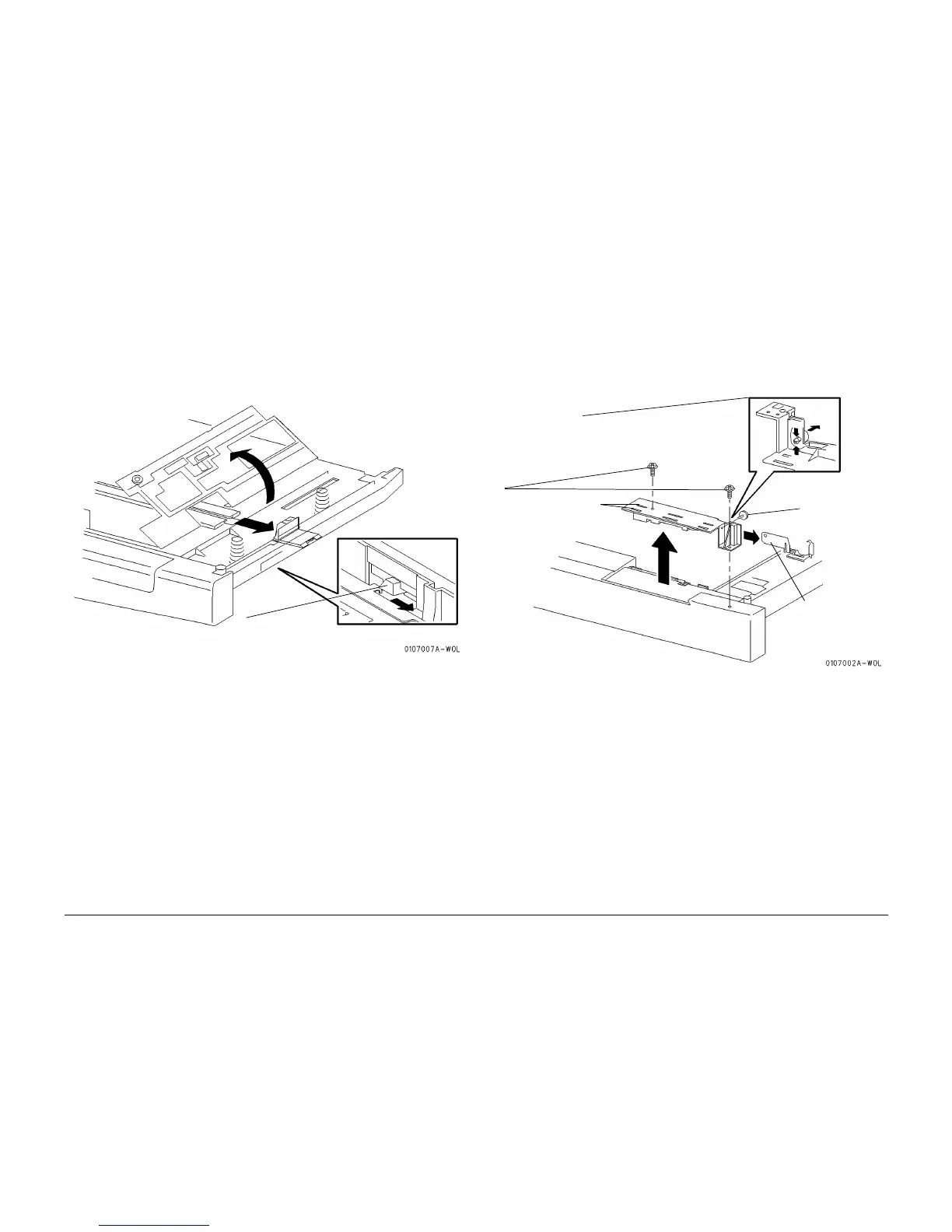

Figure 1 Unlocking the Bottom Plate
CAUTION
The area of the Tray 1 Front Snubber that comes in contact with the paper is easily bent. Use
care when handling the front snubber.
CAUTION
The Front Guide mounting position is critical to proper operation. Prior to removing the Front
Guide, take note of its mounting position.
3. Remove the Tray 1 Front Snubber. (Figure 2)
Figure 2 Removing the Tray 1 Front Snubber
Replacement
1. Perform the procedure for removal in reverse.
CAUTION
The area of the Tray 1 Front Snubber that comes in contact with the paper is easily bent. Use
care when handling the Front Snubber.
2. When installing the Tray 1 Front Snubber, make sure that the Bottom Plate is situated
under the tab on the top of the snubber and that the snubber is fully seated to the slot in
the side of the tray.
3. Install the Front Guide to the exact position from which it was removed.
REP 7.8 Oversize Tray Front Snubber
Parts List on PL 14.2
Removal
1. Remove the Oversize Tray Assembly. (REP 7.6)
2. Set the Bottom Plate to the raised position by actuating the Plate Link. (Figure 1)
1
Unlock the Bottom Plate by moving
the plate link as shown
1
See positioning CAUTION
Remove two screws and
remove the Front
Guide Assembly
2
Squeeze the locking tabs of the Snubber
Stopper with a pair of needle nose pliers
and remove the stopper
3
See CAUTION
Remove the Tray
1 Front Snubber
Snubber Stopper
