10/00
5-70
Phaser 790/DocuColor 2006
PL 17.2
Initial Issue
Parts List

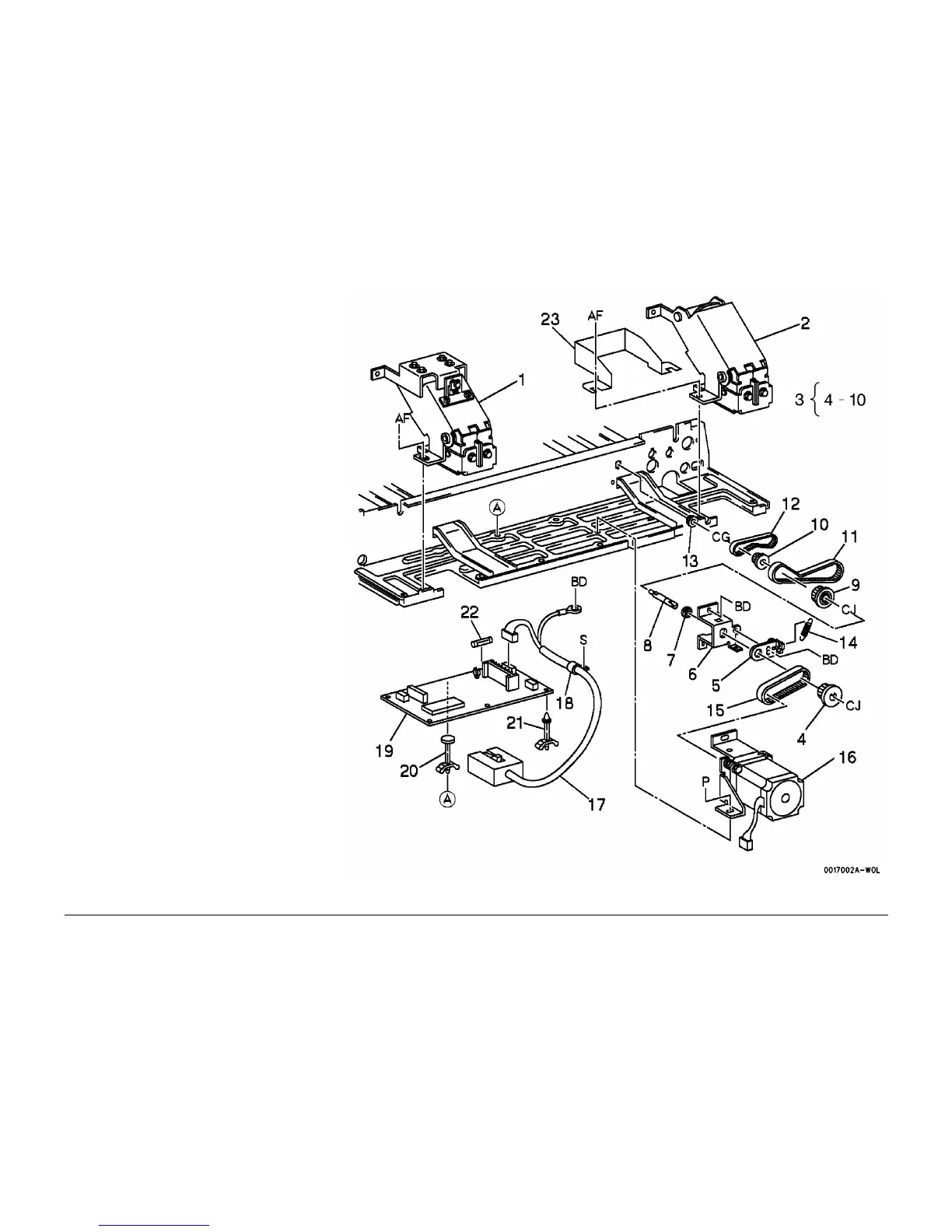

PL 17.2 Counterbalance, Drive Motor,
PWB
Item Part Description
1 036K90900 Right Counterbalance (REP 5.3
ADJ 5.1 ADJ 5.2 ADJ 5.3)
2 036K90890 Left Counterbalance (REP 5.3 ADJ
5.1 ADJ 5.2 ADJ 5.3)
3 020K93320 Pulley Assembly
4 020E16180 Pulley
5 068K78200 Bracket
6 – Bracket (P/O PL 17.2 Item 3)
7 013E81880 Bearing
8 – Shaft (P/O PL 17.2 Item 3)
9 020K93300 Pulley
10 020E90660 Pulley
11 023E08520 Belt
12 023E08510 Belt
13 013E81940 Bearing
14 009E48250 Spring
15 023E08500 Belt
16 127K29890 ADF Drive Motor (REP 5.2)
17 162K60410 Drive Harness
18 – Clamp (Not Spared)
19 160K11571 ADF Control PWB
20 – Support (Not Spared)
21 – Support (Not Spared)
22 108E93270 Fuse (4A 125v)
23 – Safety Cover (Not Spared)
To Next Page
