10/00
5-36
Phaser 790/DocuColor 2006
PL 8.7
Initial Issue
Parts List

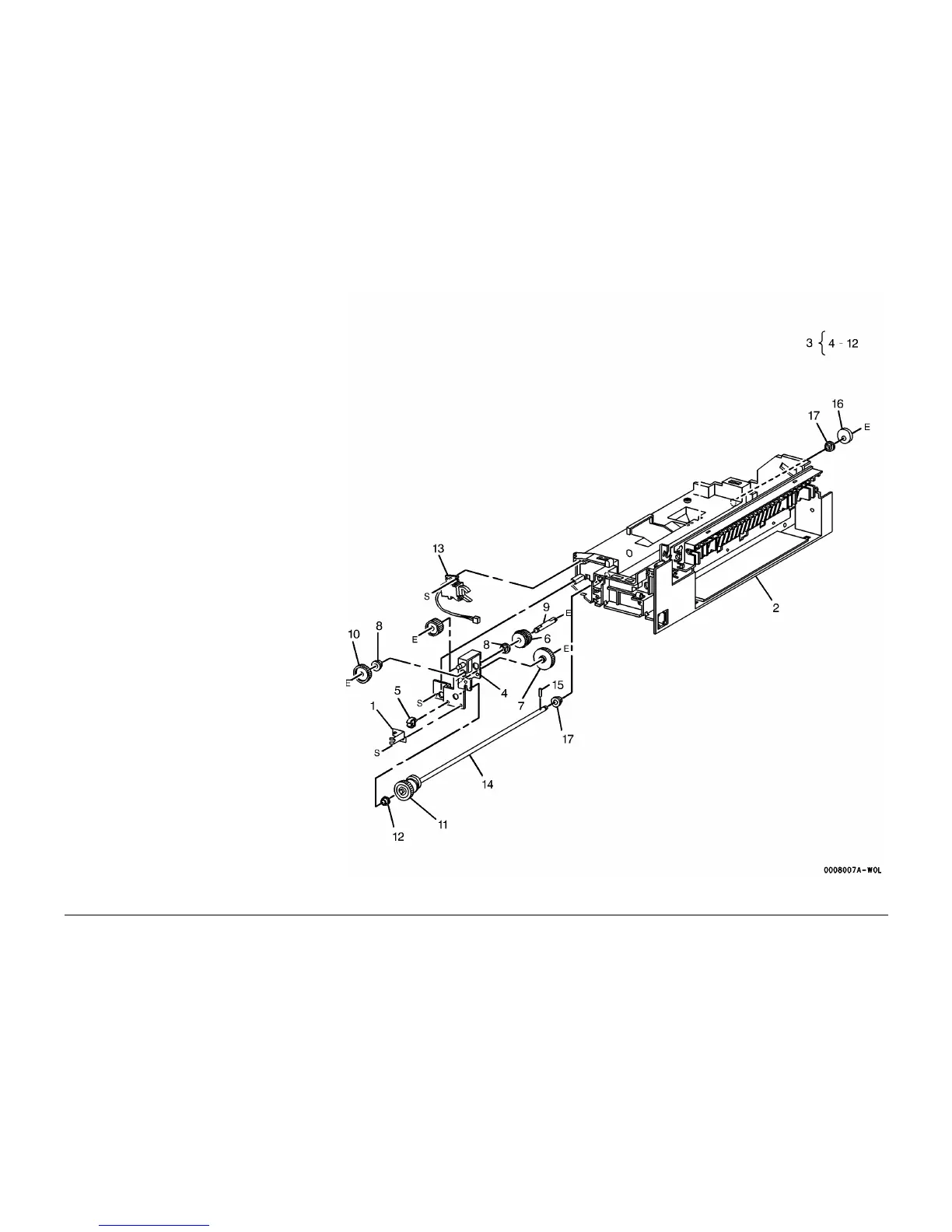

PL 8.7 Fusing (7 of 7)
Item Part Description
1 – Ground Contact Spring (Not
Spared)
2 – Fuser Tray (Not Spared)
3 015K49580 Input Bracket Assembly
4 – Front Bracket (P/O PL 8.7 Item 3)
5 – Clamp (P/O PL 8.7 Item 3)
6 – Gear (P/O PL 8.7 Item 3)
7 – Gear (P/O PL 8.7 Item 3)
8 – Bearing (P/O PL 8.7 Item 3)
9 – Shaft (P/O PL 8.7 Item 3)
10 – Gear (P/O PL 8.7 Item 3)
11 – Cleaner Cam Gear (P/O PL 8.7
Item 3)
12 – Rear Bearing (P/O PL 8.7 Item 3)
13 121E87040 Cleaner Cam Solenoid (REP 10.15)
14 – Cleaner Cam Shaft (Not Spared)
(REP 10.16)
15 – Pin (Not Spared)
16 – Cleaner Cam (Not Spared)
17 – Front Bearing (Not Spared)
To Next Page
