Xerox Phaser 790 User Manual

10/00
5-54
Phaser 790/DocuColor 2006
PL 14.3
Initial Issue
Parts List

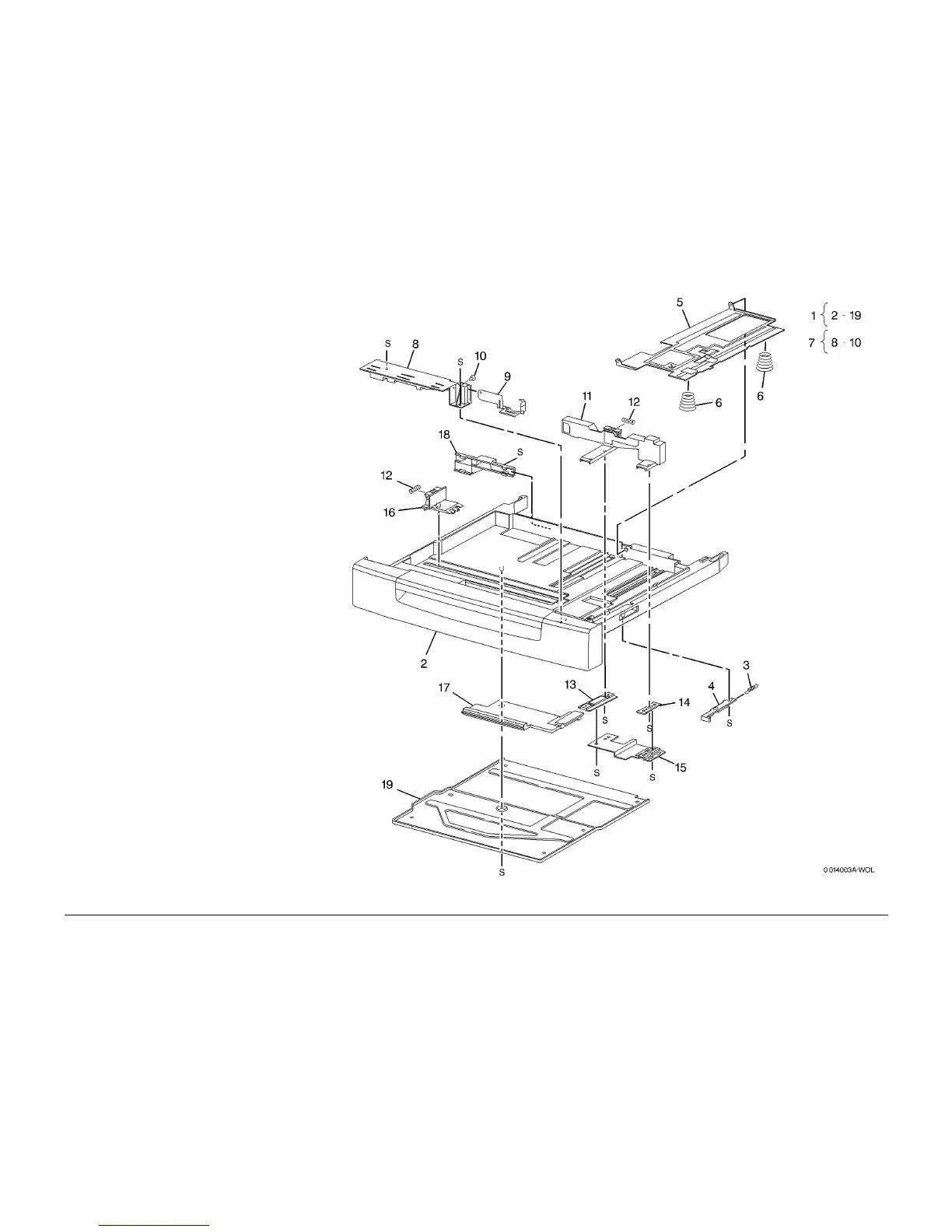

PL 14.3 Oversize Tray
Item Part Description
1 050K42172 Oversize Tray Assembly (REP 7.6)
2 – Tray Housing (P/O )PL 14.3 Item 1)
3 – Lift Spring (P/O PL 14.3 Item 1)
4 – Plate Link (P/O PL 14.3 Item 1)
5 – Oversize Lift Plate (P/O PL 14.3
Item 1)
6 – Tray Lift Spring (P/O PL 14.3 Item
1)
7 – Front Guide Assembly (P/O PL
14.3 Item 1)
8 038E88420 Front Guide
9 019K97140 Oversize Tray Front Snubber (REP
7.8)
10 – Snubber Stopper (P/O PL 14.3 Item
1)
11 – Rear Guide (P/O PL 14.3 Item 1)
12 – Guide Spring (P/O PL 14.3 Item 1)
13 – Left Rear Guide Plate (P/O PL 14.3
Item 1)
14 – Right Rear Guide Plate (P/O PL
14.3 Item 1)
15 – Lock Plate (P/O PL 14.3 Item 1)
16 038K85490 End Guide
17 – Guide Stopper (P/O PL 14.3 Item 1)
18 120E12930 Oversize Tray Actuator
19 – Tray Bottom Cover (P/O PL 14.3
Item 1)
