Xerox Phaser 790 User Manual

10/00
5-17
Phaser 790/DocuColor 2006
PL 4.3
Parts List
Initial Issue

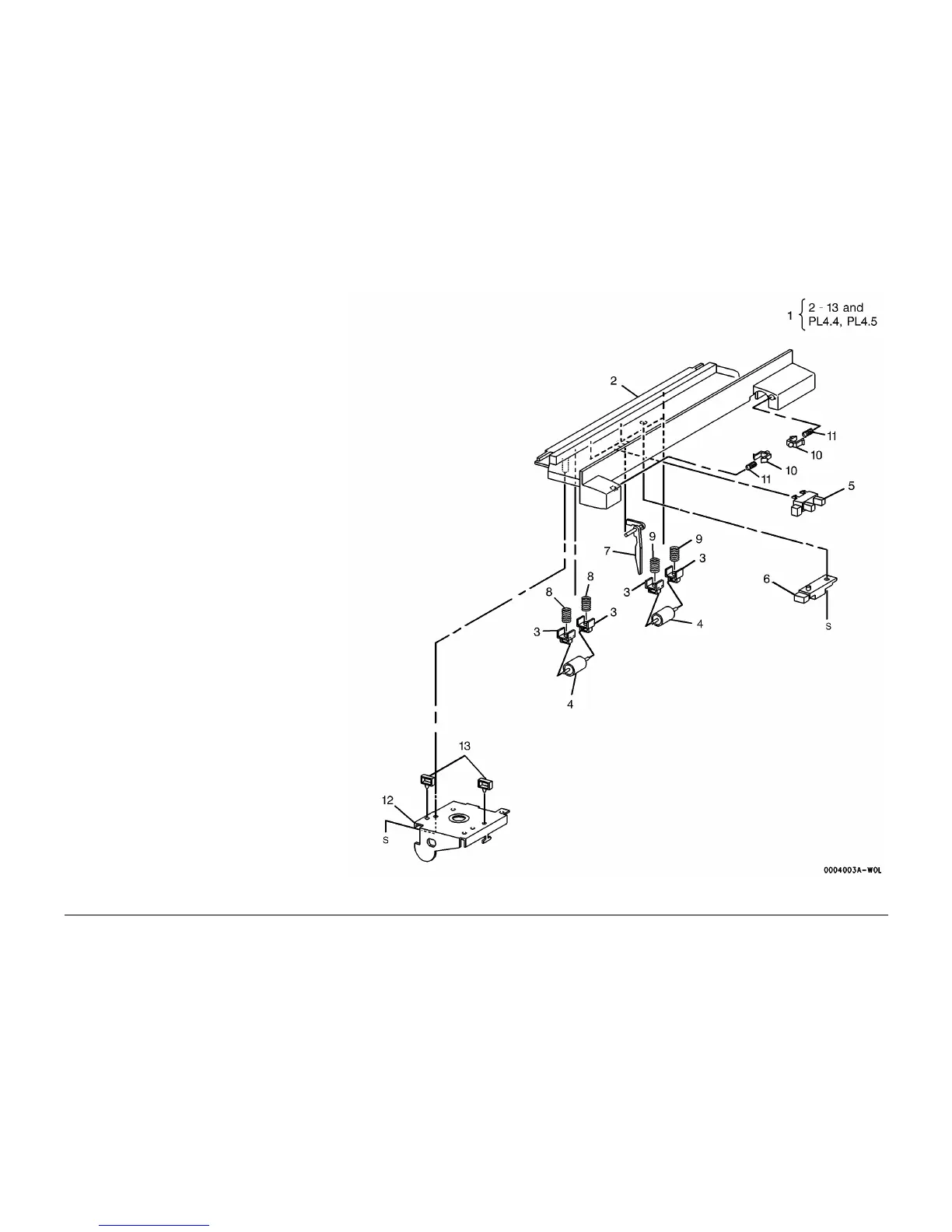

PL 4.3 Bypass Tray/ Paper Transport
(3 of 7)
Item Part Description
1 – Feed Assembly (Not Spared)
2 – Preregistration Chute (Not Spared)
3 – Preregistration Spring Housing (Not
Spared)
4 – Pinch Roll (Not Spared)
5 130E81970 Tray Empty Sensor (REP 8.12)
6 130E82650 Pitch Sensor (REP 8.13)
7 120E17680 Tray Empty Actuator
8 – Preregistration Spring 2 (Not
Spared)
9 – Preregistration Spring 1 (Not
Spared)
10 – Lock Pin (Not Spared)
11 – Tray Spring (Not Spared)
12 – Top Frame (Not Spared)
13 – Clamp (Not Spared)
