Xerox Phaser 790 User Manual

10/00
5-53
Phaser 790/DocuColor 2006
PL 14.2
Parts List
Initial Issue

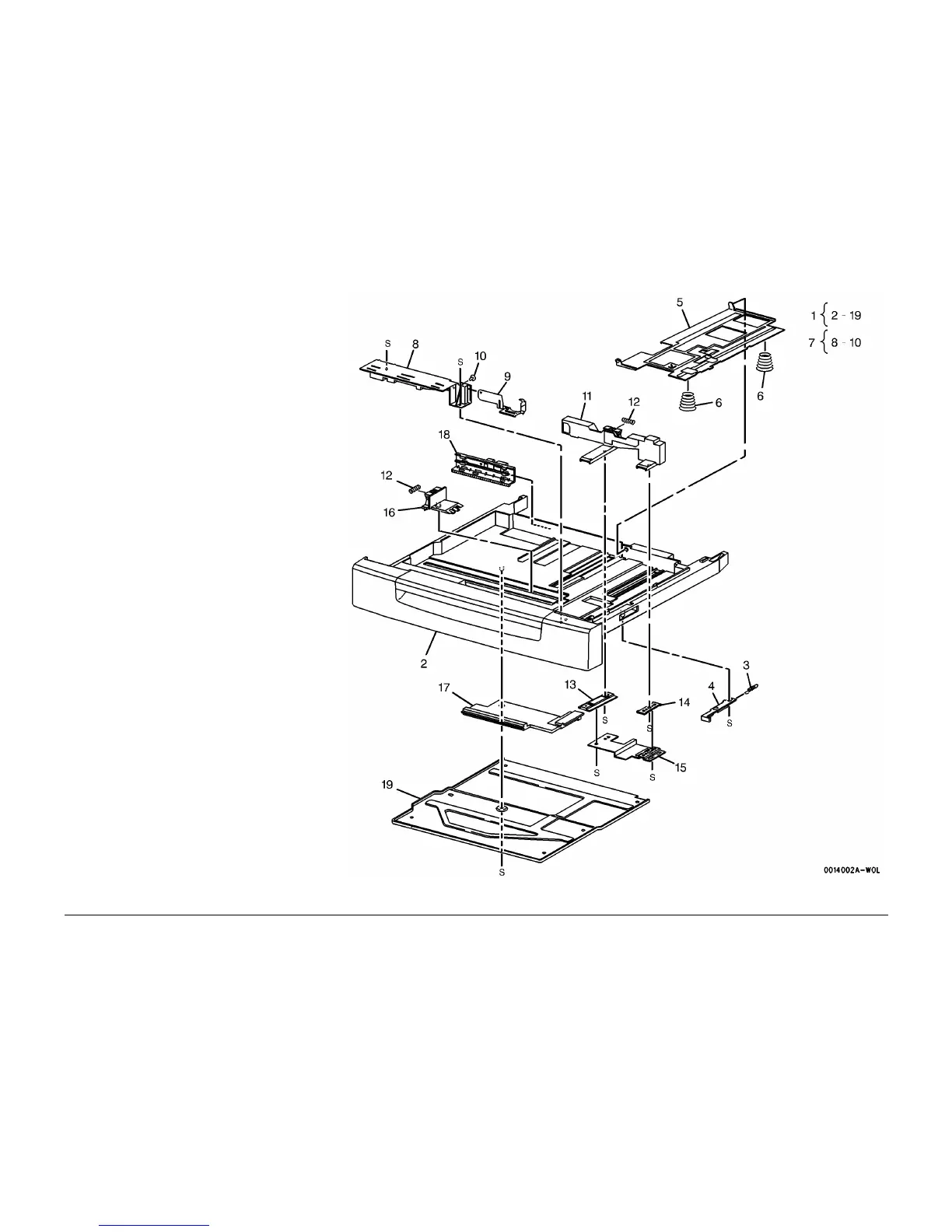

PL 14.2 OHP Transparency Tray
Assembly (2 of 2)
Item Part Description
1 050K42460 OHP Transparency Tray Assembly
2 – Tray Housing (P/O PL 14.2 Item 1)
3 – Link Spring (P/O PL 14.2 Item 1)
4 – Plate Link (P/O PL 14.2 Item 1)
5 – Transparency Lift Plate (P/O PL
14.2 Item 1)
6 – Tray Lift Spring (P/O PL 14.2 Item
1)
7 – Front Guide Assembly (P/O PL
14.2 Item 1)
8 038E88420 Front Guide
9 019K97140 Transparency Tray Front Snubber
(REP 7.8)
10 – Snubber Stopper (P/O PL 14.2 Item
1)
11 – Rear Guide (P/O PL 14.2 Item 1)
12 – Guide Spring (P/O PL 14.2 Item 1)
13 – Left Rear Guide Plate (P/O PL 14.2
Item 1)
14 – Right Rear Guide Plate (P/O PL
14.2 Item 1)
15 – Lock Plate (P/O PL 14.2 Item 1)
16 038K85700 End Guide
17 – Guide Stopper (P/O PL 14.2 Item 1)
18 – Transparency Tray Size Actuator
(P/O PL 14.2 Item 1)
19 – Tray Bottom Cover (P/O PL 14.2
Item 1)
