Xerox Phaser 790 User Manual

10/00
4-122
Phaser 790/DocuColor 2006
REP 10.13
Initial Issue
Repairs and Adjustments
REP 10.13 Exchange Chute
Parts List on PL 8.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Exit Tray Assembly (REP 8.30).
3. Remove the Fuser Assembly (REP 10.1).
4. Remove the Main Fuser Assembly (REP 10.2).
CAUTION
Be careful not to damage the front or rear hinges of the Exchange Chute while removing the
chute.
5. Remove the Exchange Chute (Figure 1).
Replacement
CAUTION
Insert the U-shaped parts on the front and rear of the Exchange Chute securely into the
plunger when installing the chute.
1. Reinstall the Exchange Chute in the reverse order of removal.

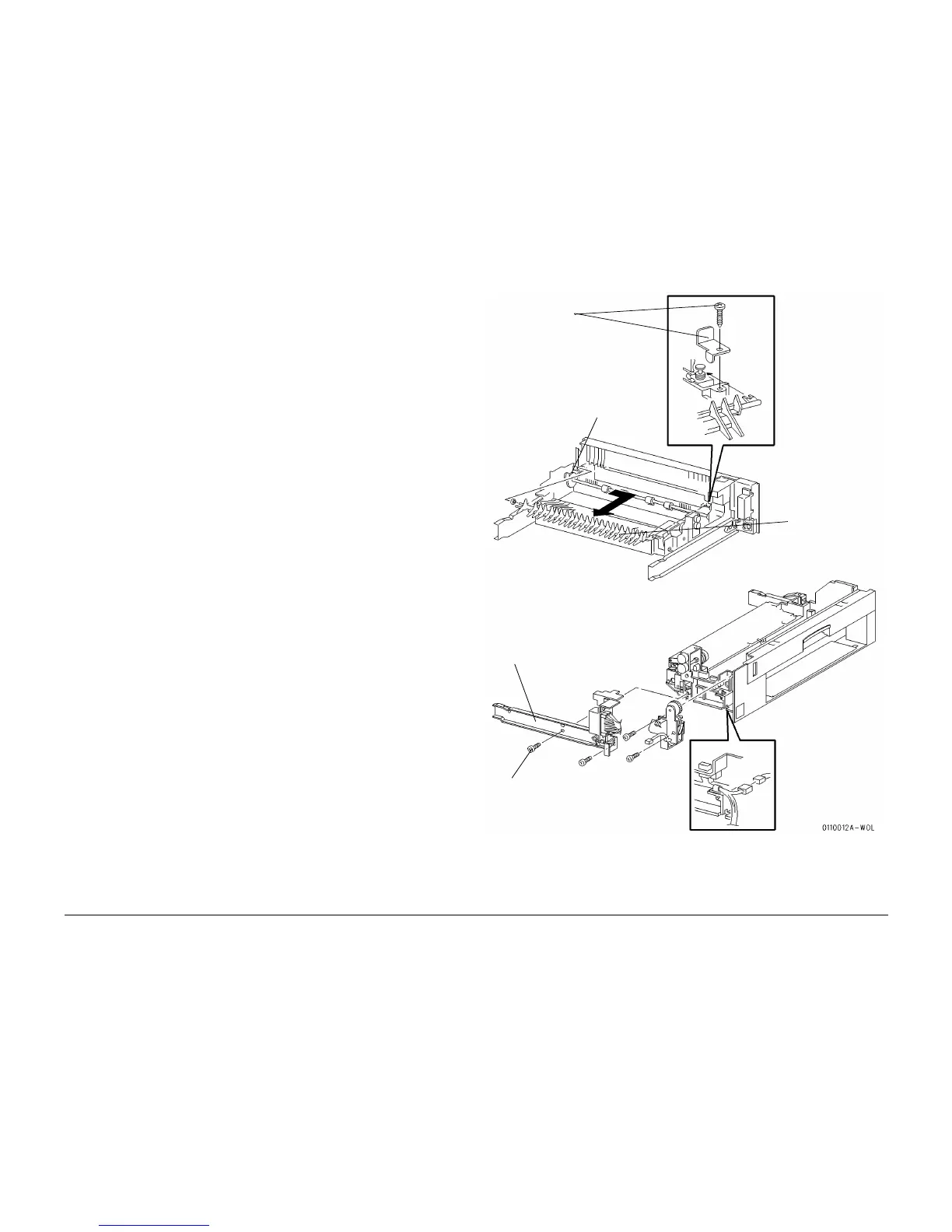

Figure 1 Removing the Exchange Chute
1
Remove the
screws
2
Remove the
Fuser Front Rail
3
Remove the screw.
Then, remove the
Front Exchange
Stopper
4
Remove the screw
and the Rear
Exchange Stopper
5
Remove the
Exchange Chute
from the right side
