Xerox Phaser 790 User Manual

10/00
4-132
Phaser 790/DocuColor 2006
REP 11.5, REP 11.6
Initial Issue
Repairs and Adjustments
REP 11.5 Sensor Receiver
Parts List on PL 19.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Sensor Receiver (Figure 1).

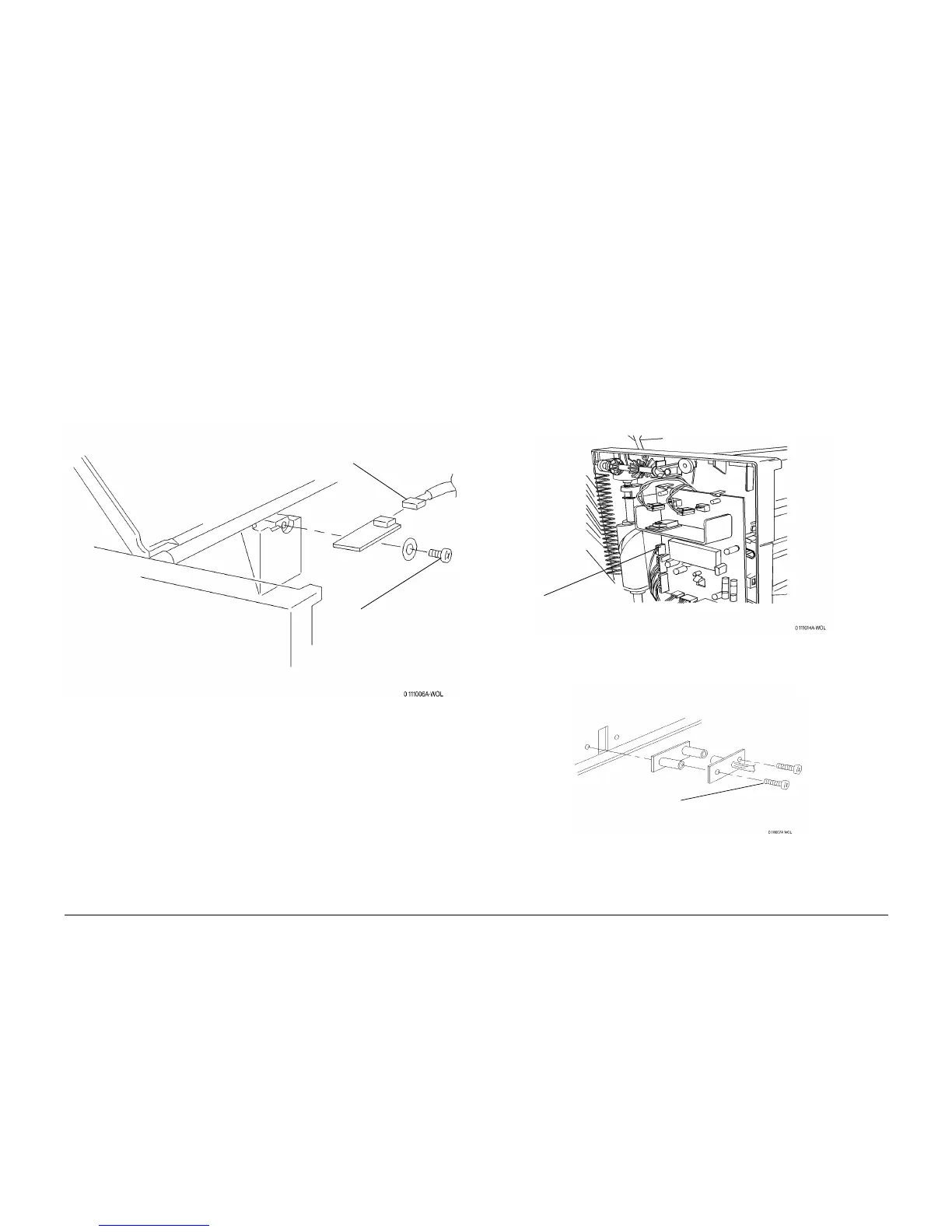

Figure 1 Removing the Sensor Receiver
Replacement
1. Perform the procedure for removal in reverse.
REP 11.6 Sensor Transmitter
Parts List on PL 19.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bottom Cover (REP 11.2).
3. Disconnect the connector (Figure 1).
Figure 1 Disconnecting the Connector
4. Remove the Sensor Transmitter (Figure 2).
Figure 2 Removing the Sensor Transmitter
Replacement
1. Perform the procedure for removal in reverse.
1
Remove the screw and
plastic washer
2
Disconnect the connector and
remove the Sensor Receiver
1
Disconnect the connector and release
the wires from the harness
1
Remove the screws
(2) and sensor
