10/00
4-79
Phaser 790/DocuColor 2006
REP 8.29
Repairs and Adjustments
Initial Issue
7. Remove the Exit Chute. (Figure 4)

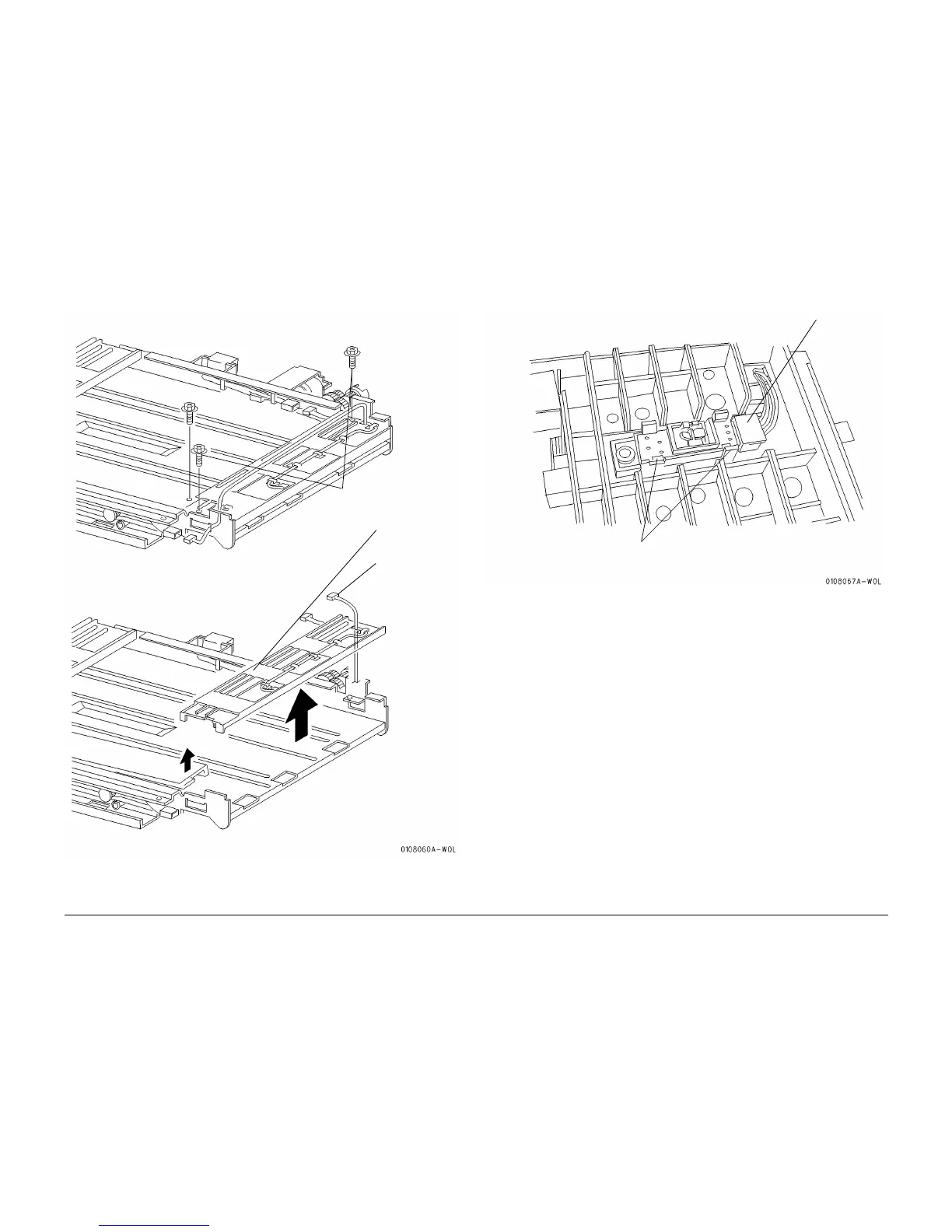

Figure 4 Removing the Exit Chute
8. Remove the Duplex Exit Sensor. (Figure 5)
Figure 5 Removing the Duplex Exit Sensor
Replacement
1. Perform the removal procedure in reverse.
1
Disconnect the
connectors
2
Remove two screws and
the Exit Chute
1
Disconnect
the connector
2
Release the locking tabs and
remove the Duplex Exit Sensor
