27.2.7 Attaching communication unit and connecting cable
Cautions when attaching the communication unit and connecting the cable
Shut off all phases of the GOT power supply before attaching the communication
unit and connecting the cable.
1 Attaching the communication unit
MELSECNET/10 communication unit
For details of the MELSECNET/10 communication unit, refer to the following
manual.
GT15 MELSECNET/10 communication unit User's Manual

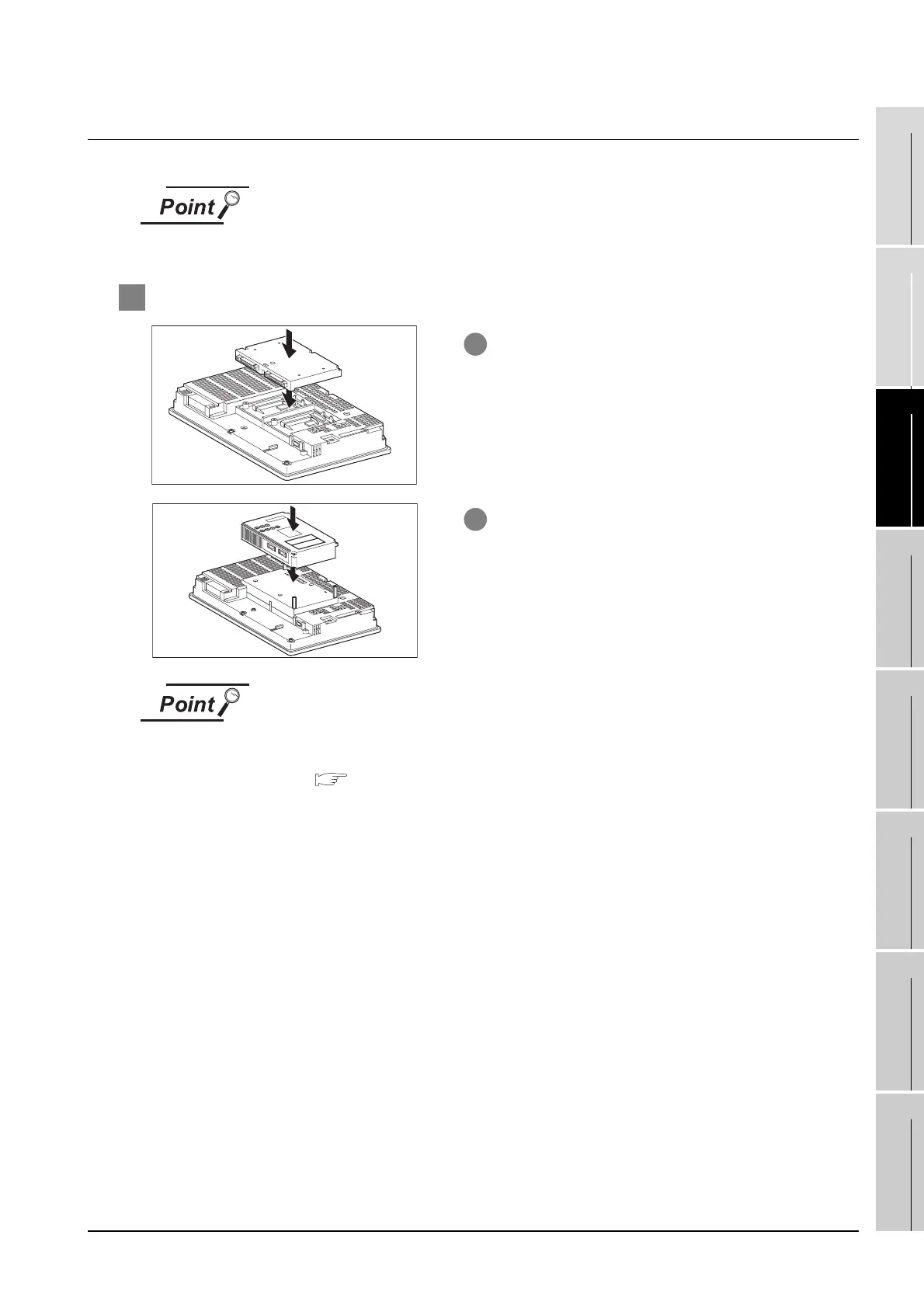

1 Mount the interface converter unit to the extension
unit connector of the GOT.
2 Mount the MELSECNET/10 communication unit to
the interface converter unit.
