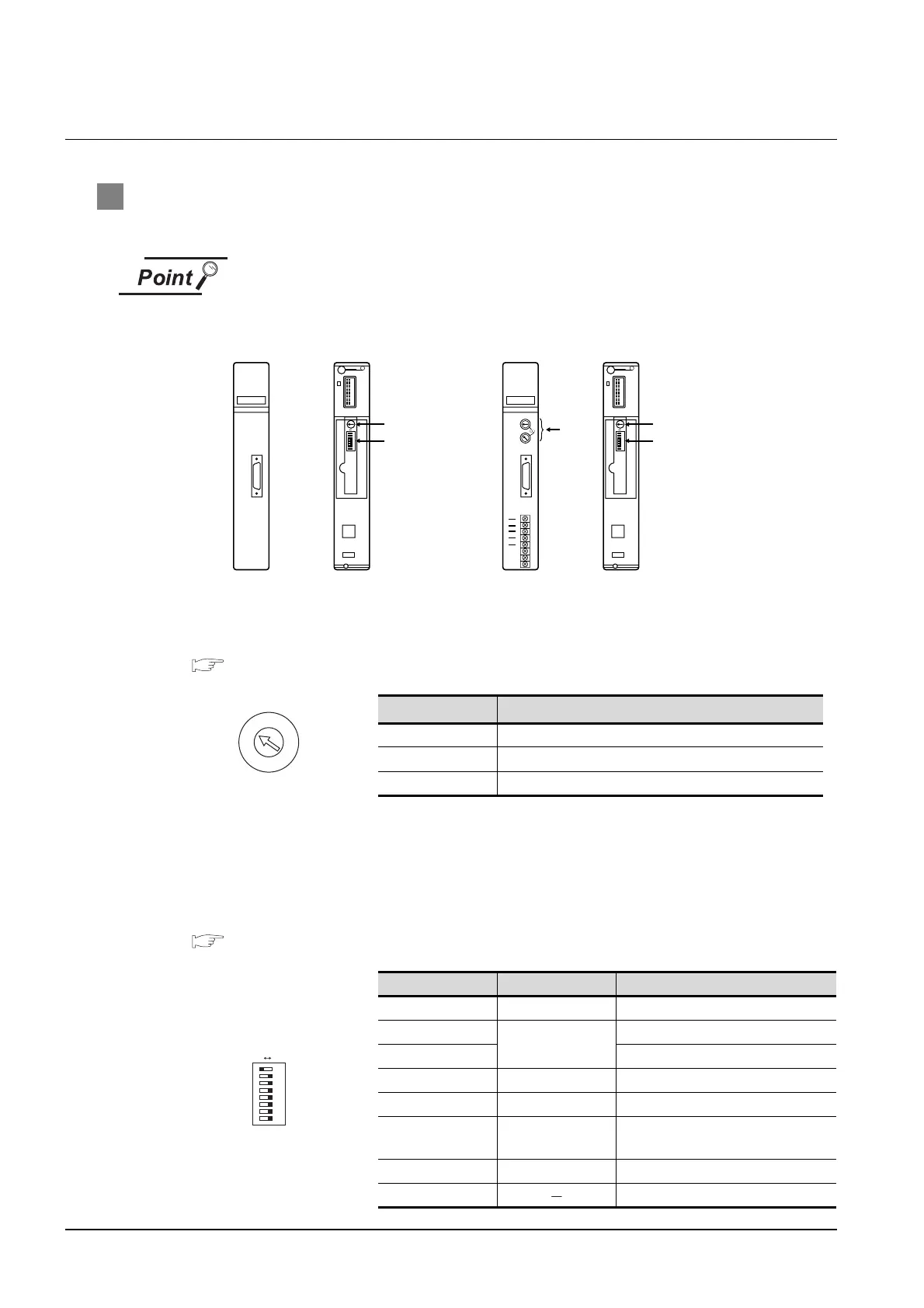

16 - 34
16.4 PLC Side Setting
16.4.4 Connecting PC link module (LC01-0N, LC02-0N)
16.4.4 Connecting PC link module (LC01-0N, LC02-0N)
1 Switch setting on the PC link module
Set the switches accordingly.
Switch setting
Set the switches before mounting the PC link module to the base unit.
(1) Transmission speed switch
Set the same transmission speed as that of the GOT side.
For the transmission speed setting on the GOT side, refer to the following.
Section 16.3.3 Setting communication interface (Communication settings)
*1 Only transmission speeds available on the GOT side are shown.
(2) Data format switch
Set the data length, parity, stop bit and checksum consistent with the corresponding settings on the
GOT side.
For the settings on the GOT side, refer to the following.
Section 16.3.3 Setting communication interface (Communication settings)
Setting
*1
Transmission speed
4 4800bps
5 9600bps
6 19200bps
Switch No. Description Setting
1 Data length ON (8 bits), OFF (7 bits)
2
Parity
ON, OFF
3 ON (even), OFF (odd)
4 Stop bit ON (2 bits), OFF (1 bit)
5 Checksum ON, OFF
6
End character
specification
OFF
7 Protect function OFF (disabled)
8OFF
Front
LC01-0N
Rear
1
2
3
4
5
6
7
8
OFFON
(1)
(3)
(2)
Front
LC02-0N
Rear
1
2
3
4
5
6
7
8
OFFON
(1)
(2)
STATION NO.
0
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
OFFON
