27.4 Ethernet Connection
27.4.9 Checking for normal monitoring
27.4.9 Checking for normal monitoring
1 Check for errors occurring on the GOT.
Presetting the system alarm to project data allows you to identify errors occurred on the GOT, PLC
CPU, servo amplifier and communications.
For details on the system alarm, refer to the following manual.
GT User’s Manual (When using GT15)
Advanced alarm popup display
With the advanced alarm popup display function, alarms are displayed as a popup
display regardless of whether an alarm display object is placed on the screen or not
(regardless of the display screen).
Since comments can be flown from right to left, even a long comment can be
displayed all.
For details of the advanced popup display, refer to the following manual.
GT Designer2 Version Screen Design Manual
2 Confirming the communication state of GOT
(1) When using the Command Prompt of Windows
Execute a Ping command at the Command Prompt of Windows .
(a) When normal communication
C:\>Ping 192.168.0.18
Reply from 192.168.0.18: bytes=32 time<1ms TTL=64
(b) When abnormal communication
C:\>Ping 192.168.0.18
Request timed out.

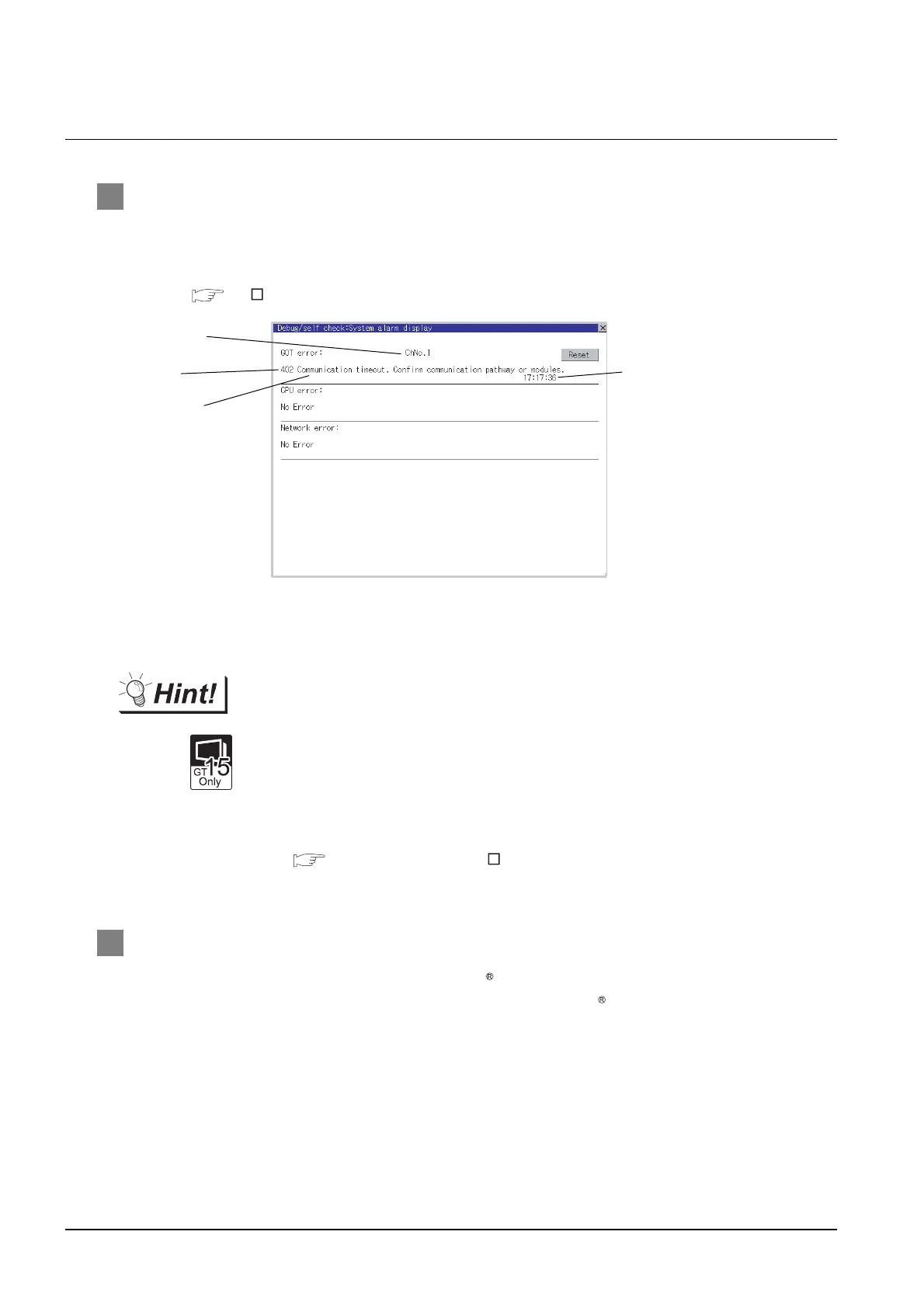

Error code
Communication
Channel No.
Error message
Time of occurrence
(Displayed only for errors)
