Mitsubishi GOT1000 Series User Manual

20 - 2

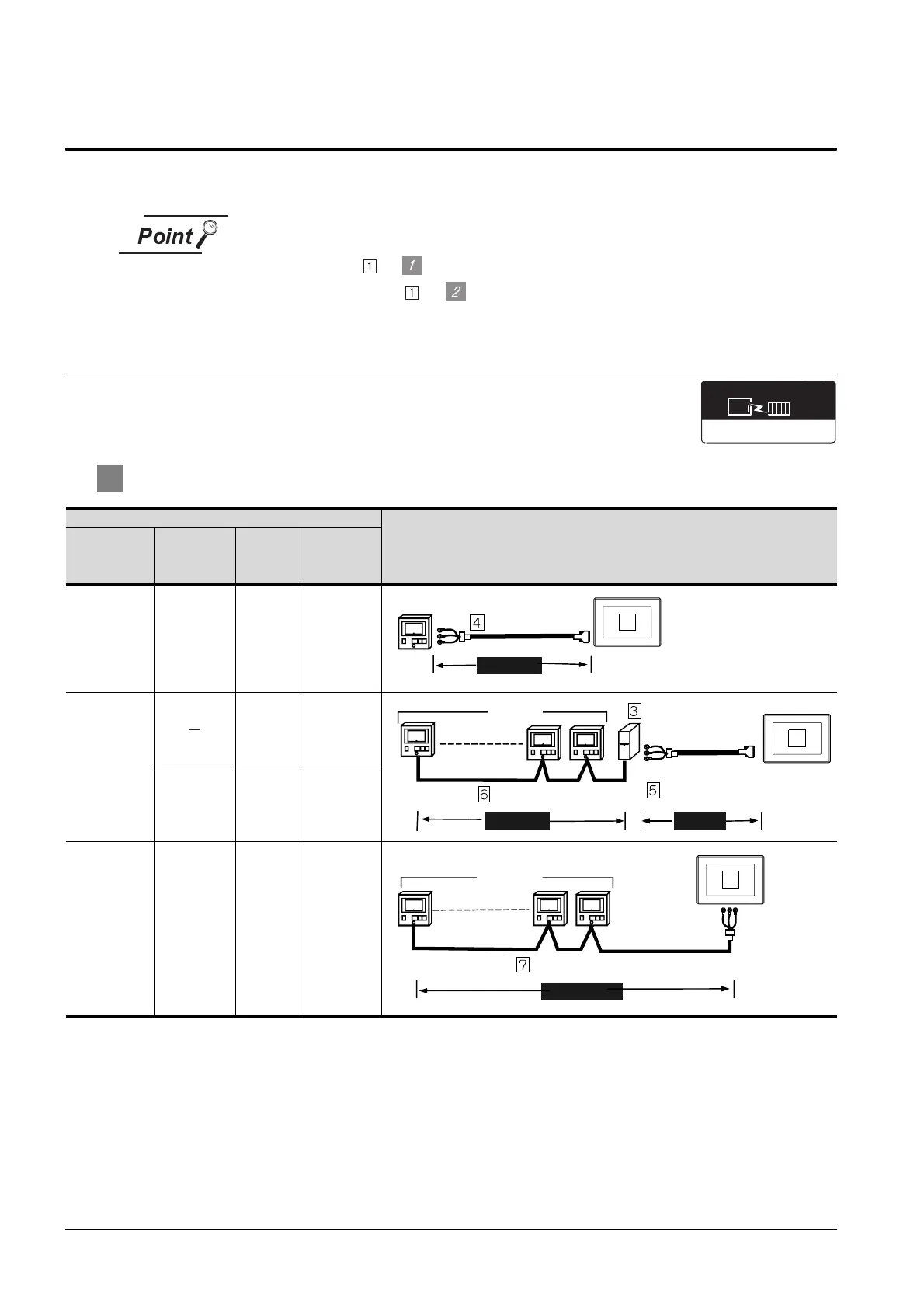

20.1 System configuration
20.1.1 Connecting E5AN, E5EN
20.1 System configuration
Select a system configuration suitable for your application.
Conventions used in this section
Numbers (e.g. ) of System configuration and connection conditions correspond
to the numbers (e.g. ) of System equipment.
Use these numbers as references when confirming models and applications.
20.1.1 Connecting E5AN, E5EN
1 System configuration and connection conditions
Connection conditions
System configuration
Number of
GOTs
Number of
temperature
controllers
Communi
-cation
Distance
1 1 RS-232 15m or less
1
RS-232 15m or less
32 (max.) RS-485 500m or less
1 31 (max.) RS-485 500m or less
Communication driver
OMRON
THERMAC/INPANEL NEO
MAX15m
RS-232 cable 1)
1
MAX15m
RS-232 cable 2)
MAX500m
RS-485 cable 1)
1
32 (max.)
Interface converter
MAX500m
RS-485 cable 2)
2
31 (max.)
