2.2.3 Setting communication interface (Communication settings)

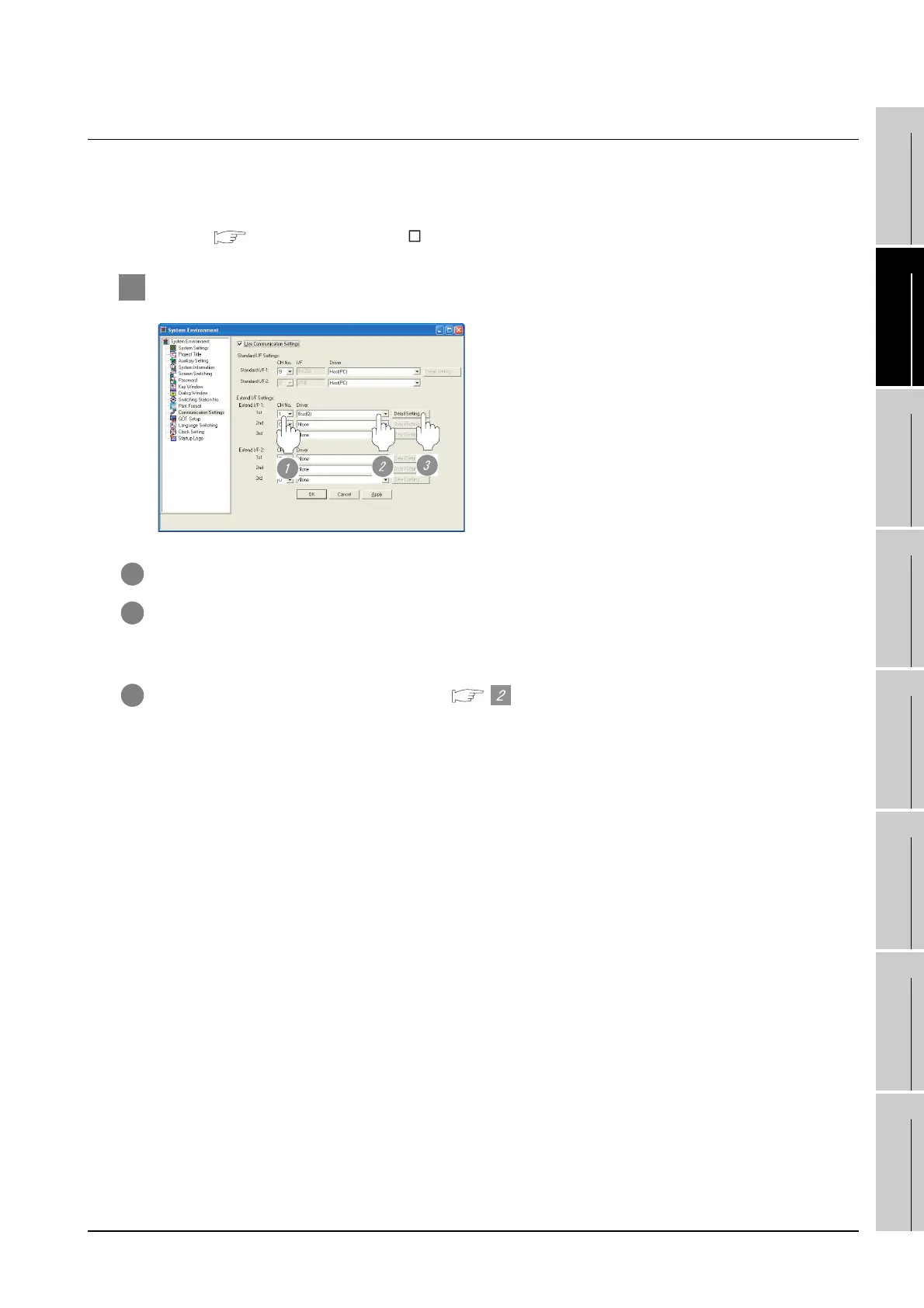

Make the GOT communication interface settings on [Communication setting] of GT Designer2.
Select the same communication driver as the one installed on the GOT for each communication interface.
For details on [Communication setting] of GT Designer2, refer to the following manual.
GT Designer2 Version Screen Design Manual
1 Communication settings
1 Set "1" to the channel No. used.
2 Set the following to the driver.
• When connecting to QCPU (Q mode) or motion controller CPU (Q Series): Bus(Q)
• When connecting to other than the above: Bus(A/QnA)
3 Perform the detailed settings for the driver. ( Communication detail settings)
