27.4.7 Attaching communication unit and connecting cable
Cautions when attaching the communication unit and connecting the cable
Shut off all phases of the GOT power supply before attaching the communication
unit and connecting the cable.

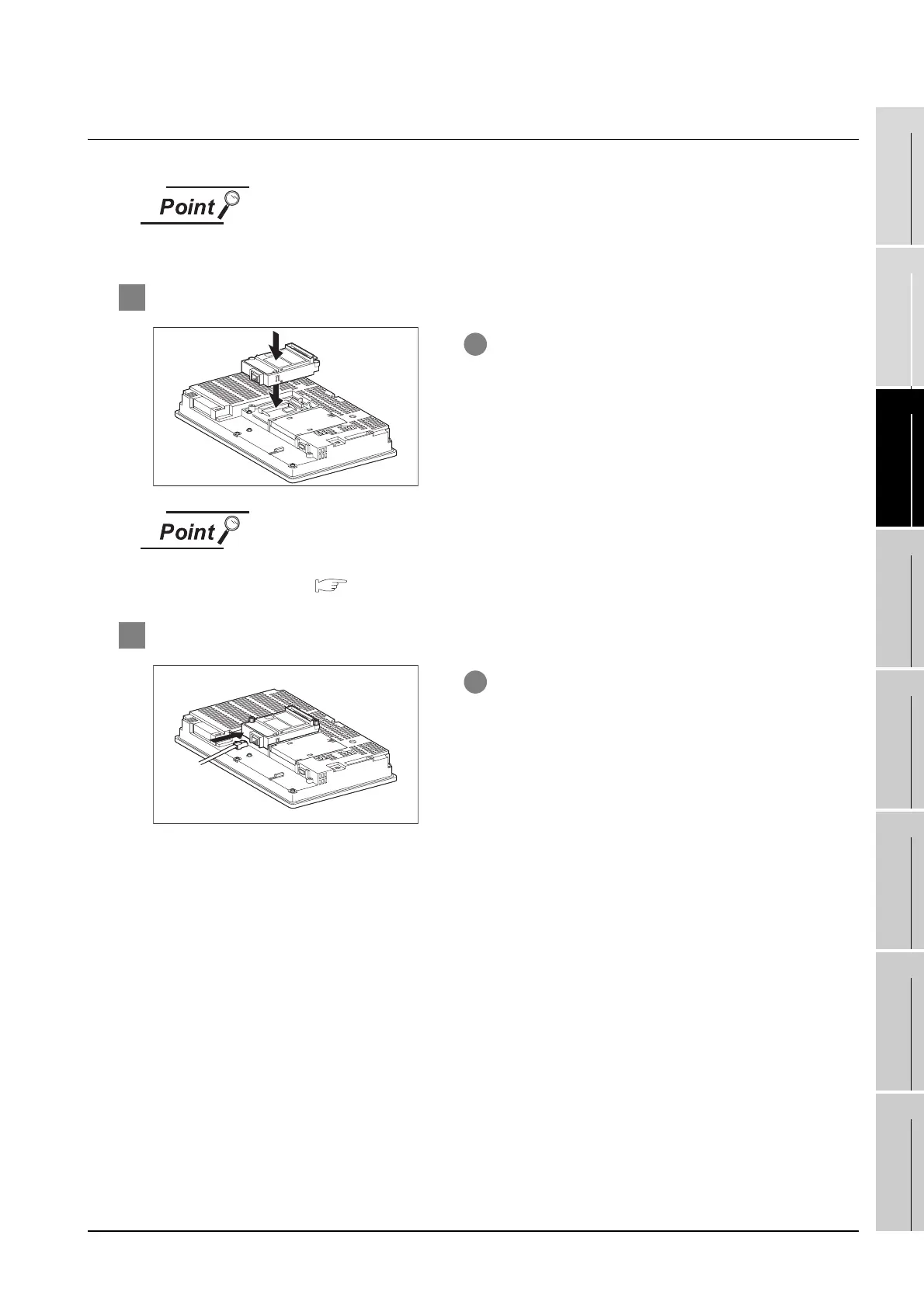

1 Attaching the communication unit
Ethernet communication unit
For details on the Ethernet communication unit, refer to the following manual:
GT15 Ethernet Communication Unit User's Manual
2 Connecting the cable
1 Attach the Ethernet communication unit to the
extension unit connector on the GOT.
1 Connect the twisted pair cable to the Ethernet
communication unit.
