8.2 Preparatory Procedures for Monitoring
8.2.3 Setting communication interface (Communication settings)
3 Ethernet setting

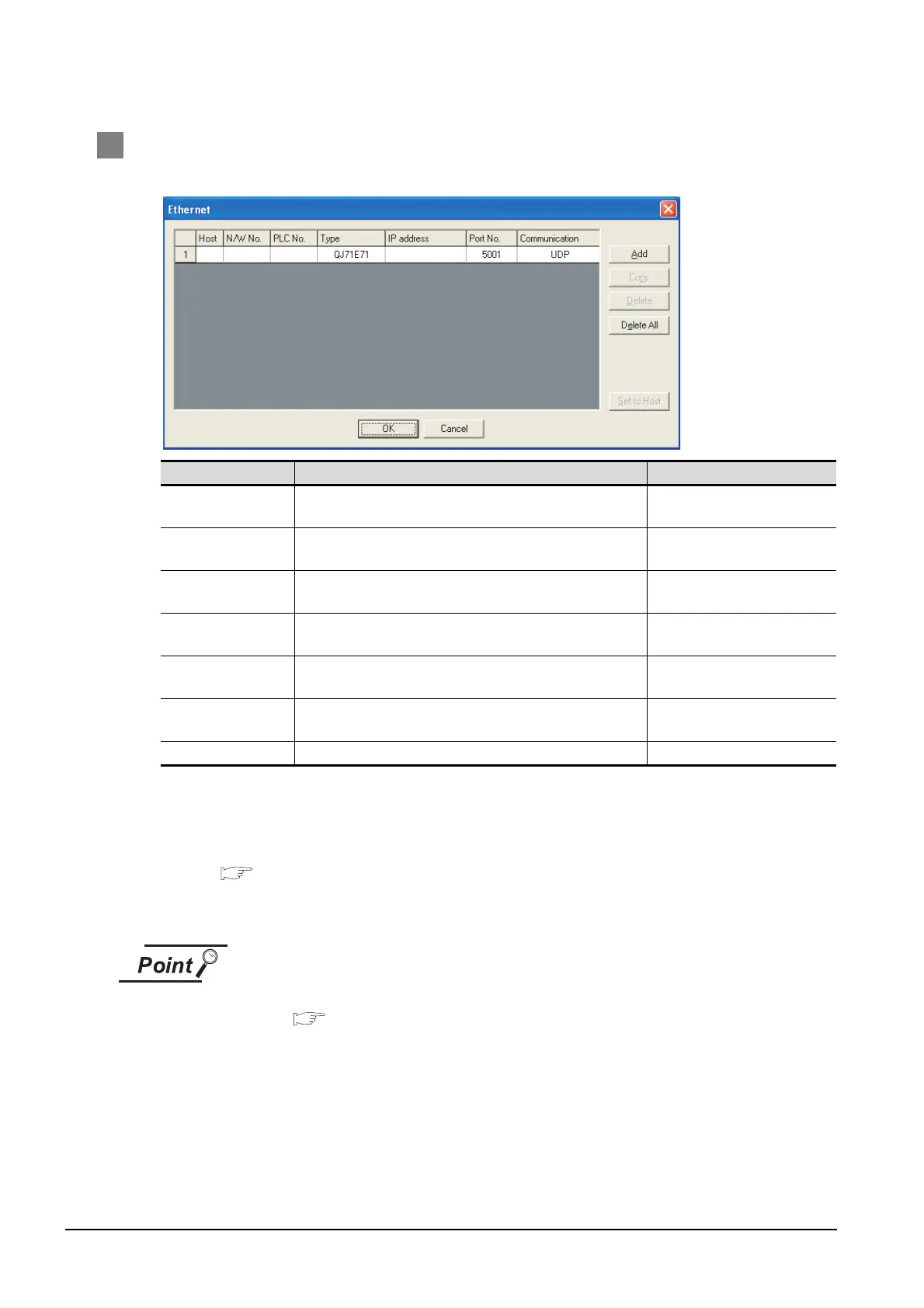

(1) Ethernet setting
*1 Select one of the following [type].
• Ethernet module (Q Series) : QJ71E71
• Ethernet module (QnA Series) : AJ71QE71
• Ethernet module (A Series) : AJ71E71
For the applicable Ethernet module, refer to the following.
Section 8.1 System Configuration
*2 Set when selecting "AJ71E71".
The port No. is "5001" (fixed) when selecting "QJ71E71/AJ71QE71".
Example of Ethernet setting
For examples of Ethernet setting, refer to the following.
Section 8.3 PLC Side Setting
Item Description Range
Host
The host is displayed.
(The host is indicated with an asterisk (*).)
-
N/W No.
Set the network No. of the connected Ethernet module.
<Default: blank>
1 to 239
PLC No.
Set the station No. of the connected Ethernet module.
<Default: blank>
1 to 64
Type
*1
Set the type of the connected Ethernet module.
<Default: QJ71E71>
QJ71E71, AJ71QE71, AJ71E71
IP address
Set the IP address of the connected Ethernet module.
<Default: 192.168.0.1>
0.0.0.0 to 255.255.255.255
Port No.
*2
Set the port No. of the connected Ethernet module.
<Default: 5001>
1024 to 65534
Communication UDP (fixed) UDP (fixed)
