21.4 Temperature Controller Side Setting
21.4.6 Station NO. settings
21.4.6 Station NO. settings
Set each station number while making sure that one station number is used only once.
The station number can be set without regard to the cable connection order. No problem is expected even if
station numbers are not consecutive.
(1) Direct specification
When setting the device, specify the station number of the temperature controller of which data is
to be changed.
(2) Indirect specification
When setting the device, indirectly specify the station number of the inverter of which data is to be
changed using the 16-bit GOT internal data register (GD10 to GD 25 ).
When specifying the station No. from 200 to 215 on GT Designer2, the value of GD10 to GD25
compatible to the station No. specification will be the station No. of the temperature controller.
(3) All station specification
Target station differs depending on write-in operation or read-out operation.
• For write-in operation, all station will be a target.
• For read-out operation, only one station will be a target.
Model Specification range
SDC40A/40B/40G, SDC15, SDC25/26,
SDC35/36, SDC20/21, SDC30/31
0 to 127
DMC10 0 to 15
Specification station NO. Compatible device Setting range
200 GD10
0 to 127 : For SDC40A/40B/40G, SDC15, SDC25/26,
SDC35/36, SDC20/21, SDC30/31
0 to 15 : For DMC10
For the setting other than the above, a communication timeout error
will occur.
201 GD11
202 GD12
203 GD13
204 GD14
205 GD15
206 GD16
207 GD17
208 GD18
209 GD19
210 GD20
211 GD21
212 GD22
213 GD23
214 GD24
215 GD25

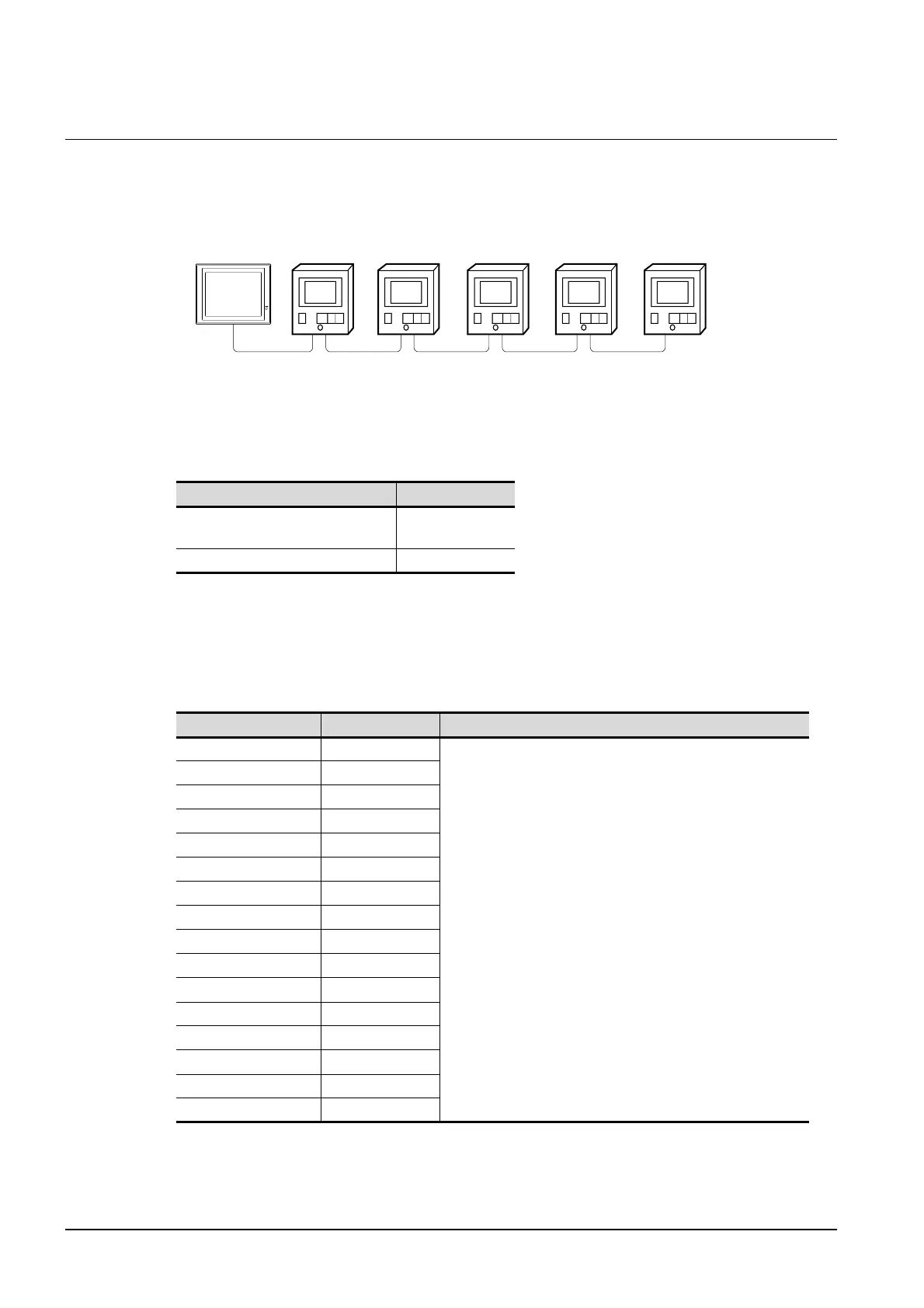

Station No.3
