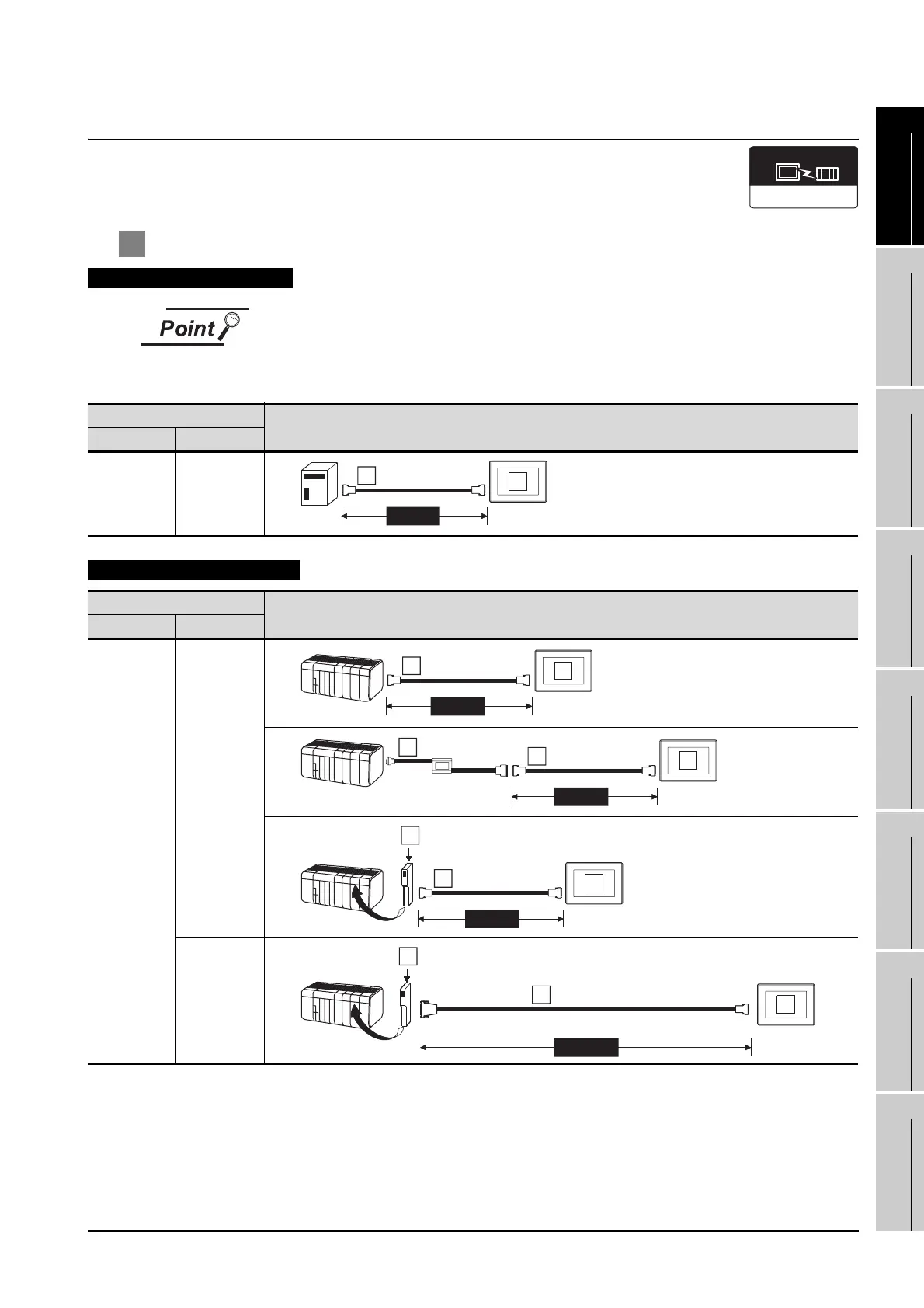

9.1.2 Connecting to CQM1, CQM1H or CJ1
1 System configuration and connection conditions
Compact PLCs that cannot be connected
No GOT can be connected to the CQM1-CPU11 since the CQM1-CPU11 has no
RS-232C interface.
When connecting to CQM1
Connection conditions
System configuration
No. of GOTs Distance
1 15m or less
When connecting to CQM1H
Connection conditions
System configuration
No. of GOTs Distance
1
15m or less
200m or less
OMRON SYSMAC
Communication driver
MAX15m
RS-232 cable 1)
6
1
MAX15m
RS-232 cable 1)
6
1
Connection cable
5
MAX15m
RS-232 cable 1)
6
1
Serial communication board
3
MAX15m
RS-232 cable 1)
6
1
Serial communication board
3
MAX200m
RS-422 cable 1)
7
2
