9.2.2 RS-422 cable
The following shows the connection diagrams and connector specifications of the RS-422 cable used for
connecting the GOT to a PLC.
Differences in polarity between GOT and OMRON products
The polarity of poles A and B in signal names is reversed between GOT and
OMRON products.
Connect a cable according to the following connection diagrams.

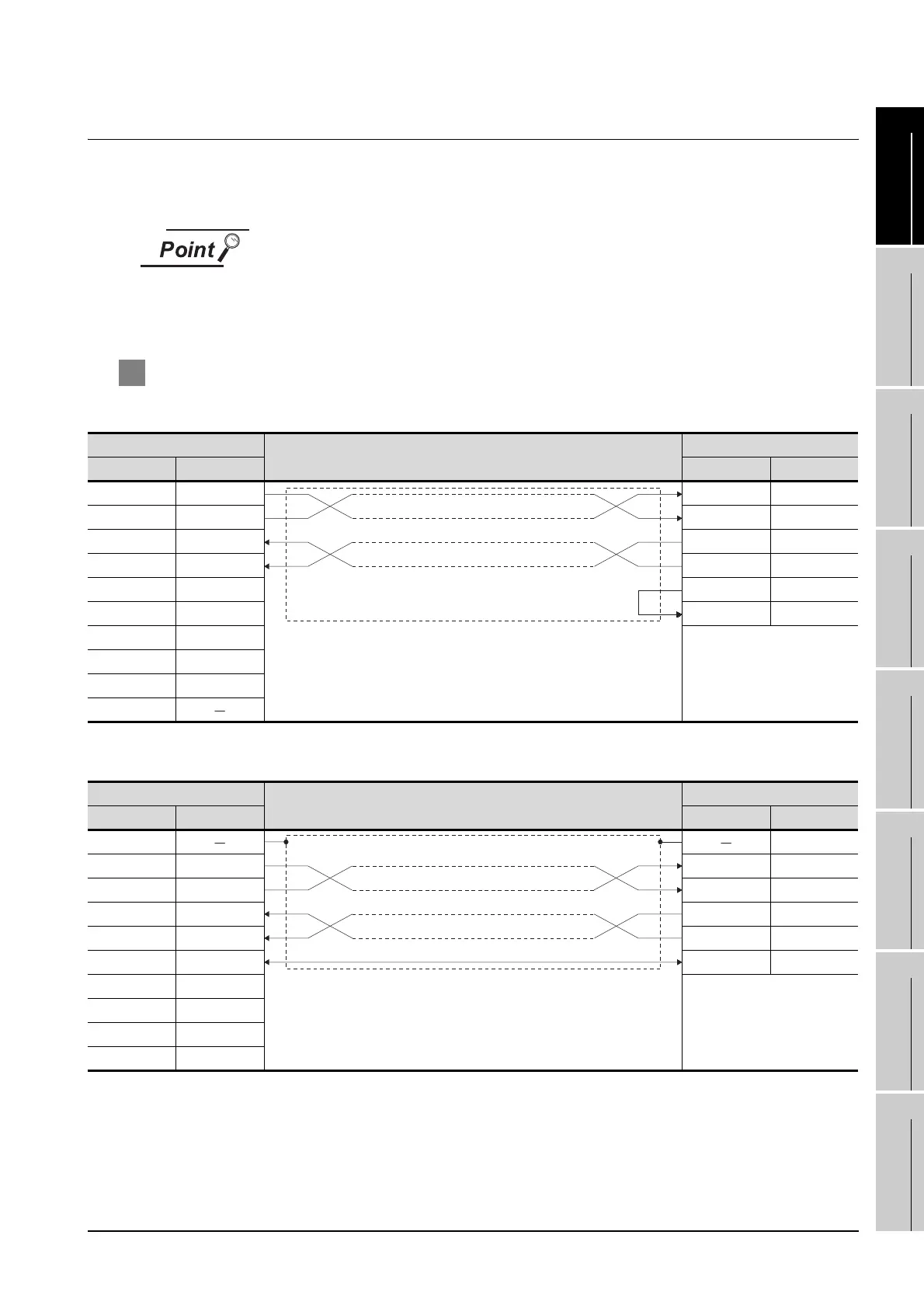

1 Connection diagram
(1) RS-422 cable 1)
(2) RS-422 cable 2)
GOT side
Cable connection and signal direction
OMRON product side
Signal name Pin No. Pin No. Signal name
SDA 1 8RDB
SDB 6 6RDA
RDA 2 2SDB
RDB 7 1SDA
RSA 3 4RS
CSA 4 5CS
SG 5
RSB 8
CSB 9
FG
GOT side
Cable connection and signal direction
OMRON product side
Signal name Pin No. Pin No. Signal name
FG FG
SDA 1 1RDB
SDB 6 6RDA
RDA 2 5SDB
RDB 7 9SDA
SG 5 3SG
RSA 3
CSA 4
RSB 8
CSB 9
