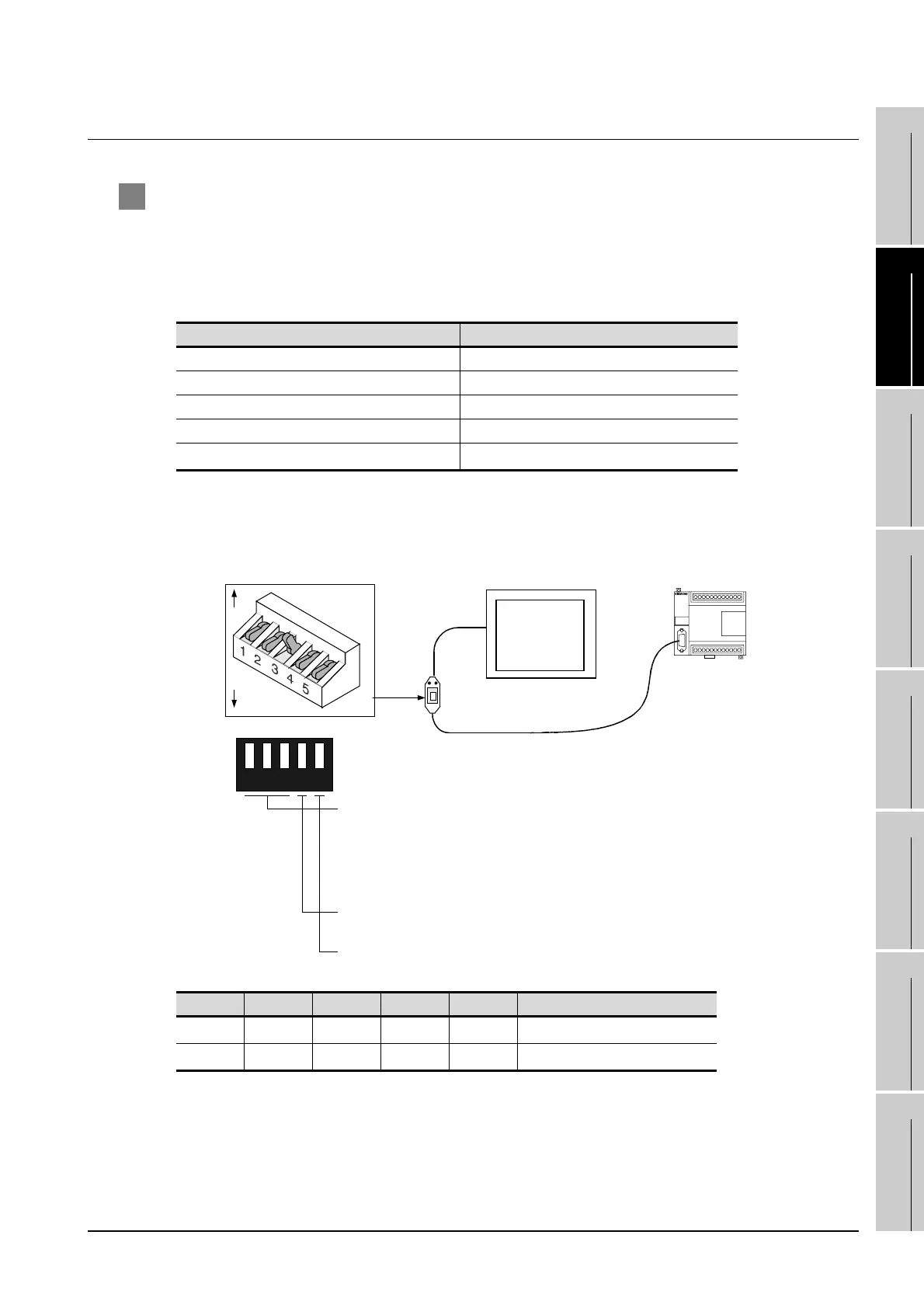

18.4.2 Connecting to SIMATIC S7-200
1 Communication settings
Set the communication settings of PLC and PC/PPI cable.
(1) PLC settings
Set the communication settings of PLC by operating the SIEMENS programing tool(STEP7-
WIN32).
*1 Adjust with GOT settings.
*2 Set the address without overlapping the address of other units.
(2) PC/PPI cable settings
Set the transmission speed by operating the DIP switch on the PC/PPI cable.
*1 Adjust with GOT settings.
Setting item PLC settings
Transmission speed*1 9600bps,19200bps
Data bit 8-bit(fixed)
Parity bit Even(fixed)
Stop bit 1-bit(ifixed)
Host address
*2
1 to 31
SWITCH1 SWITCH2 SWITCH3 SWITCH4 SWITCH5 Transmission speed
00000
19200bps
*1
00000
9600bps
*1
S7-200 CPU
RS-485
RS-232
PC/PPI cable
DIP switch(down side:0, upper side:1)
1
0
12345
1
0
SWITCH 123
SWITCH 4
SWITCH 5
