9 - 4

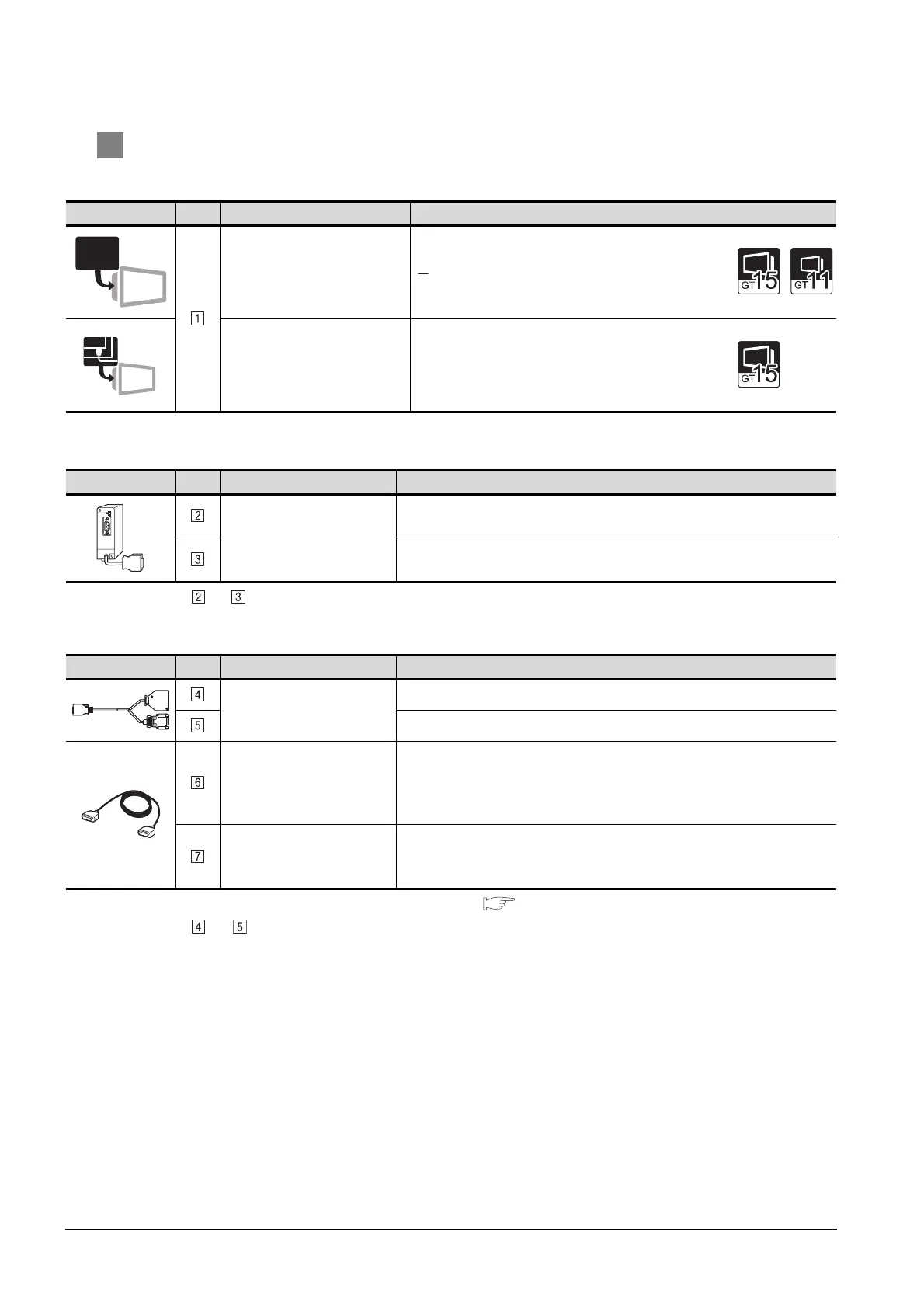

9.1 System Configuration
9.1.1 When connecting to CPM1, CPM1A, CPM2A or CPM2C
2 System equipment
(1) GOT
(2) PLC
and are products manufactured by OMRON. For details of these products, contact OMRON.
(3) Cable
*1 The RS-232 cable can be prepared by the user. ( Section 9.2 Connection Cable)
and are products manufactured by OMRON. For details of these products, contact OMRON.
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
Image No. Name Model name
RS-232C adapter
CPM1-CIF01
CPM2C-CIF01-V1
Image No. Name Model name
connection cable
• Between CPU and RS-232
cable
CQM1-CIF01
CPM2C-CN111
RS-232 cable 1)
*1
• Between CPU, RS-232C
adapter and connection
cable
GT09-C30R20101-9P(3m)
RS-232 cable 2)
*1
• Between connection cable
and GOT
GT09-C30R20102-25S(3m)
RS-232
RS-232
RS232C
CIF01
To Next Page
