5.3 PLC Side Setting
5.3.1 Connecting to MELSECNET/H network module
5.3 PLC Side Setting
5.3.1 Connecting to MELSECNET/H network module

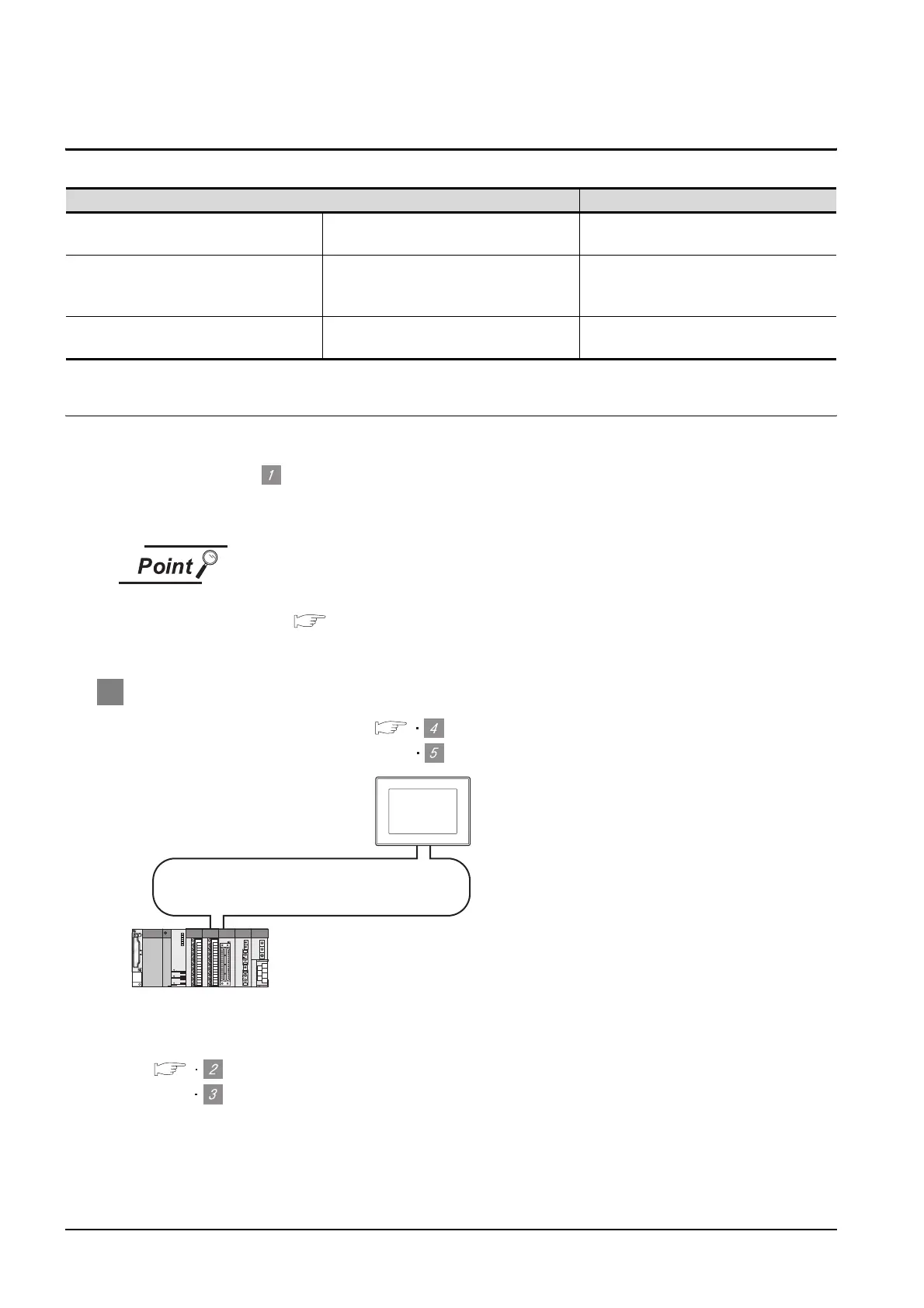

This section describes the settings of the GOT and MELSECNET/H network module in the case of system
configuration shown as .
To connect the MELSECNET/H network module to the MELSECNET/10 network system, specify the
MELSECNET/10 Mode as a network type.
MELSECNET/H network module
For details of the MELSECNET/H network module, refer to the following manual.
Q corresponding MELSECNET/H Network System Reference Manual
(PLC to PLC network)
1 System configuration
*1 The MELSECNET/H network module is mounted at slot 0 of the base unit.
The start I/O No. of the MELSECNET/H network module is set at "0".
Model name Reference
MELSECNET/H network module
QJ71LP21, QJ71LP21-25,
QJ71LP21S-25, QJ71BR11
Section 5.3.1
MELSECNET/10 network module (QnA Series)
AJ71QLP21, AJ71QLP21S,
AJ71QBR11, A1SJ71QLP21,
A1SJ71QLP21S, A1SJ71QBR11
Section 5.3.2
MELSECNET/10 network module (A Series)
AJ71LP21, AJ71BR11, A1SJ71LP21,
A1SJ71BR11
Section 5.3.3
<MELSECNET/H network module> *1 (Use the default value for settings other
than the following.)
Station No. : 1
Mode : Online (10Mbps)
Network type : MNET/10 mode (Control station)
Network No. : 1
Total stations : 2
Network range assignment: LB0000
H to LB00FFH
Switch setting of MELSECNET/H network module
[Network parameter] of GX Developer
[Communication settings] of GT Designer2
5
Setting of the MELSECNET/10 communication unit
MELSECNET/10 (PLC to PLC network)
<GOT> (Use the default value for settings other
than the following.)
Station No. : 2
Mode : Online
Network No. : 1
Network range assignment: LB0100
H
to LB01FF
H
LW0100H to LW01FFH
LW0000H to LW00FFH
