27.3 CC-Link Connection (Intelligent Device Station)
27.3.10 CNC Side Settings
27.3.10 CNC Side Settings
1 Parameter Setting
Set parameters related to CC-Link with MELSEC’s peripheral devices in the same way as parameter
setting of MELSEC CPU, and write them on CNC by PC. However, in the case of using the local
stations, it is not necessary to set the network parameters.
(1) Master station parameter
If you wish to place the master station in CNC and set the common parameters, set the network
parameters by peripheral device and write them on CNC. An example of parameter setting by
GPPW is as follows.
Set the first I/O No. as follows according to the expansion slot to which the unit is inserted.

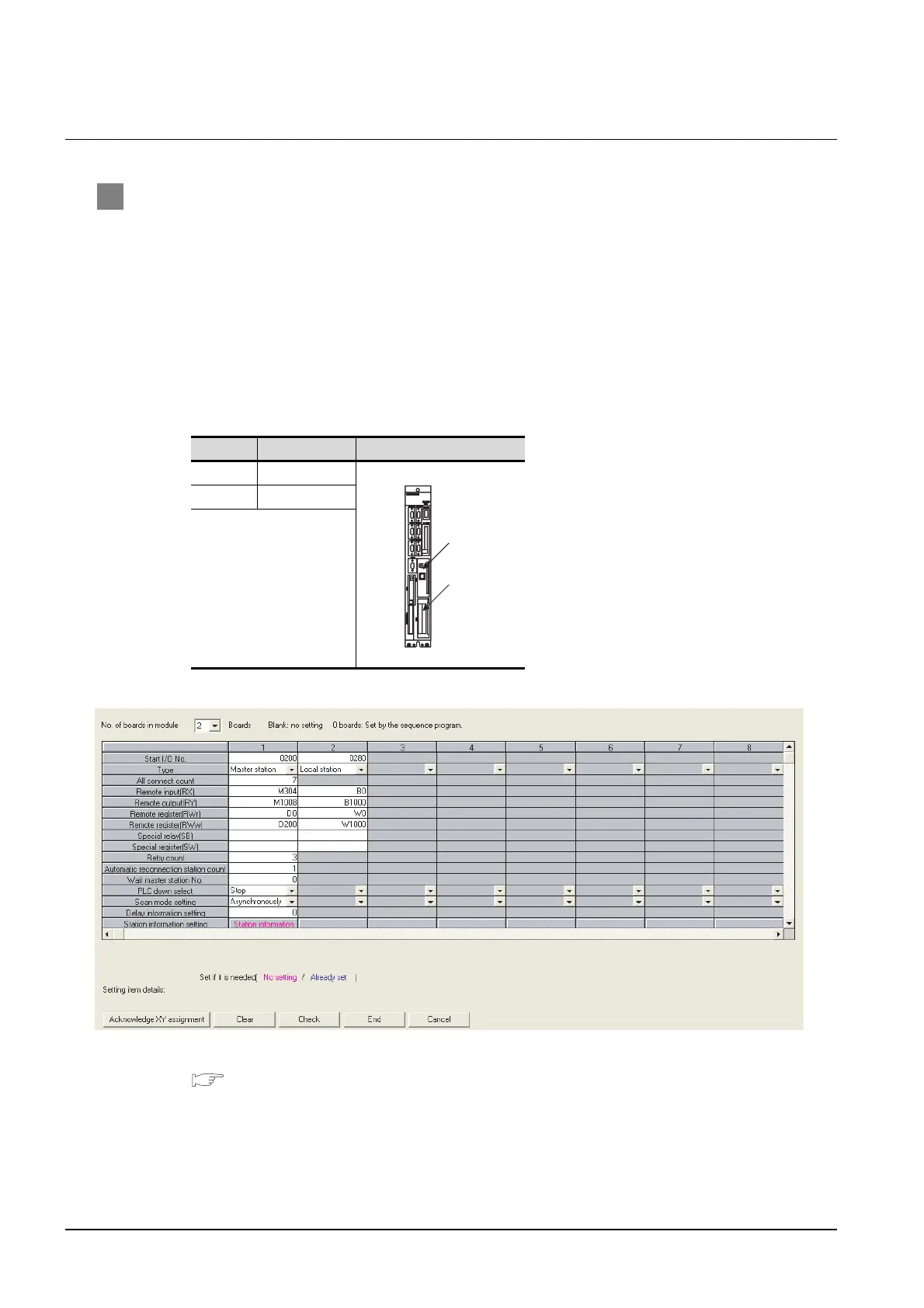

(a) Start I/O No.
(b) Example of GX Developer setting
For details of the parameter setting, refer to the following.
MELDAS C6/C64 NETWORK MANUAL BNP-B2373
Slot Start I/O No.
EXT1 0200
EXT2 0280
EXT1
EXT2
