9.4 PLC Side Setting
9.4.5 Connecting rack type host link unit
9 - 45
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC

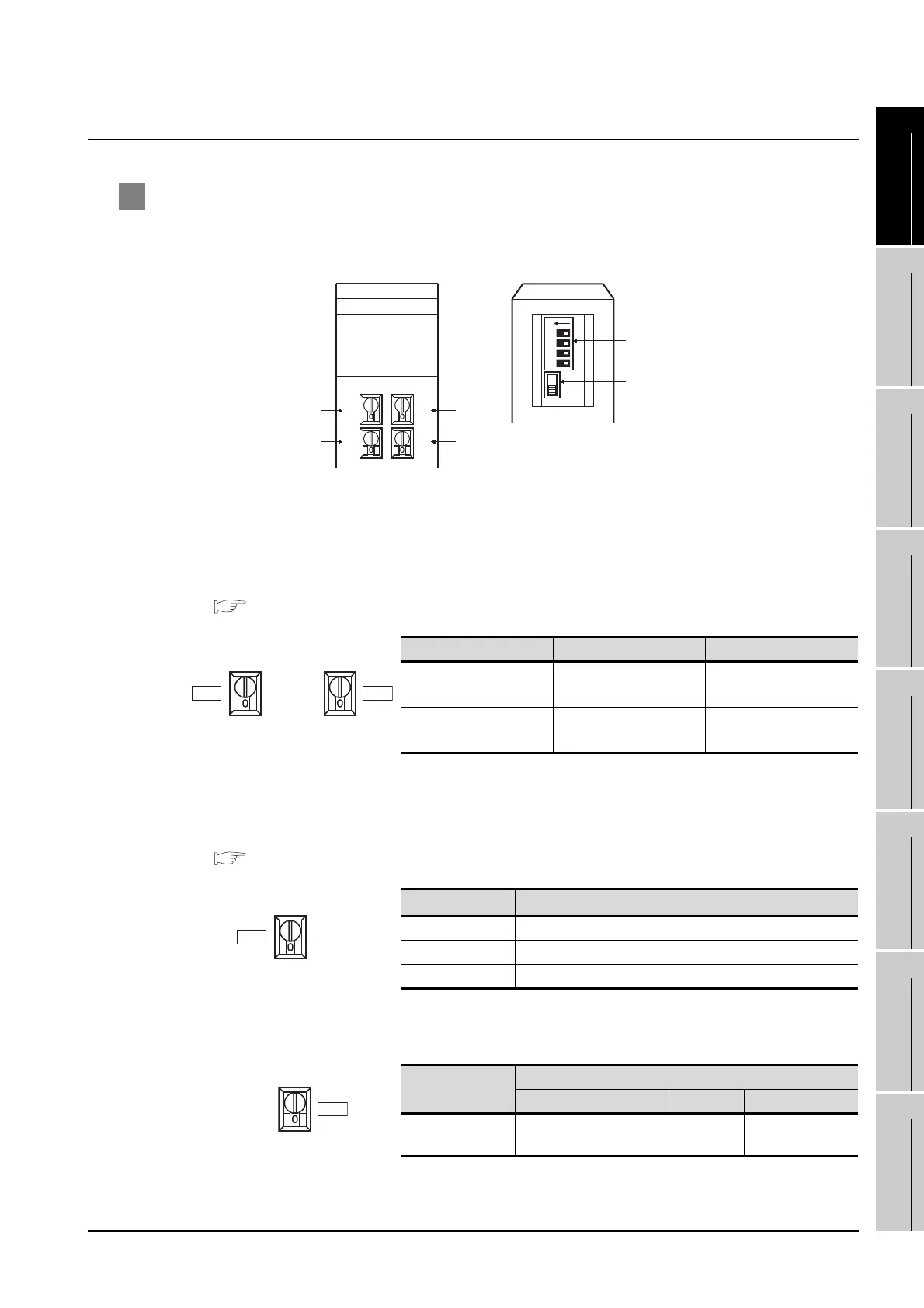

9.4.5 Connecting rack type host link unit
1 Switch setting on C200H-LK201-V1
Set the switches accordingly.
(1) Setting Machine No. (SW1, SW2)
Set the Machine No. within the range of 00 to 31 according to the Host Address setting on the GOT
side.
For the Host Address setting on the GOT side, refer to the following.
Section 9.3.3 Setting communication interface (Communication settings)
(2) Setting transmission speed (SW3)
Set the same transmission speed as that of the GOT side.
For the transmission speed setting on the GOT side, refer to the following.
Section 9.3.3 Setting communication interface (Communication settings)
*1 Only transmission speeds available on the GOT side are shown.
(3) Setting command level/ parity/ transmission code (SW4)
Rotary switch Description Setting
SW1
Machine No. upper digit
(x10
1
)
0 to 3
SW2
Machine No. lower digit
(x10
0
)
0 to 9
Setting
*1
Setting
4 4800bps
5 9600bps
6 19200bps
Setting
Setting details
Command level Parity Transmission code
2 (fixed) Levels 1, 2 and 3 enabled Even
ASCII 7 bits
2 stop bits
LK201-V1
RUN
RCV
XM
ERROR
SW1 SW2
SW3
SW4
Front Rear
1 2 3 4
ON
(4)
(1)
(3)
(5)
(1)
(2)
SW1
SW2
SW3
SW4
