Only position thejackonthe jacksupportpoints
intended forthis purpose. Youcouldotherwise
damagethe vehicle.
Important notesonusing thejack:
R
Onlyuse thevehicle-specificjackthat has
been tested and approvedbyMercedes-Benz
to raise thevehicle. If thejackisused incor‐
rectly,itcould tip over while thevehicle is
raised.
R
The jackisdesigned onlytoraise thevehicle
forashorttime whileawheelisbeing
changed and is notsuitable forcarrying out
maintenance work underthe vehicle.
R
Avoid changing awheel on uphill and downhill
slopes.
R
The jackmustbeplacedonafirm, flat and
non-slip surface. If necessary, use alarge,
flat, load bearing and non-slip underlay.
R
The base of thejackispositioned vertically
under thejacksupportpoint.
Safetyinstructionswhile thevehicle is raised:
R
Do notput your hands or feet underthe vehi‐
cle.
R
Do notlie underneaththe vehicle.
R
Do notstart theengine and do notrelease
theparking brake.
R
Do notopen or close anydoors.
Vehicles with rear wheel drive
Jack supportpoints
Only use themiddle rodand thepumpleverrod
withthe largestdiameterfor thejackasalug
wrenchextension. Only insert themiddle rodon
thelug wrench, and alwaysasfar as it will go.
Otherwise, therods could bend and deformso
muchthat they can no longer be usedaspump
levers forthe jack.
#

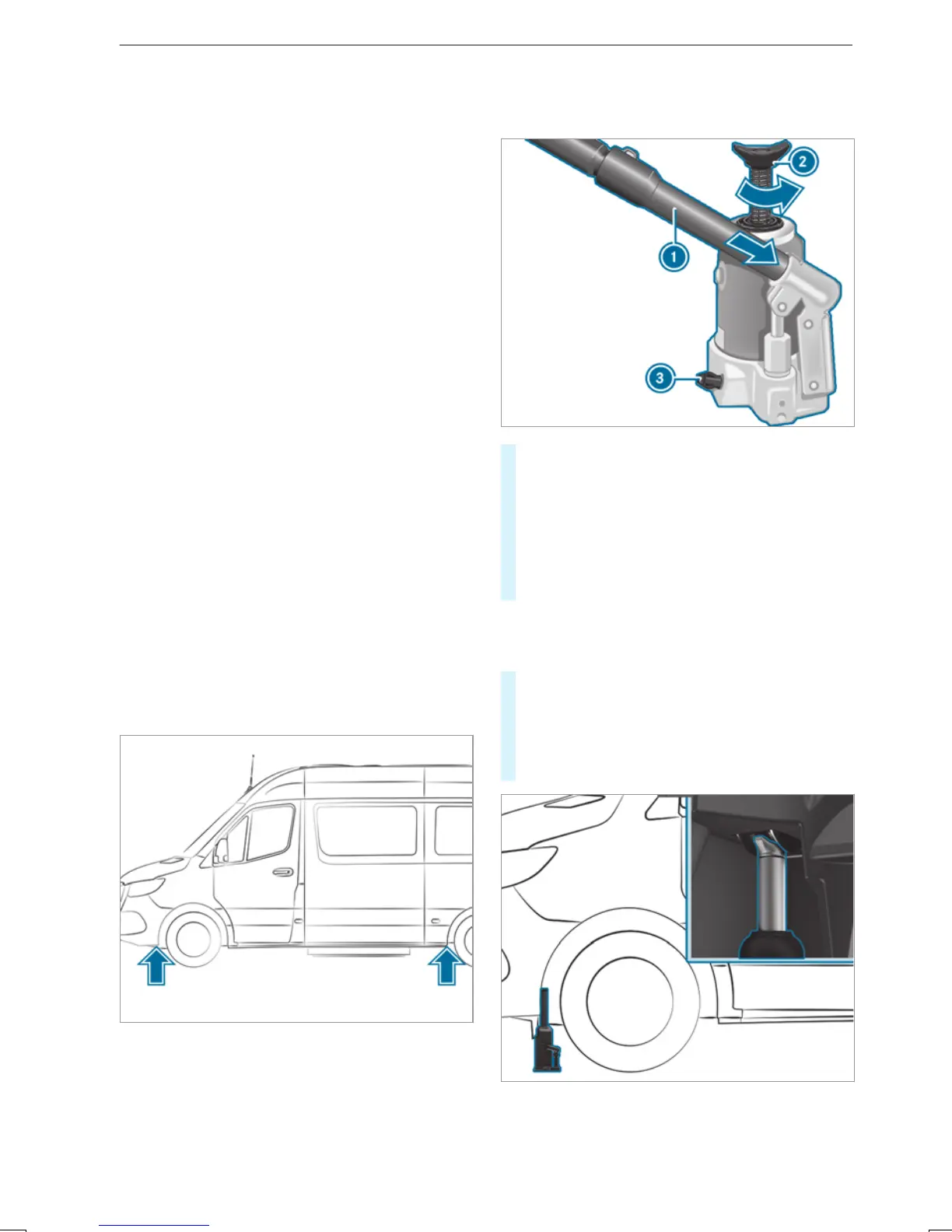

To preparethe hydraulicjack: insert the
thirdrod of pumplever 1 forthe jackinto
thelug wrenchextension.
#
Close pressurerelease screw 3.
#
To do this, use theflattened sectiononpump
lever 1 to turnpressurerelease screw 3
clockwise to thestop.
%
Do notturnpressurerelease screw 3 more
than one or twofull turns.Hydraulic fluid
couldotherwise escape.
#
Insertpumplever 1 withthe largestrod into
therecessonthe jackand securebyturning
it clockwise.
#
Place thejackverticallybeneaththe jacksup‐
portpoints described below.
Jacksupportpoint, front axle
314
Wheels and tires
