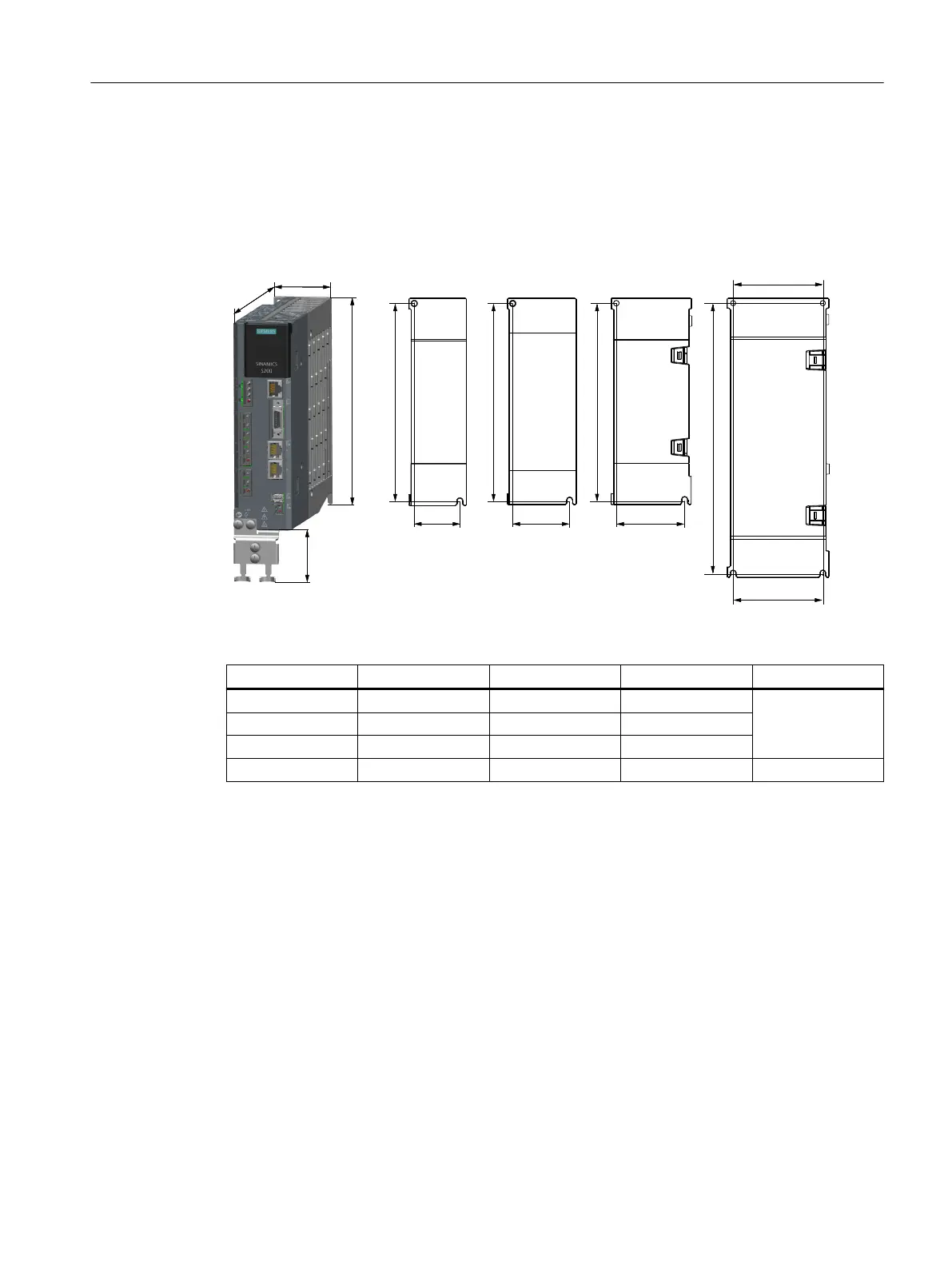

5.1.3.2 Dimension drawing and drilling dimensions for the 400 V converter
Dimension drawing
All dimensions are speci󹪝ed in millimeters.
:LGWK
'HSWK
+HLJKW




)6$)6%)6')6&


 

Table 5-2 Dimensions and mounting, 3AC400V, FSA...FSD, IP20
Frame size Width Height Depth Fixing
FSA 50 mm 180 mm 200 mm 2 x M4 / 2.5 Nm
FSB 60 mm 180 mm 200 mm
FSC 70 mm 180 mm 200 mm
FSD 95 mm 260 mm 230 mm 4 x M4 / 2.5 Nm
Mounting
5.1Converter
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 101
