10.4 Communication telegrams
10.4.1 Teleg
ram structure
Overview
Converter and higher-level control system exchange data via a 󹪝eldbus using telegrams.
Description of function
The converter receives data from the higher-level control cyclically and returns data to the
control cyclically.
6HQGGDWD5HFHLYHGDWD

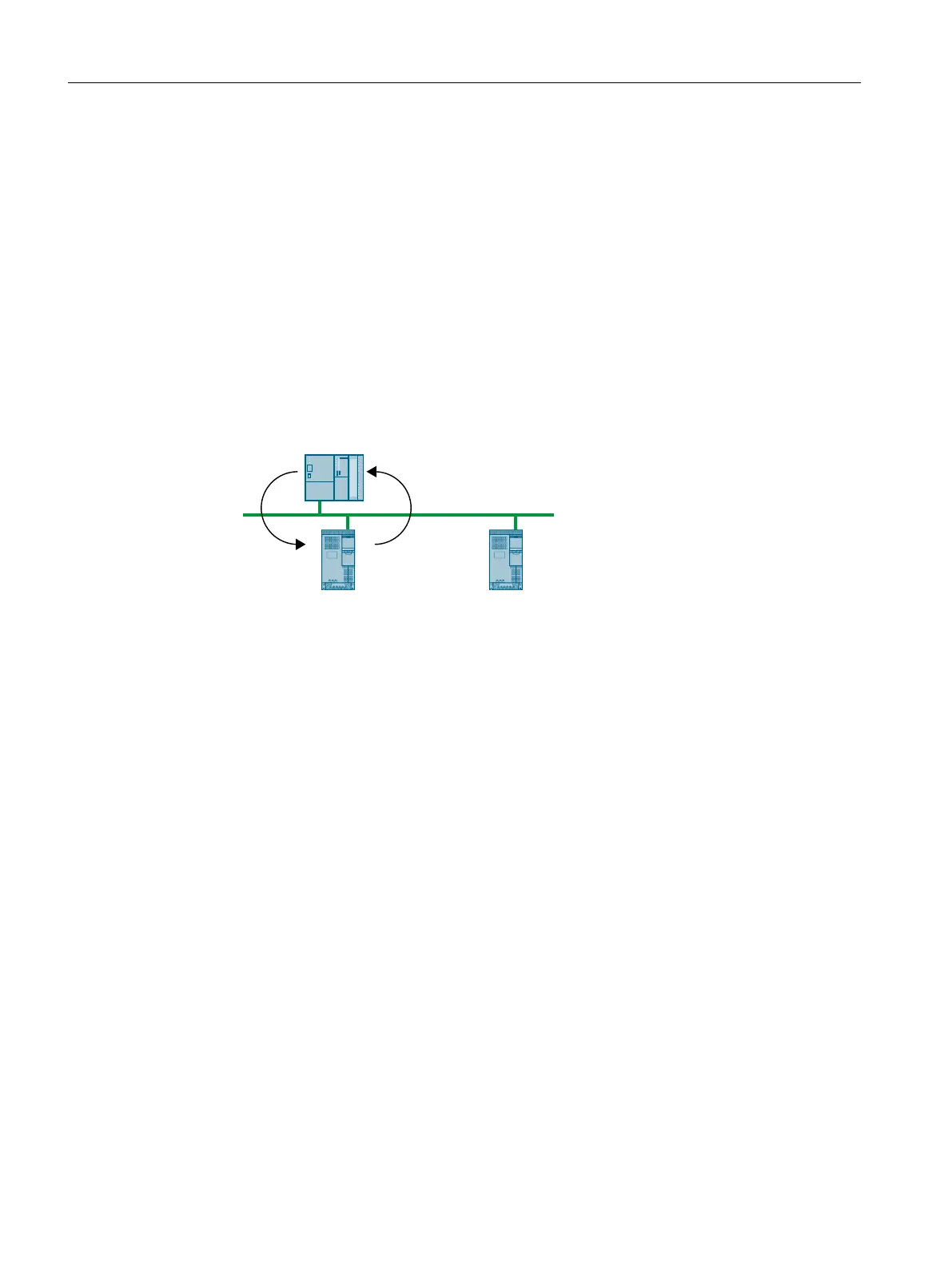

Figure10-3 Cyclic data exchange
Converter and higher-level control system package their data in telegrams.
Speci󹪝c telegr
ams are de󹪝ned for typical applications in the PROFIdrive pro󹪝le and are
provided with a 󹪝xed PROFIdrive telegram number. Behind every PROFIdrive telegram
number is thus a 󹪝xed composition of signals. This means that a telegram number provides
an unambiguous description of the cyclic data exchange.
Functions
10.4Communication telegrams
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
332 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
