Siemens SINAMICS SIMOTICS S200 PROFINET User Manual

6.2 Overview of the converter interfaces
Overvie
w diagram
















① M button ⑨ 6-digit display
② OK button ⑩ LED status indicators
③ DOWN button ⑪ SD card slot
④ 24 V DC power supply - X124 ⑫ Service interface (Ethernet) - X127
⑤ Mains and braking resistor interface - X1 ⑬ Control/status inputs and outputs - X130
⑥ Motor power interface - X2 ⑭ PROFINET interface - X150
⑦ Shield plate ⑮ Encoder interface - X120
⑧ STO interface - X131
1)
⑯ Motor holding brake interface - X108
1)
1)
The int
erfaces X131 and X108 are available on SINAMICS S200 PN.

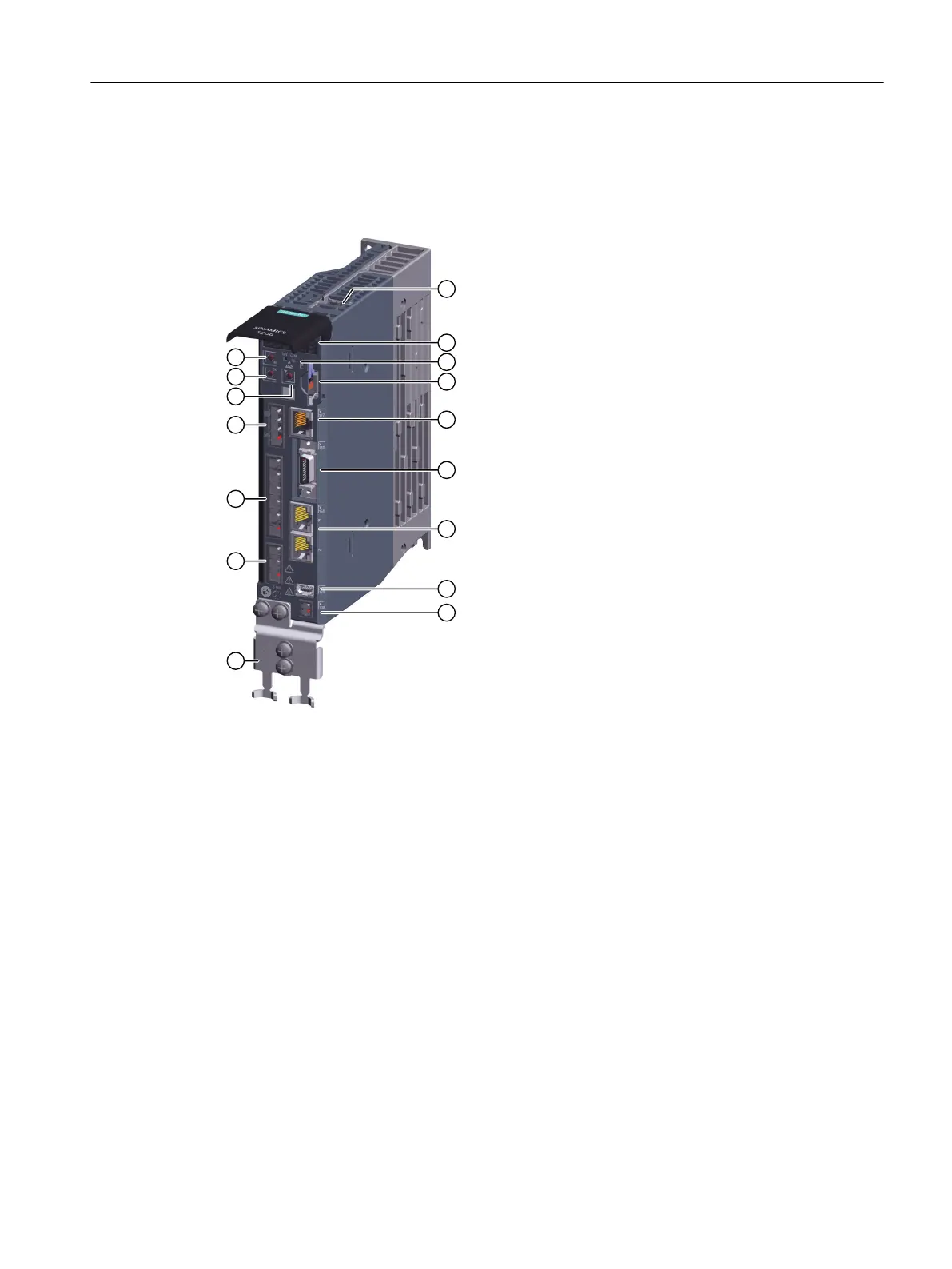

Figure6-2 Converter interfaces
Connecting
6.2Overview of the converter interfaces
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 129
