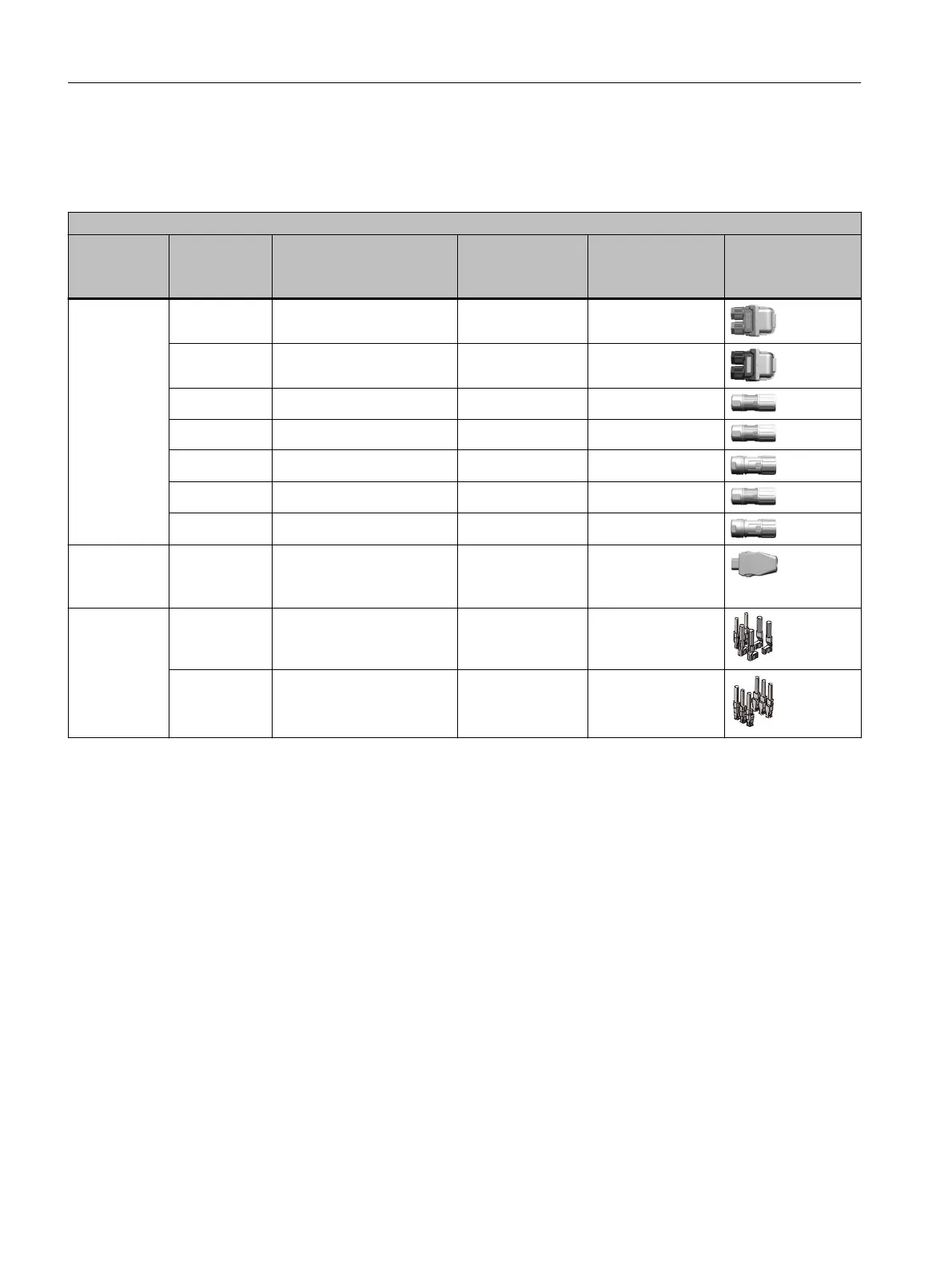

Table 3-7 Overview of connectors and crimp contacts
Cable connectors
 Article
number
6FX2003-
Description Connection type Quantity
per pac
kag
e
Illustration
Connector
(connected
to mo
tor)
3HD00 Hybrid plug (drive end) Crimping 5 pieces/pack
3HN00 Hybrid plug (non-drive end) Crimping 5 pieces/pack
0LL63 M17 circular connector Crimping 5 pieces/pack
0DB63 M17 circular connector Crimping 5 pieces/pack
0LL13 M23 circular connector Crimping 5 pieces/pack
0DB13 M17 circular connector Crimping 5 pieces/pack
0LL53 M23 circular connector Crimping 5 pieces/pack
Connector
(connected
to con
verter)
0DE61 IX-C connector Crimping 5 pieces/pack
Crimp
cont
act
7HP00
Hybr
id power contacts Crimping 2000 pieces/reel
7HS00 Hybrid signal contacts Crimping 2000 pieces/reel
More information
F
or mor
e inf
ormation about the MOTION-CONNECT cable article number explanation, see
Section "Article number explanation (Page55)".
For more information about assembling cables, see Section "Assembling cables (Page879)".
3.4.2.2 I/O cable and connector
Description
The cable is used to connect the converter to a controller for signal transmission on the interface
X130.
Description
3.4Accessories
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
62 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
