You can use the SDI Status panel for the following operations:
• Monitor
ing
The SINAMICS SDI Status enters the monitoring mode when the servo state changes from
OFF to ON. In this mode, it displays the actual speed, actual torque, actual position, actual DC
link voltage, and position following error. You can press the DOWN button to navigate to the
next item.
• Diagnosis
The SINAMICS SDI Status enters the diagnosis mode when a new fault, alarm, or safety
message appears. You can press the OK button to acknowledge the faults after eliminating
the causes.
You can press the M button to switch between the monitoring mode and the diagnosis mode.
• Converter restart
You can press the key combination of the M button and the OK button for four seconds to
restart the converter.
12.1.2 Status display via LEDs
Description

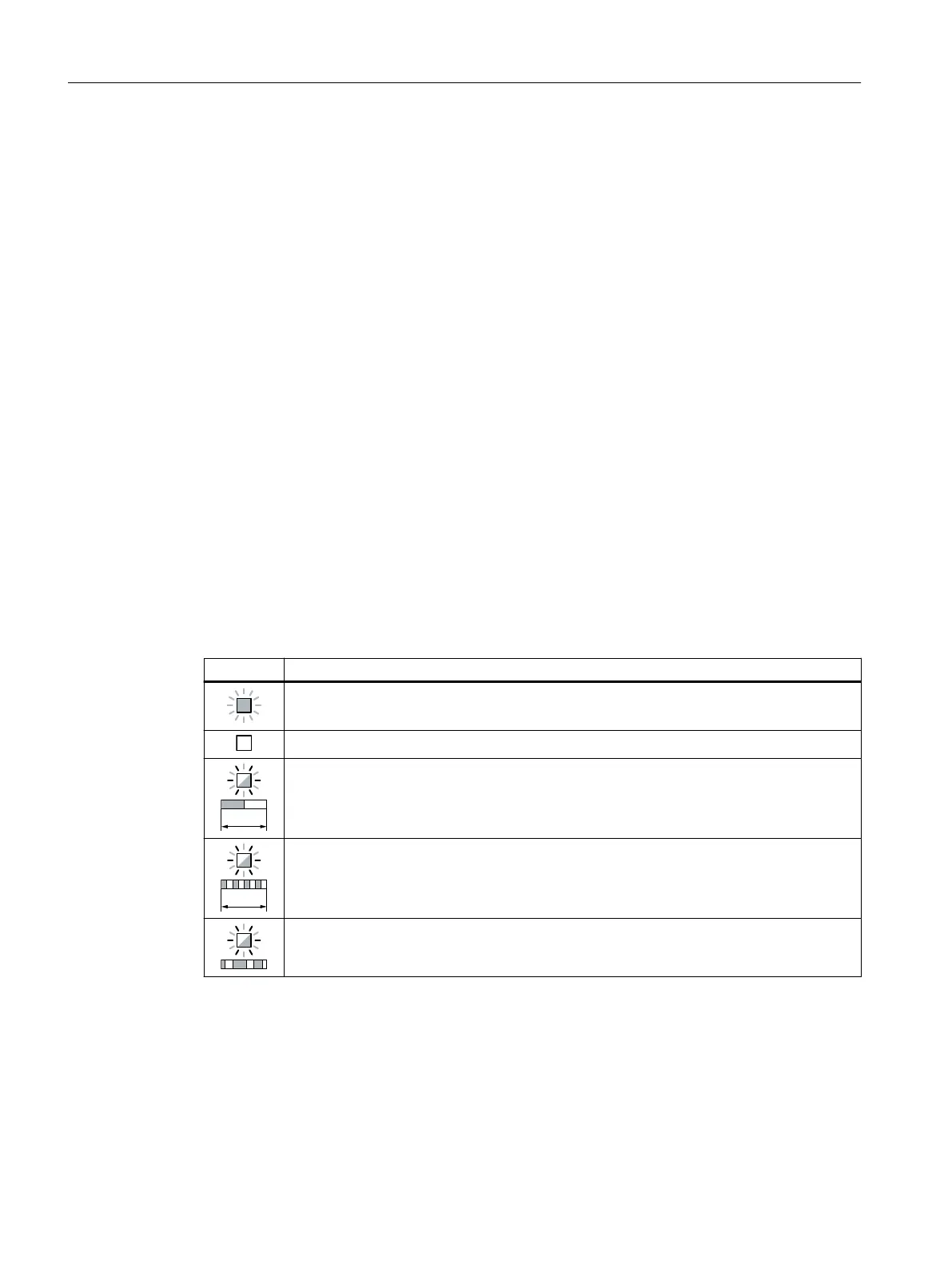

The following tables explain the LED icons and states:
Table 12-1 Explanation of LED icons
LED Explanation
LED is ON.
LED is OFF.
LED 󹪞ashes slowl
y.
LED 󹪞ashes quickl
y.
LED 󹪞ashes with var
iable frequency.
System messages
12.1î™ SDI Status
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
422 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
